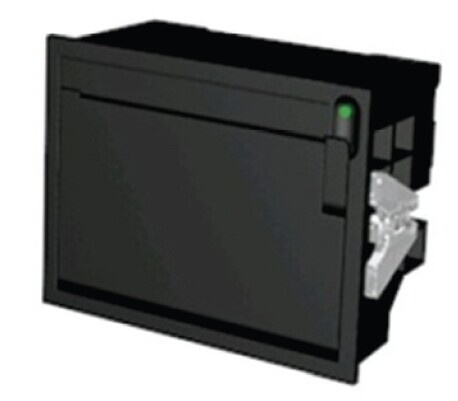

Panel Thermal Printer

Product Specifications

Prod Model:	WH-E33
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Printing Method:	Direct Thermal Line Printing
Paper Out Detection:	PE Sensors
Paper Loading Way:	Easy Paper Loading
Resolution Ratio:	8 Dots/Mm (384 Dots/Line)
Life Of Print Head:	50 Km
Print Speed:	60 Mm/Sec
Paper Supplied:	57mm Width, 30mm Diameter
Character:	6X8dots, 8X16dots, Or12X24dots
Outline Dimension(Wxhxd Mm):	58.8mm X 79.7mm X 45.8mm
Input Power:	DC 5V~8.5V,15W /DC 9V~24V,30W
Usage:	Receipt Printer
Style:	Black and White
Interface Type:	Serial Interface
Type:	Thermal
Max. Paper Size:	57mm

Product Description

Beijing Bright Technology Development Co, Ltd. Was established in 1998. It is a high technology manufacturer which is specialized in research, design, production and sales of Micro printers. The Headquarter is in Shangdi information industry base(Brilliant International), zhong guan cun Beijing, which is located in the key Science and Technology Park. We also have professional direct selling service network in Beijing, Shanghai, Hangzhou, Shenzhen, Guangzhou and other big cities in China. The production capacity of Micro printer is more than 500, 000 sets per year, and the flexible production capacity could be 1000, 000; Its overall business scale can rank the industry forefront and fully meet the growing demand for domestic and foreign customers.

WH-E33
Item	Specification
Printing method	Direct thermal line printing
Paper out detection	Paper end sensors function
Paper loading way	Easy paper loading
Paper width	57 mm
Print width	48 mm
Resolution ratio	8 dots/mm(384 dots/line)
life of printing head	50 km
Printing speed	60mm/sec (when the character ratio is 25%)
Character Size	6x8dots,8x16dots,or 12x24dots
Chinese character library	GB2312(16x16dots), GB2312(24x24dots)
Outline dimension(WxHxD mm)	58.8mm X 79.7mm X 45.8mm
Installation dimension(WxH mm)	(75.6mm+0.5) X (56.6mm+0.5)
Inlaid Deepness	43.8mm
Paper supplied	Thermal paper roll (57mm wide, 30mmø )
Interface	Serial RS-232C/TTL/485/Parallel interface
Input Power	DC 5V~8.5V,3A  /DC 9V~24V,30W
Operating temperature	5° C~ 50° C
Storage temperature	-20° C~ 60° C
Operating humidity	10% ~ 80%
Storage humidity	10% ~ 90%
