Product Specifications
| Prod Model: |
JQX-30F, T93 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe |
| Current: |
20A |
| Brand: |
Winston |
| Protect Feature: |
Sealed |
| Contact Load: |
High Power |
| Relay Size: |
32.4*27.5*27.8mm |
| Model: |
12V Mini Relay |
Product Description

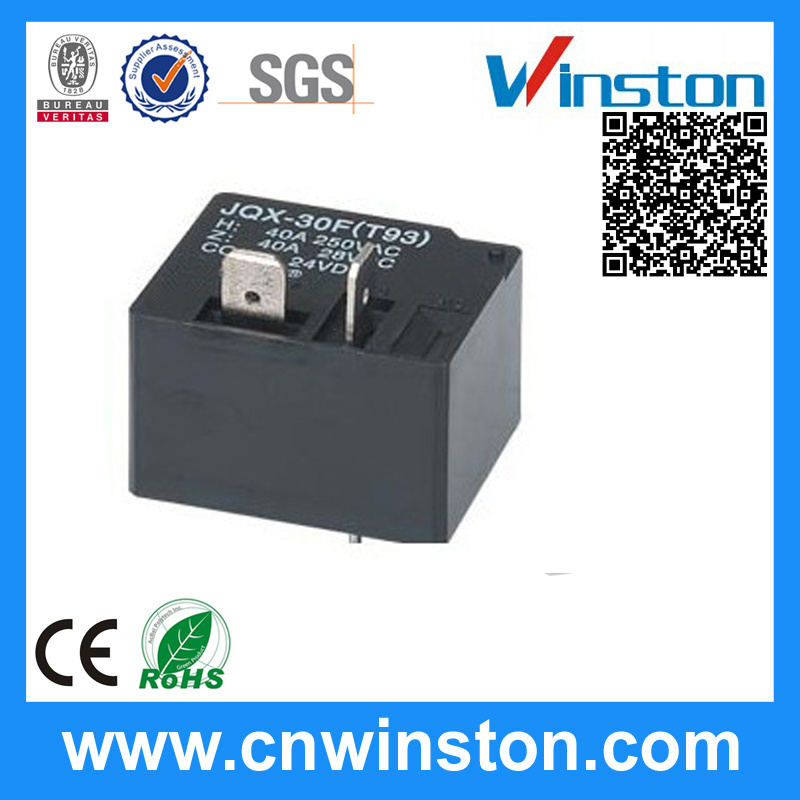

Model: JQX-30F(T93)
Specifications
1) Outline dimensions: 32.1*26.9*20.0mm
2) Contact data:
A) Contact arrangement: 1A 1C 1B
B) Material: Silver alloy
3) Max. Switching current: 25A 30A
4) Max. Switching voltage: 28V DC / 250V AC
Max. Switching power: 840W/7.5KVA
Rated load(Resistive): 20 30A/250VAC
5) Coil data:
A) Nominal voltage: 3-110VDC/6-240VDC
B) Pick-up voltage: DC ≤ 75% AC ≤ 80%
C) Drop-out voltage: DC ≤ 10% AC ≤ 30%
D) Coil power: 0.9W
6) Specifications data:
A) Contact resistance: ≤ 50mΩ
B) Insulation resistance: ≥ 100MΩ
C) Dielectric strength Vr. M. S:
I) Between open contacts: ≥ 1500VAC
Ii) Between coil and contacts: ≥ 2500VAC
Iii) Between contacts form: ≥ 2000VAC
D) Ambient temperature: -55 - +100oC
E) Operation/release time: ≤ 15/10ms
Coil Versions
Nominal Voltage VDC |
Pull-in Voltage
VDC |
Release Voltage
VDC |
Coil ResistanceΩ:±10% |
5 |
3.75 |
0.5 |
30 |
6 |
4.50 |
0.6 |
45 |
9 |
6.75 |
0.9 |
100 |
12 |
9.00 |
1.2 |
160 |
15 |
11.25 |
1.5 |
260 |
18 |
13.50 |
1.8 |
385 |
24 |
18.00 |
2.1 |
660 |
48 |
36.00 |
4.8 |
2560 |
70 |
52.50 |
7.0 |
5500 |
110 |
82.50 |
11 |
13450 |
