Product Specifications
| Prod Model: |
KF128G |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pitch: |
5.00mm,5.08mm |
| Environmental Protection: |
Resistance to Environmental |
| Shape: |
Rectangle |
| Application: |
Battery |
| Contact Termination Form: |
Welding Connection |
| Connection Mode: |
In-Line Connector |
Product Description

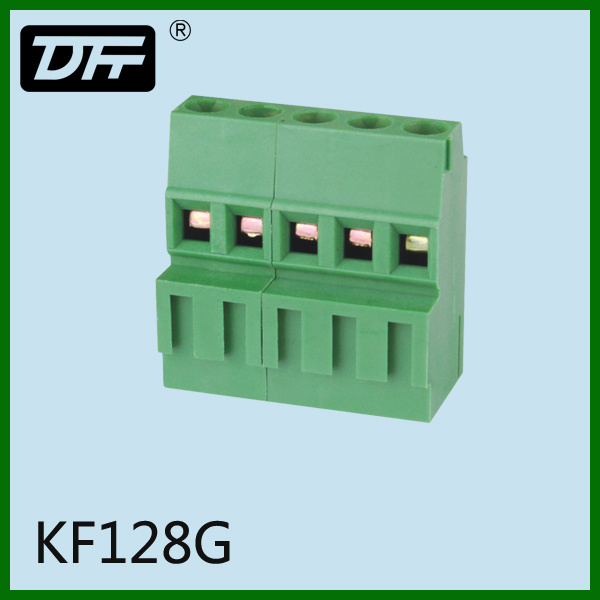

PCB Mount Terminal Blocks Connector
Pitch: 5.0mm, 5.08mm
MATERIAL
Screws: M2.5 steel Zinc plated
Contact: Brass
Pin header: Brass, Tin plated
Housing: PA66, UL94V-0
ELECTRICAL
Rated voltage: 300V
Rated current: 10A
Contact resistance: 20mΩ
Insulation resistance: 5000MΩ /1000V
Withstanding voltage: AC1500V/Min
Wire range: 24-12AWG 2.5mm²
MECHANICAL
Temp. Range: -40º C to +105º C
MAX Soldering: +250º C for 5 sec.
Torque: 0.4Nm(3.6lb. In)
Strip length: 6-7mm
KAIFENG ELECTRONICS was established in May 1988, major in manufacturing all kinds of electronic connectors.Its products apply in lots of apparatus in electron field.We have the innovation, mould manufacture, plastic injection, hardware process and installation departments, apply the advanced management and advanced process equipment, Meanwhile, we accept special requirements for OEM/ODM products.
After many years development, we have the better technology and full sorts.The products with high quality are sold to more than fifty countries.KAIFENG ELECTRONICS has been the most important provider of the electronic connectors in the Asia and the Pacific area.With the market, sticking in the idea of striving for perfection, we are going to bring in the many automatic technologies and equipments including CAD/CAM and Process Center.Thus, we can develop the multiple, innovative and market-leaded products.
