PCB Relay with CE (JQX-16F/T91)

Name: PCB Relay with CE (JQX-16F/T91)
Brand: China-Manufacturer-Directory.com
SKU: 672090592
Availability: InStock
Rating: 4.4 (125 reviews)

Supplier:	Yueqing Winston Electric Co., Ltd.
Price:	US $ 0.8-1.5/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	JQX-16F/T91
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe
Current:	20A
Brand:	Winston
Protect Feature:	Sealed
Contact Load:	: High Power

Product Description

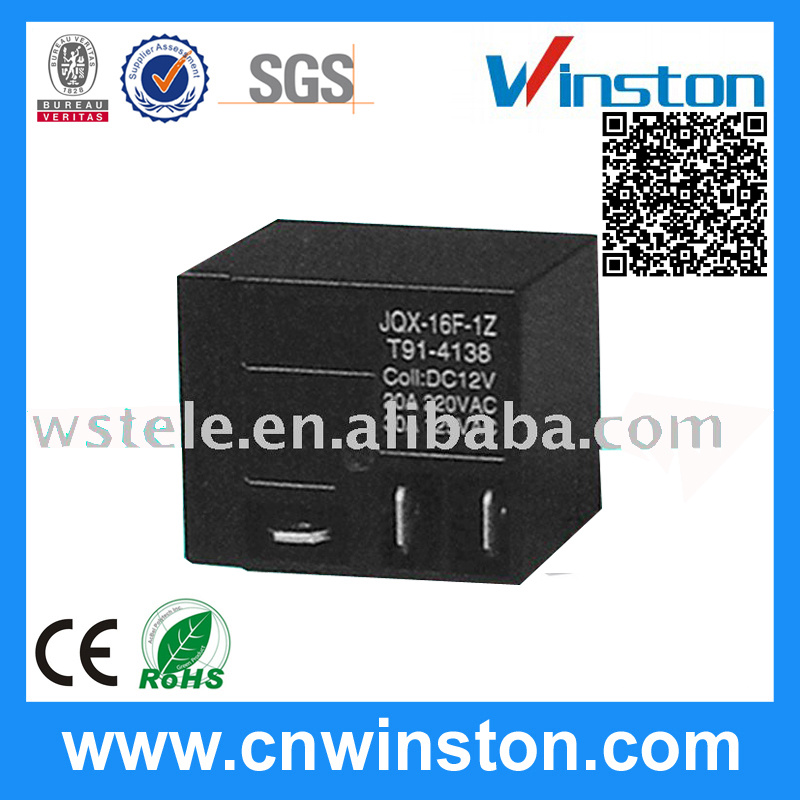

JQX-16F/T91 PCB relay

Relay, power relay
1. Outline dimensions: 32.4 x 27.5 x 27.8mm
2. Contact data:
3. Contact arrangement: 1H, 1D, 1Z
4. Materi
Features:
1) Outline dimensions: 32.4x 27.5 x 27.8mm
2) Contact data:
A) Contact arrangement: 1H, 1D, 1Z
B) Materials: Silver alloy
3) Max. Switching current: 30A
4) Max. Switching voltage: 28V DC / 250V AC
5) Max. Switching power: 560W / 5kVA
7) Coil data:
A) Nominal voltage: 3 - 220V DC / 6 - 380V AC
B) Pick-up voltage: AC≤ 80%, DC≤ 75%
C) Drop-out voltage: DC≥ 15%, AC≥ 30%
D) Coil power: 0.9W
8) Specifications data:
A) Contact resistance: ≤ 50MΩ
B) Insulation resistance: ≥ 1000MΩ
C) Dielectric strength Vr. M. S:
I) Between open contacts: ≥ 1, 500V AC
Ii) Between coil and contacts: ≥ 2, 000V AC
Iii) Between contacts form: ≥ 2, 000V AC
D) Ambient temperature: -55 - +100° C
E) Operation/release time: ≤ 15/10ms

Contact Ratings

Contact Ratings	1H		1D	1Z
Contact Resistance	50mΩ (1A 24VDC)
Contact capacity	7200VA/560W	3600VA/280W	4800VA/560W	2400VA/280W

Specification

Insulation Resistance	1000MΩ
Dielectric Strength	BCC 2500VAC 1minute
Dielectric Strength	BOC 1500VAC 1minute
Operate Time	15ms / 10ms
Terminal Type	PCB

Coil Ratings

Nominal Coil Power

DC:0.9W

Coil Versions

Nominal Voltage VDC	Pull-in Voltage VDC	Release Voltage VDC	Coil ResistanceΩ:±10%
5	3.75	0.5	30
6	4.50	0.6	45
9	6.75	0.9	100
12	9.00	1.2	160
15	11.25	1.5	260
18	13.50	1.8	385
24	18.00	2.1	660
48	36.00	4.8	2560
70	52.50	7.0	5500
110	82.50	11	13450
