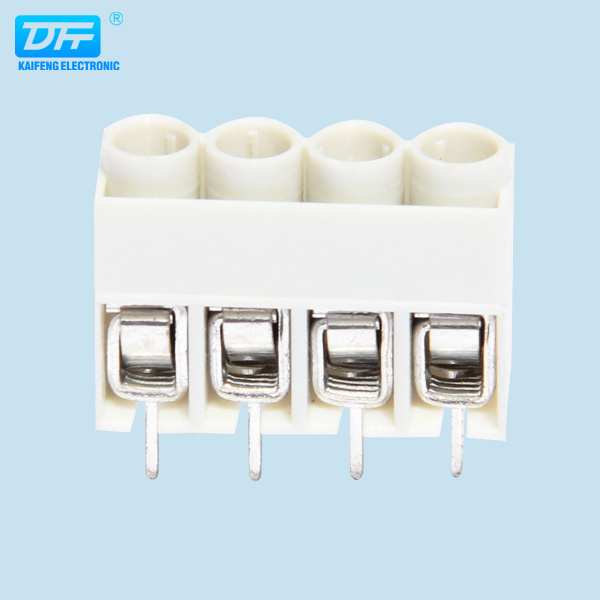

PCB Screw Rising Clamp Terminal Block Connector

Name: PCB Screw Rising Clamp Terminal Block Connector
Brand: China-Manufacturer-Directory.com
SKU: 606187084
Availability: InStock
Rating: 4.5 (20 reviews)

Supplier:	Kaifeng Electronic Co., Ltd.
Price:	Negotiable/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	KF167V
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pitch 5.00mm:	Screws M2.5 Steel Zinc Plated
Material:	PBT UL94V-0
Pin Header:	Brass,Tin Plated
Rated Voltage:	300V
Rated Current:	15A
Delivery Date:	About One Week
Environmental Protection:	Resistance to Environmental
Shape:	Rectangle
Application:	PCB

Product Description

Pitch:5.0mm
Material:
Screws:M2.5 steel Zinc plated
Wire guard:Phosphor bronze Ni plated
Or stainless steel
Pin header:Brass, Tin plated
Housing:PBT, UL94V-0

Electrical:
Rated voltage:300V
Rated current:15A
Contact resistance:20mΩ
Insulation resistance:5000MΩ/1000V
Withstanding voltage:AC1500V/1Min
Wire Range:22-12AWG 0.5-2.5mm²

Mechanical:
Temp Range:-40ºC~+105ºC
Max Soldering:+250ºC, for 5Sec.
Torque:0.4Nm(3.6lb.In)
Strip length:6-7mm

Part number	KF167V
Pitch	5.0mm
Material	PA66, UL94V-0
Rated voltage/current	300V/15A
Contact	Phosphor bronze
Wire range	22-12AWG 0.5-2.5mm²
Strip length	6-7mm.
Temp. Range	-40C~+105C
package	we packed in the standard cartons:282842cm,or as your requirement.
Payment	100% TT before shippment
