Plain Trolley Hoist

Name: Plain Trolley Hoist
Brand: China-Manufacturer-Directory.com
SKU: 766258315
Availability: InStock
Rating: 4.4 (37 reviews)

Supplier:	Ningbo Grandlifting Co., Ltd.
Price:	US $ 20.15/Piece
Min Order:	20/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	Plain Trolley Hoist
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Hand Chain:	3m
Capacity:	0.5t-20t
Application:	Small Crane
Power Source:	Hand Chain
Sling Type:	Chain
Certification:	ISO9001:2000
Maximum Lifting Height:	Depends
Color:	Customized

Product Description

Plain Trolley Hoist features:

Δ Adjustable to any beam width, simply by adjusting the number of collars.
Δ The wheels are made to fit any shape of beam
Δ High grade sealed ball bearings.
Δ With anti-drop plates.
Δ For gear trolley, the standard operating length is 3m, other length is available upon request.
GCT series push trolley:
The trolley mounted on a monorail permits horizontal travel by pulling manually on the load.Combined with a hoist or other lifting machine,it can be widely used in places such as factories,mines,docks and storehouses for equipment installation or transporting goods.

Item No.(I-beam:nomal)			ZHTH-P-0.5T	ZHTH-P-1T	ZHTH-P-1.5T	ZHTH-P-2T	ZHTH-P-3T	ZHTH-P-5T	ZHTH-P-7.5T	ZHTH-P-10T	ZHTH-P-15T	ZHTH-P-20T
Item No.(I-beam:long)			ZHTH-P-0.5T-L	ZHTH-P-1T-L	ZHTH-P-1.5T-L	ZHTH-P-2T-L	ZHTH-P-3T-L	ZHTH-P-5T-L	ZHTH-P-7.5T-L	ZHTH-P-10T-L	ZHTH-P-15T-L	ZHTH-P-20T-L
Capacity(t)			0.5	1	1.5	2	3	5	7.5	10	15	20
Running test load(kn)			7.35	14.71	22.06	29.42	44.13	61.29	98.06	122.58	196.12	245.17
Min.radius of curve(m)			0.85	1	1.1	1.1	1.3	1.4	2	2	3.5	3.5

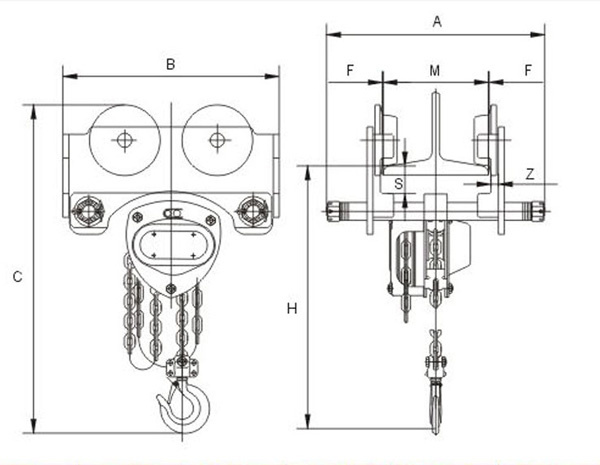

Dimension(mm)	A	a	236	303	310	317	333	355	372	378	449	449
	A	b	286	405	412	419	435	457	474	480	551	551
	B		258	292	319	358	434	448	628	636	757	887
	C min		385	451	489	551	629	758	916	965	1020	1200
	H min		299	331	383	411	460.5	585	760	780	910	965
	S		30	35	38	38	40	42	45	45	56	58
	Z		7.5	10.5	10.5	12	14	15	/	/	/	/
	F		1.5-3						2-3.5
I-Beam width range(mm)	M	a	50-152	64-203	74-203	88-203	100-203	114-203	124-203	124-203	136-203	136-203
I-Beam width range(mm)	M	b	50-203	64-305	74-305	88-305	100-305	114-305	124-305	124-305	136-305	136-305
Net weight(kg)	a		15.5	23.8	35.5	46	61.5	85.5	132	158	288	346
Net weight(kg)	b		17.5	25.8	37.5	48	65.5	90.5	138	165	296	354

Grandlifting is a professional manufacturer and exporter of lifting & lashing equipment, alloy chain and fittings, material handling equipment, etc.

Our company is certified by ISO9001: 2008, whilst most of our products are CE, TUV & GS certified. Our main products are: Ratchet tie down, webbing sling, chain hoist, lever block, push trolley, crance scale, hand winch, snatch block, grade 80 chain and fittings, rigging hardware, jack, wire rope, etc.

Our products are widely used in metallurgy, electric power, shipyard, sea port, oil-field, railway, machinery, auto, energy, aerospace, etc.

With rich experience of many years in exporting lifting products to more than 50 countries in Europe, America, Australia, Middle East, Southeast Asia, Africa, etc., we have now won a quite good reputation on lifting field from our customers all over the world for high quality, good service as well as extremely competitive prices.

We sincerely welcome enquires from all our new customers to establish long-term friendly business relationship with us!
