S Type Hand Chain Geared Trolley

Name: S Type Hand Chain Geared Trolley
Brand: China-Manufacturer-Directory.com
SKU: 766261445
Availability: InStock
Rating: 4.4 (90 reviews)

Supplier:	Ningbo Grandlifting Co., Ltd.
Price:	US $ 15.2/Piece
Min Order:	50/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	S Type Hand Chain Geared Trolley
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Chain:	Hand Chain
Capacity:	0.5-5t

Product Description

S Type Hand Chain Geared Trolley

1.S Type Hand Chain Geared Trolley
2.Capacity of push trolley: 0.5t to 5 T
3.Adjustable to any beam width, simply by adjusting the number of collars.
4.The wheels are made to fit any shape of beam
5. High grade sealed ball bearings

Item No.(I-beam:nomal)			ZHGT-S-0.5T	ZHGT-S-1T	ZHGT-S-2T	ZHGT-S-3T	ZHGT-S-5T
Item No.(I-beam:long)			ZHGT-S-0.5T-L	ZHGT-S-1T-L	ZHGT-S-2T-L	ZHGT-S-3T-L	ZHGT-S-5T-L
Capacity(t)			0.5	1	2	3	5
Running test load(kn)			7.35	14.71	29.42	44.13	61.29
Running height(m)			3	3	3	3	3
Chain pull to lift full load (Kn)			45	80	150	120	160
Min.radius of curve(m)			0.9	1	1.2	1.3	1.4

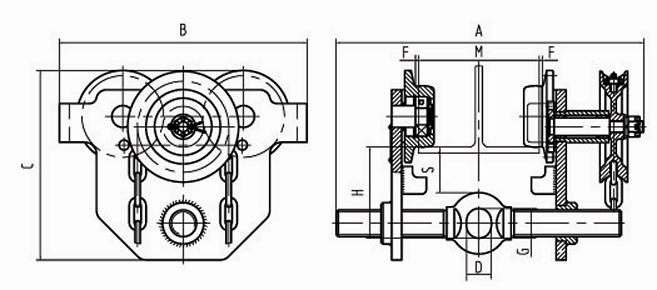

Dimension(mm)	A	a	292.5	302.5	319.5	354	365
	A	b	383	393	398	425.5	430.5
	B		225	252	300	360	400
	C		173	188	226	290	313
	H		74	90	106	121	136
	S		32	38	38	40	42
	D		25	30	40	46	52
	G		30	36	48	58	65
	F		1.5-3
I-Beam width range(mm)	M	normal	50-220	50-220	66-220	74-220	90-220
I-Beam width range(mm)	M	long	160-305	160-305	160-305	160-305	160-305
Net weight(kg)	a		9	13	15	27	40.5
Net weight(kg)	b		/	14	16	28.5	42.5

Grandlifting is a professional manufacturer and exporter of lifting & lashing equipment, alloy chain and fittings, material handling equipment, etc.

Our company is certified by ISO9001: 2008, whilst most of our products are CE, TUV & GS certified. Our main products are: Ratchet tie down, webbing sling, chain hoist, lever block, push trolley, crance scale, hand winch, snatch block, grade 80 chain and fittings, rigging hardware, jack, wire rope, etc.

Our products are widely used in metallurgy, electric power, shipyard, sea port, oil-field, railway, machinery, auto, energy, aerospace, etc.

With rich experience of many years in exporting lifting products to more than 50 countries in Europe, America, Australia, Middle East, Southeast Asia, Africa, etc., we have now won a quite good reputation on lifting field from our customers all over the world for high quality, good service as well as extremely competitive prices.

We sincerely welcome enquires from all our new customers to establish long-term friendly business relationship with us!
