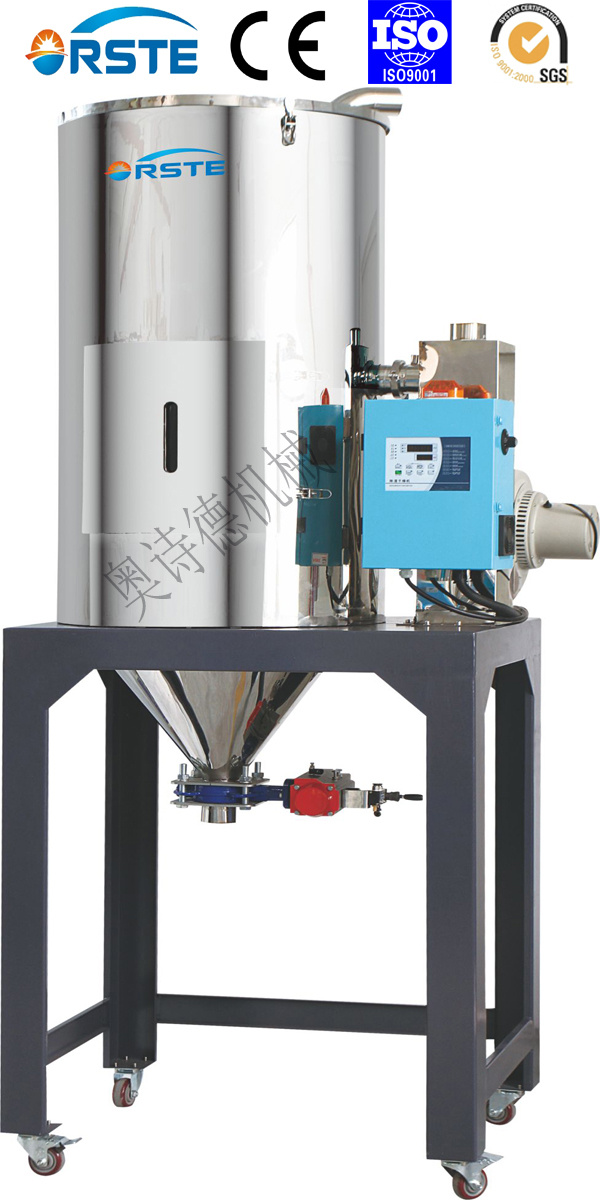

Plastic Drying Equipment Device Unit Hopper Dryer Machine
OHD - xxx - O
OHD: Orste Hopper Dryer
xxx: Hopper Capacity (L)
O: Optical
Product Features
1. The whole body of the hopper is made of stainless steel, and both inside and outside surface are specially polished.
2. Unique design, no dust, easy cleaning, it is specially applicable to production of optical and food grade product.
3. Unique filter screen at the air suction end in hopper can avoid blockage in air pipe caused by material.
4. Air filter at the blower is optional, no dust in dry air, thus greatly reduce defects rates.
5. Material window in hopper and base makes it convenient to observe the material usage.
6. Hopper wall is specially embedded with thicken insulating layer, together with down-blow hot air pipe design, the hot dry air is evenly sprayed and little will be lost. Drying efficiency is greatly improved.
7. Overheat protection device makes machine run safely and reliably.
8. Low energy consumption, environmental friendly.
Product Parameters/Specifications
| Model | Heater Power
(kw) | Blower
(kw) | Hopper Capacity
(L)/(kg) | Measurement (mm)
H*W*D | Floor Stand(mm)
H1*W1*D1 | Overall Height (mm)
H2 | Air Inlet Pipe
(inch) | Air Outlet Pipe
(inch) | Net Weight
(kg) |
| OHD-40-O | 2.5 | 0.12 | 40/25 | 760*790*394 | 790*450*550 | 1300 | 2.5 | 2 | 70 |
| OHD-80-O | 4 | 0.17 | 80/50 | 940*885*472 | 840*730*560 | 1480 | 2.5 | 2 | 85 |
| OHD-120-O | 4 | 0.17 | 120/75 | 1210*885*472 | 840*730*560 | 1740 | 2.5 | 2 | 100 |
| OHD-160-O | 6 | 0.2 | 160/100 | 1225*822*575 | 920*652*795 | 1825 | 2.5 | 2.5 | 90 |
| OHD-230-O | 6 | 0.2 | 230/150 | 1505*822*575 | 920*652*795 | 2105 | 2.5 | 2.5 | 100 |
| OHD-300-O | 12 | 0.25 | 300/200 | 1450*945*695 | 970*790*930 | 2085 | 3 | 2.5 | 130 |
| OHD-450-O | 12 | 0.25 | 450/300 | 1850*945*695 | 970*790*930 | 2435 | 4 | 3 | 160 |
| OHD-600-O | 18 | 0.25 | 600/400 | 1820*1170*915 | 1130*1000*1200 | 2470 | 4 | 3 | 200 |
| OHD-750-O | 18 | 0.55 | 750/490 | 2100*1170*915 | 1130*1000*1200 | 2780 | 4 | 3 | 220 |
| OHD-900-O | 18 | 0.55 | 900/585 | 2173*1410*1050 | 2760*1130*1130 | 2765 | 4 | 4 | 410 |
| OHD-1200-O | 24 | 1.1 | 1200/780 | 2598*1410*1050 | 3190*1145*1145 | 3190 | 4 | 4 | 560 |
| OHD-1500-O | 32 | 3 | 1500/975 | 3170*1640*1250 | 3470*1340*1340 | 3470 | 5 | 5 | 685 |
| OHD-2000-O | 32 | 3 | 2000/1300 | 3590*1542*1250 | 3870*1340*1340 | 3870 | 5 | 5 | 770 |
| OHD-2500-O | 58 | 5.5 | 2500/1625 | 3735*1798*1400 | 4000*1482*1482 | 4000 | 6 | 6 | 800 |
| OHD-3000-O | 58 | 5.5 | 3000/1950 | 4135*1798*1400 | 4400*1482*1482 | 4400 | 6 | 6 | 900 |
| OHD-3500-O | 64 | 7.5 | 3500/2280 | 4535*1798*1400 | 1800*1482*1482 | 4800 | 6 | 6 | 1010 |
| OHD-4000-O | 64 | 7.5 | 4000/2600 | 4370*2010*1600 | 4550*1680*1680 | 4635 | 8 | 8 | 1160 |
| OHD-5000-O | 80 | 11 | 5000/3250 | 4860*2010*1600 | 5150*1680*1680 | 5235 | 8 | 8 | 1390 |
| OHD-6000-O | 96 | 15 | 6000/3900 | 4600*2250*1800 | 4870*1930*1930 | 4923 | 8 | 8 | 1530 |
| OHD-7000-O | 112 | 18.5 | 7000/4550 | 5830*2250*1800 | 5370*1930*1930 | 6330 | 8 | 8 | 1735 |
| OHD-8000-O | 128 | 22 | 8000/5200 | 6030*2250*1800 | 5620*1930*1930 | 6425 | 10 | 10 | 1820 |
