Wuxi Poshstar Industry Co., Ltd. >> Plastic Injection Molding Machine (PS-650/5800M)

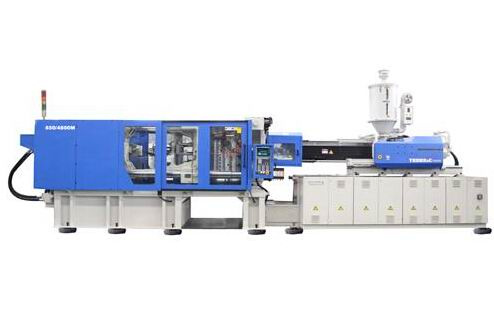

Plastic Injection Molding Machine (PS-650/5800M)

Name: Plastic Injection Molding Machine (PS-650/5800M)
Brand: china-manufacturer-directory.com
SKU: 677826561
Availability: InStock
Rating: 4.5 (61 reviews)

Supplier:	Wuxi Poshstar Industry Co., Ltd.
Price:	US $ 30000-45000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	PS-650/5800M
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Clamping Force:	6500kn
Type:	Preform Injection
Automation:	Automatic
Structure:	Horizontal
Computerized:	Computerized
Plastic Type:	Thermosetting
Plasticizing Way:	Plunger Type
Certification:	ISO9001:2008

Product Description

Guarantee : 1 year.

Installation:
We can send technician to install the machine or customer can send technician to our factory for training.
Buyer need to pay air thicket & food & hotels.

Remark:
(a) All specifications and designs are subject to change without notice.
(b) The price of the machine all are in US dollars based on FOB Shanghai.
(c) The price is base on 380V, 50Hz, 3 Phase, for special power, add additional 5% of all machine.

				PS-650/5800M
ITEMS				A		B		C
		Screw Diameter	mm	85		90		100
INECTION UNIT		Screw L/D Ratio	L/D	23.3		22		19.8
		Shot Size(Theoretical)	cm3	2684		3009		3715
	(Ps)	Injection Weight	g	2442		2738		3381
		Injection Pressure	MPa	218		194.4		157.5
		Injection Rate into Air	cm3/s	467.8	564.4	524.4	632.7	647.4	781.1
		Injection Stroke	mm	473
		Injection Speed	mm/s	82/100
	(ACC)	Injection Speed(ACC)	mm/s	295
		Screw Speed	rpm	100/121
		Clamping Force	KN	6500
CLAMPING UNIT		Clamping Stroke	mm	940
		Space Between Tie Bar	mm	920*920
		Max. Mold Height	mm	940
		Min. Mold Height	mm	400
		Eject Stroke	mm	260
		Eject Force	KN	182
		No. Of Ejector Pins	piece	21
		Max. Pump Pressure	MPa	17.5
OTHERS		Pump Motor Power	KW	61/74
		Heater Power	KW	54.9
		Hopper Capacity	L	100
		Oil Tank Capacity	L	1050
		Weight	t	26
