Plastic perforated corrugated packing
Plastic perforated corrugated packing is made of improved polypropylene and other material, and its performance is similar to the metallic perforated corrugated packing with the same dimension.
Meantime, it has the characteristc of corrosion resistance, low heaping density, high operation elasticity and non-distinctness in the amplificatory effect, suitable for application in strong acid and corrosive substance,
And widely used in the absorption and desorption process, gas purification, gas solution production, and recycle of waste heat. At the maximum temperature of 150 º C
Plastic Plate Corrugated Packing
The product is mainly used in separation of oil and water in oil field and refinery. There are handtailor ripple on the surface. The choice of packing is on the basis of manipulation condition.
Plastic plate corrugated packing has the advantage of light weight, mass transfer rate, low pressure drop, large specific surface area, easy change.
Plastic Corrugated Wire Gauze Packing
This product has good capability of chemical corruption-resistance. Becauce of its special fibre structure, it has goog wetting effect on organic liquor and water liquor.
The manipulation temperature is 80º C. It is mainly used in reflux absorption, like purifying exhaust gas.
|
Type |
Surface area
m 2 /m 3 |
Void fraction
% |
Bulk density
kg/m 3 |
Nt
m -1 |
P
Pa/m |
Max. F-factor
m/s. (kg/m 3 ) 0.5 |
Liquid load
m 3 /m 2. h |
|
SB-125Y |
125 |
98.5 |
37.5 |
1.0-2.0 |
200 |
3 |
0.2-100 |
|
125X |
0.8-0.9 |
140 |
3.5 |
|
SB-250Y |
250 |
97 |
75 |
2.0-2.5 |
300 |
2.6 |
|
250X |
1.5-2.0 |
180 |
2.8 |
|
SB-350Y |
350 |
95 |
105 |
3.5-4.0 |
200 |
2.0 |
|
350X |
2.3-2.8 |
130 |
2.2 |
|
SB-500Y |
500 |
93 |
150 |
4.0-4.5 |
300 |
1.8 |
|
500X |
2.8-3.2 |
180 |
2.0 |

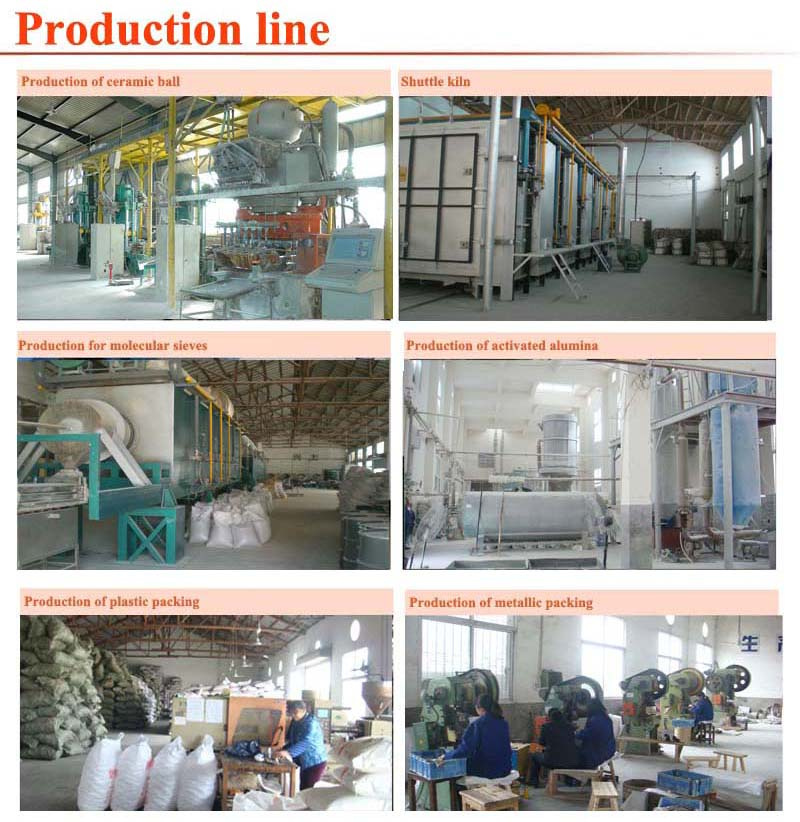

Pingxiang Global Chemical Packing Co., Ltd. (PGCP), is located in Gaokeng Industrial Park, Pingxiang, Jiangxi Province. It can produce ceramic, metallic and plastic tower packings, ceramic balls, molecular sieves, catalysts, activated alumina, petrochemical additives, activated carbons and filtering materials etc. Used in chemical and petrochemical industries.
