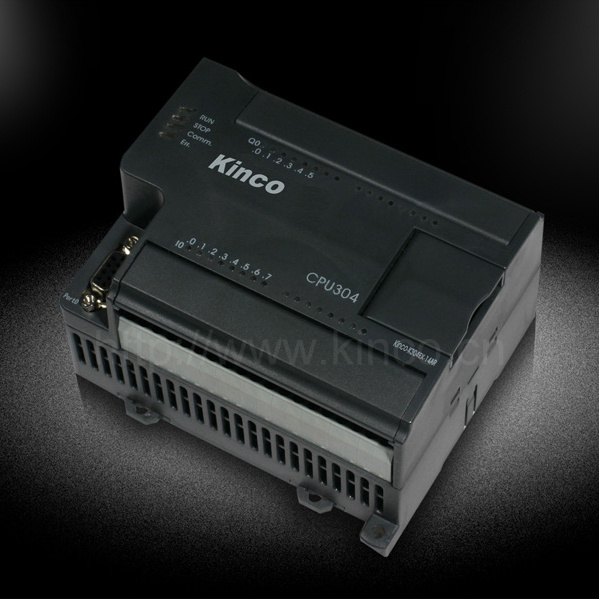

PLC CPU --CPU304EX

Name: PLC CPU --CPU304EX
Brand: china-manufacturer-directory.com
SKU: 663853815
Availability: InStock
Rating: 4.9 (102 reviews)

Supplier:	Kinco Electric (Shenzhen) Ltd.
Price:	Negotiable
Min Order:	1
Quantity::

Product Specifications

Prod Model:	CPU304EX
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

The Kinco PLC is unique and competitive in the PLC market. We are the first one in China to adopt IEC61131-3 standard in the configuration software design, laying a foundation for the openness of the programming software. We also integrate the characteristics of user-friendly programming environment with European software, and the characteristics of powerful functions with Japanese software in the design, so that the engineers can easily implement various automatic control and motion control by KINCO PLCs.

Our years' endeavors have produced or will soon produce series of products such as K2/K3/K5, which facilitate the implementation of both centralized and distributed control. Our controllers have been widely used on diversified machineries in various industries.

Technical Specification
Performance Indexes	CPU304EX
Performance Indexes	K304EX-14AR
CPU	16-bit industrial
Execution Speed	Typical Bool instruction time: <0.5 μS Word operation time: <48μS Arithmetic operation time for integers: <65μS Arithmetic operation time for floating points: <150μS
DI Points	8XDC24V
DO Points	6Xrelay
User Program Memory	FRAM, 8KB/about 1,200 steps
Program Backup	Permanent storage, without the need of battery
Memory Area	Variable storage area (V area): 4KB System storage area (SM area): 300 bytes Internal storage area (M area): 32 bytes
Data Retention Characteristic	Configure with the programming software: V area, C (counter) area
Retention Mode and Period	Adopt super capacitors and support a retention period of not less than 144 hours upon power failure under normal temperature.
Data Backup Characteristic	Perform backup operations VB3648~VB3902 according to user instructions, 255 bytes in total
Backup Mode and Time	FRAM, 255 bytes in total (writing operation for 10 billion times), permanent backup
Floating Points	Supported; the whole V area can be used for floating points
Programming Language Supported	Ladder Drawing (LD), Instruction List (IL)
Instruction Set	Basic instructions: 55; expansion instructions: 252
Password Protection	Yes
Max. I/O	Digital data: 78 in total (64 DI and 64 DO respectively); Analog data: 16 in total (16 AI and 16 AO respectively)
Counter	128
Operation Mode of Counter	Addition, subtraction
CounterRange	-32768~32767
Counting Value Retention Function	Yes
Timer	128 1 ms time base: 4 10 ms time base: 16 100 ms time base: 108
High-speed Counter	6 high-speed counters where, single-phase counters: 6, with a maximum frequency of 30 KHz where, dual-phase counters: 4, with a maximum frequency of 20 KHz
Pulse Output	2, PTO (Pulse Train Output)/PWM (Pulse Width Modulation output); Maximum output frequency: 20 KHz
Analog Potentiometer	2, 10-bit resolution, values corresponding to internal registers
Interruption Function	Timing interruption: 2, 1ms resolution; Timer interruption: T2/T3, 1ms resolution; Edge interruption: 4, rising edge or falling edge optional; High-speed interruption, communication interruption
Real-time Clock	Yes, with an error not greater than 2 minutes/month under a temperature of 25°C The user can use the software to set/read: year, month, day, hour, minute, second, week. Standby batteries are used to supply power for the real-time clock upon power failure. Under normal temperature, the accumulative retention period of the real-time clock upon power failure is up to 50,000 hours.
Number of Connectable Expansion Modules	4; regardless of types
COMPort	1, RS232 or RS485; Supported working modes: Programming, Modbus-RTU (slave), Free protocol
Equipment Connected with COM Port	RS232/RS485: PC (for programming), third-party HMI panel, third-party serial communication equipment (for example, instruments, bar code reader, etc.)
Input Power Supply	AC85~265V
Sensor Load Power Supply	DC24V, max. 500 mA
Dimensions (LWH)	125X114X70

Kinco Electric (Shenzhen) Ltd. (hereinafter called "Kinco") as a subsidiary of Kinco Automation (Shanghai) Ltd., are private high-tech enterprises specialized in the research, development, and production of automation products. Kinco controls such companies as eView HMltek (Shenzhen) Ltd., JAT KINCO Electric Shenzhen Ltd., and Beijing KDN Automation Co., Ltd., and owns two well-known brands of eView and Kinco. In addition, it has established production lines with proprietary intellectual property rights such as industrial human-machine interfaces, AC servo systems, and stepper systems, PLC and industrial fieldbus products. Kinco has become an outstanding representative of the automation control industry in China.
