Product Specifications
| Prod Model: |
MU |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

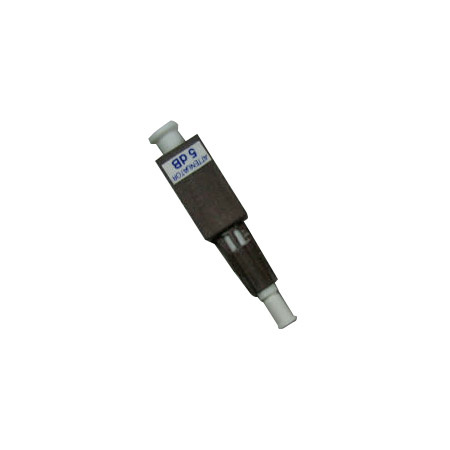

1310nm/1550nm SM MU Plug-Type Attenuator
The SZ NetCom SM MU plug-type attenuator is a compact male-to-female unit which provides a stable attenuation (from 1 to 30 dB) at both 1310nm and 1550nm transmission windows. These high performance attenuators are compliant with IEC 60869-1 and fully compatible with all MU connectors and adaptors.
Applications
- Passive optical networks
- Overpowered fiber optic systems
- Optical power receivers protection
- Multiwavelength systems balancing
- EDFA loop tests and measurements
Features
- Metal ion doped fiber
- Attenuation levels ranging from 1 dB to 30 dB
- Low back reflection
- High power endurance
- Maximum stability, reliability and flat spectral response
- 100% IL, RL and visual inspection tested
- Easy to connect/disconnect (Push-Pull)
- High mechanical resistance
|
Parameter |
Value |
Unit |
|
Operating Wavelength |
1310/1550 ± 10 |
nm |
|
Tolerance for 1~5 dB Attenuation |
± 0.5 |
dB |
|
Tolerance for 6~30 dB Attenuation |
± 10 |
% |
|
Return Loss |
> 50 |
dB |
|
Operating Temperature |
-40 to +75 |
C |
|
Polarization Dependent Loss |
≤ 0.1 |
dB |
|
Mating Durability |
≥ 1000 |
cycle |
