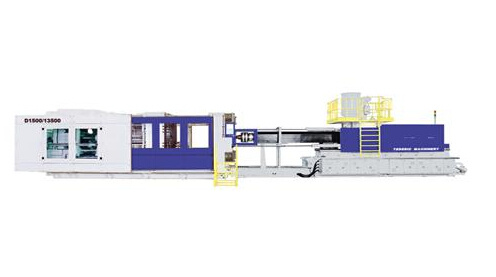

Polypropylene Injection Moulding Machinery

Name: Polypropylene Injection Moulding Machinery
Brand: china-manufacturer-directory.com
SKU: 748761405
Availability: InStock
Rating: 4.8 (121 reviews)

Supplier:	Wuxi Poshstar Industry Co., Ltd.
Price:	US $ 40000-50000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	PS-1500-13500
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Preform Injection
Structure:	Horizontal
Certification:	ISO9001:2008
Automation:	Automatic
Computerized:	Computerized

Product Description

Guarantee : 1 year.
Installation:
We can send technician to install the machine or customer can send technician to our factory for training.
Buyer need to pay air thicket & food & hotels.
Remark:
(a) All specifications and designs are subject to change without notice.
(b) The price of the machine all are in US dollars based on FOB Shanghai.
(c) The price is base on 380V, 50Hz, 3 Phase, for special power, add additional 5% of all machine.

				PS-1500/13500
ITEMS				A	B	C	D
		Screw Diameter	mm	120	130	140	150
INECTION		Screw L/D Ratio	L/D	23.8	22	20.4	19.1
UNIT		Shot Size(Theoretical)	cm 3	6775	7951	9221	10585
	( Ps )	Injection Weight	g	6165	7235	8391	9633
		Injection Pressure	MPa	195.6	166.6	143.7	125.2
		Injection Rate into Air	cm 3 /s	816	958	1111	1275
		Injection Stroke	mm	599
		Injection Speed	mm/s	72
		Screw Speed	rpm	88
		Clamping Force	KN	15000
CLAMPING UNIT		Clamping Stroke	mm	1520
		Space Between Tie Bar	mm	1460*1360
		Max. Mold Height	mm	1400
		Min. Mold Height	mm	650
		Eject Stroke	mm	350
		Eject Force	KN	283
		No. Of Ejector Pins	piece	25
		Max. Pump Pressure	MPa	16
OTHERS		Pump Motor Power	KW	105
		Heater Power	KW	84.7
		Hopper Capacity	L	200
		Oil Tank Capacity	L	2300
		Weight	t	69

WUXI POSHSTAR INDUSTRY Co., Ltd. is established in 2003, succeeding blow moulding techniques & experiences accumulated many years by our engineers and technicians in this field.

We have been able to carve a niche in the industry due to the unstinting support of our industrious team; In other words, our team is the backbone of our organization. Our professionals possess vast experience, expertise and extensive knowledge in their respective domain which allows them to utilize their skill and talent wisely. We also can provide all the necessary facilities to our workforce in order make the latest and most advanced technology available to them. We have appointed the following professionals as a part of our team:

(1)Designers

(2)Quality Analysts

(3)Skilled Craftsmen

(4)Machine Operators

(5)Packaging Experts

(6)Sales and Marketing Professionals

Looking forward to cooperating with you in future.
