WMT CNC INDUSTRIAL CO., LTD. >> Portable Boring Machine Jrt40

Portable Boring Machine Jrt40

Name: Portable Boring Machine Jrt40
Brand: China-Manufacturer-Directory.com
SKU: 771563115
Availability: InStock
Rating: 4.4 (113 reviews)

Supplier:	WMT CNC INDUSTRIAL CO., LTD.
Price:	US $ 1200-5000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

Prod Model:	JRT40
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	Construction Machinery
Portable Boring Machine:	High Quality Low Cost
Working Line 1:	Ship Industrial
Working Line 2:	Offshore Oil Production
Working Line 3:	Wind Power
Working Line 4:	Steel Industrial
Working Line 5:	Hydro Elctric Power
Working Line 6:	Petrochemical
Precision:	Precision
Automatic Grade:	Semiautomatic
Structure:	Portable Boring Machine
Coordinate Boring Machine Type:	Portable Boring Machine
Controlling Mode:	Electrical

Product Description

Features:

Working area 1	ship industrial
Working area 2	offshore oil production
Working area 3	wind power
Working area 4	steel industrial
Working area 5	hydro elctric power
Working area 6	petrochemical

Explosure drawing for machine JRT40:

Item	JRT40	JRT60	JRT90
Boring bar dia.and length	dia.40X1500mm	dia.60X2000mm	dia.90X2000mm
Boring dia.range	dia.45-200mm	dia.65-360mm	dia.100-400mm
Facing dia.	dia. 50-260	dai.70-400,dai.300-700	dai.100-450mm ,dia.300-1000mm
Power unit	1.2KW	Servo motor 1.5KW	Hydraulic motor or servo motor 3kw
Boring bar rotate speed variable	0-87rpm	0-70rpm	0-57rpm
Axial feed per revolution variable	0-0.6mm/r	0.05-0.43mm/r	0-0.6mm/r
Axial feed travel	390mm	500mm	500mm
Machining hole face roughness	RA3.2	RA1.6	RA1.6
Machining hole roundness tolerance	≤0.04mm	≤0.04mm	≤0.05mm

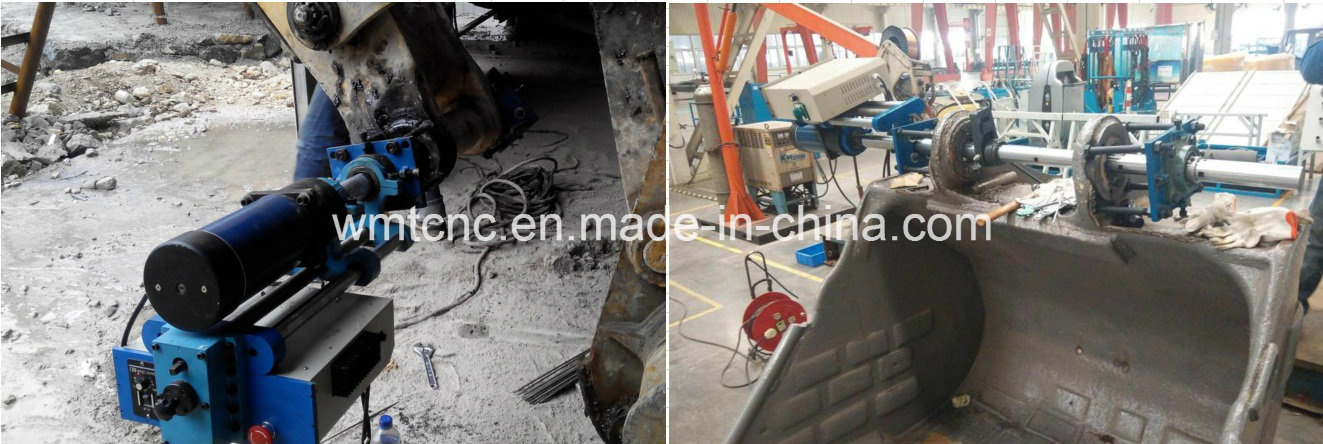

Working pics. for portable boring machine

Standard accessories:

Item	Qty
Boring bar(length of 1500mm)	1 pcs
bearing support assembly (bearing contained)	2 set
bearing support assembly for facer(bearing contained)	2 set
Main body	1 pcs
Facer	1 set
Bolts for welding(nuts contained)	16 pcs
Tapered positioning block (Nylon)	4 pcs
Tool holder	3 pcs
Cutter tools	2 pcs
Other tools	1 set
Operating manual	1 pcs

You may like other models:

We also have bigger one, such as with longer boring legth, longer feed travel,bigger boring diameter.

Send us such requirement and we all could meet.

Welcome to contact with us!
Tel: 0086 566 2091958
Fax: 0086 566 2091968
