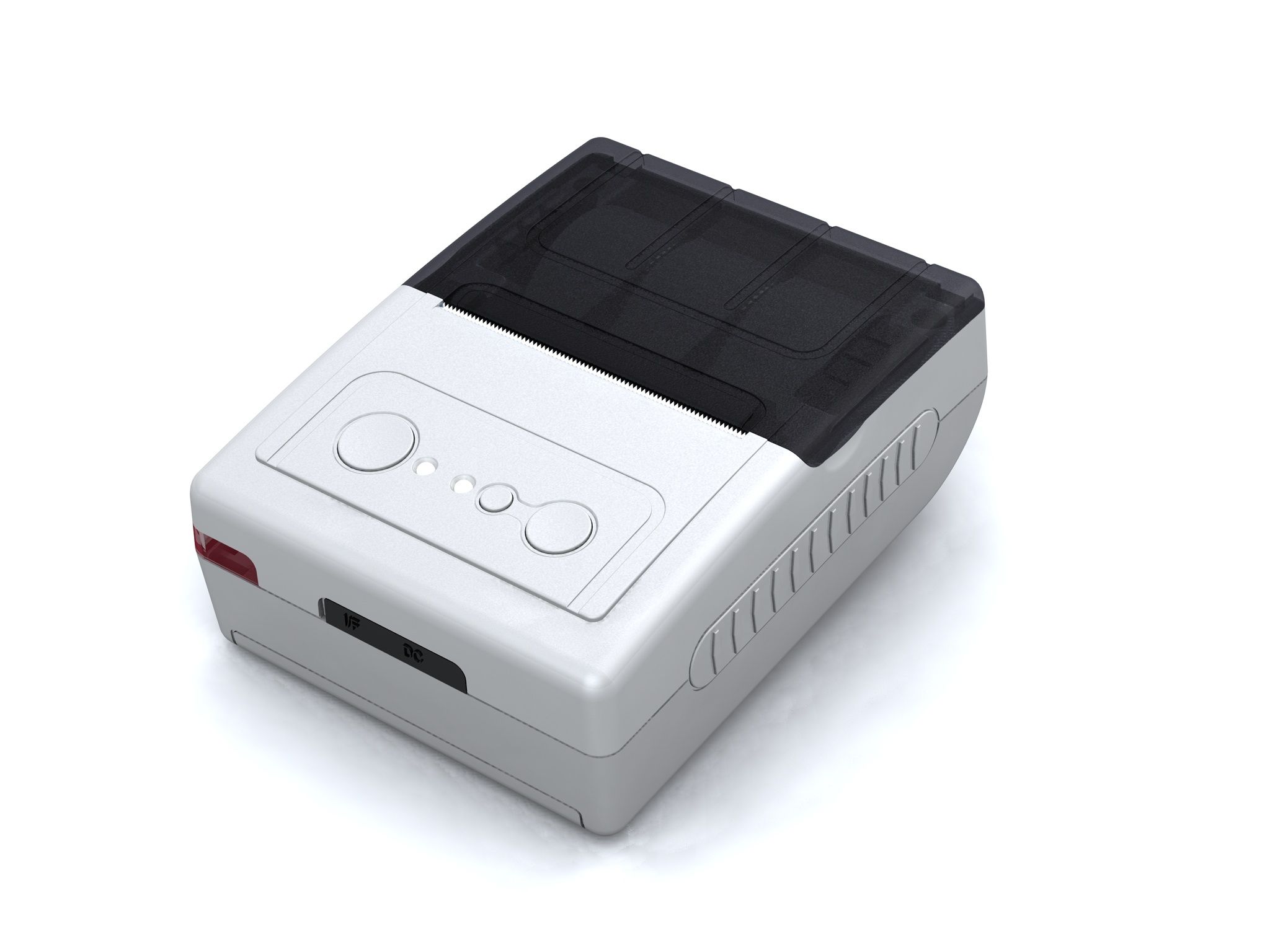

Product Specifications
| Prod Model: |
WH T5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Receipt Printer |
| Style: |
Black and White |
| Type: |
Thermal |
| Interface Type: |
RS232/Ttl,Parallel,USB |
| Max. Paper Size: |
80mm*40mm |
Product Description
Thermal portable printer / Portable printer / Bluetooth interface printer / IrDa interface printer / USB interface printer / Serial interface printer 58mm / 80mm paper width
| Direct thermal line printing |
| Stylish, delicate and elegant appearance |
| Serial / USB, Bluetooth / WIFI, IrDA |
| copy function of LCD screen |
| Abundant figure/curves/characters print function |
| plot rotation printing for expanded letter character set |
| Item | Specification |
| Printing method | Direct thermal line printing |
| Paper width | 57 mm/80mm |
| Print width | 48 mm/71mm |
| resolution ration | 8 dots/mm (384dots/line and 576 dots/ line ) |
| Life of printing head | 50km |
| Printing speed | 60mm/sec |
| Charger | Input AC 100-240V, 1.0A Output DC8.4V, 1.2A |
| Battery | Output DC7.4V (8.4V-6.8V), 1800MAH |
| Charging time | 2.5 hours |
| Battery life | 500times |
| Paper roll | Thermal roll paper ( 57mm / 80mm wide, 40 ø ) |
| Outline Dimension T5 | 111.5mm x 84mm x47mm |
| Outline Dimension T6 | 111.5mm x 106mm x 47mm |
| Interface | Serial / USB, Bluetooth / WIFI, IrDA |
| Temperature | Printer-10° C - 50° C ( 14° F - 104° F ) |
| Temperature | Battery 0° C – 40° C (32° F - 104° F ) |
| Humidity | Printer 10% - 90 % RH |
| Humidity | Battery 20% - 70% RH |
| Printer weight | M01 / M02 0.175kg/ 0.215kg |
| Battery weight | 0.100kg |
Beijing Bright Technology Development Co., Ltd is a leading manufacturer of mini printers for over 16 years. The Company is a high technology firm which was established in 1998, and specializes in research, design, manufacture and sales of mini printers and interrelated products. Now we have many professional direct selling service network in Beijing, Shanghai, Hangzhou, Shenzhen, Guangzhou and other big cities in China.
