Power Supply Distribution Three Phase Transformers (S13)

Name: Power Supply Distribution Three Phase Transformers (S13)
Brand: china-manufacturer-directory.com
SKU: 698052662
Availability: InStock
Rating: 4.8 (137 reviews)

Supplier:	Shengguang Wire and Cable Factory
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	S13
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Products Name:	Power Supply Transformers
Model:	S13
Rated Frequency:	50Hz or 60Hz
Cooling:	Onan or Onaf
Installation:	Outdoor or Indoor
Voltage:	10-35kv
Application:	Audio
Phase:	Three
Coil:	Core-type Transformer
Cooling Method:	Oil-immersed Type Transformer
Winding Type:	Toroidal
Certification:	GB
Brand:	Yutte

Product Description

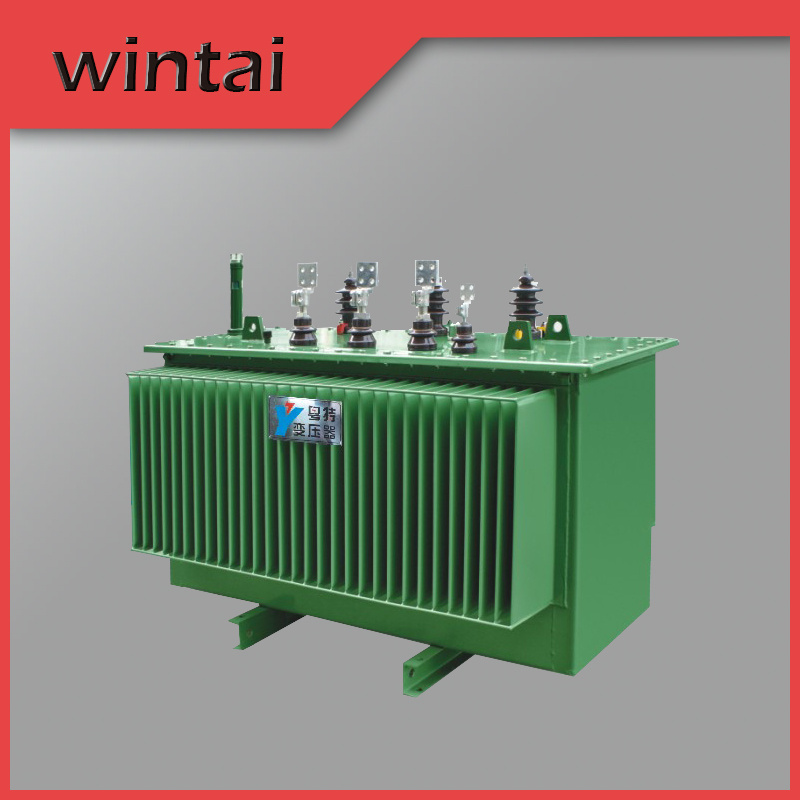

Power Supply Distribution Three Phase Transformers

About Our Transformer:

1. Rated voltage: 6.3kV,10kV,11kV,13.2kV,13.8kV,15kV, 20KV, 22KV, 33KV,35KV

2. Rated power: 5kva ~ 25000kva

3. Stardard: IEC,GB

4. Frequency: 50HZ /60HZ

5. Vector group: Dyn11, Yyn0, Ynd11, or others

6. Cooling: ONAN/ ONAF/ OFAF

7. Tap changer: 3 levels; 5 levels; 7 levels; 13 levels; 17 levels

8. Rating plate:: Yes (JSM brand or Customer brand)

9. Corrugated refrigeration panels: Yes ( Four sides of the transformer shell)

10. Parts: 1)Oil draining valve 2)Oil level indicator 3)Thermometer

Product Features:
Fully sealed, long life, small volume, low loss, low running costs, low noise, maintenance-free

Packing details:
International export standard wooden case or customerization

Delivery details:
15-20days received advance payment

Technical Specification:
6KV to 35KV three Phase Oil Immersed Distribution Power Transformer

63kva transformer
				Loss(kW)				Weight (kg)			(mm)			Gauge
Rated Capacity	Voltage Group(kV)		Connection Method		(75)	No-load current	Impedance Voltage				(L)	(W)	(H)
(kVA)	HV	LV	Connection Method	No-load	Load	%	%	Machine	Oil	Gross	Dimension			Vertical	Horizontal
50				0.21	1.21	2		195	205	590	1000	950	1450	550	550
100				0.29	2.02	1.8		320	240	790	1080	1000	1600	550	550
125				0.34	2.38	1.7		395	270	950	1100	1030	1630	660	660
160				0.36	2.83	1.6		460	285	1020	1130	1060	1630	660	660
200				0.43	3.33	1.5		555	325	1170	1190	1060	1670	660	660
250				0.51	3.96	1.4		630	340	1340	1260	1160	1700	660	660
315	38.5		Dyn11	0.61	4.77	1.4		720	400	1530	1280	1240	1790	660	660
400	36.5	0.4	Yd11	0.73	5.76	1.3	6.5	830	490	1780	1960	880	1900	820	820
500	35		Dyn5	0.86	6.93	1.2		930	510	1960	2020	940	1920	820	820
630	33		Yyn0	1.04	8.28	1.1		1085	600	2290	2070	1010	2010	820	820
800				1.23	9.9	1		1270	660	2640	2240	1040	2150	820	820
1000				1.44	12.15	1		1495	735	3100	2300	1200	2150	820	820
1250				1.76	14.67	0.9		1775	830	3630	2450	1280	2250	1070	1070
1600				2.12	17.55	0.8		2140	935	4235	2220	1510	2350	1070	1070
2000				2.61	21.5	0.8		2535	1035	4910	2310	1740	2440	1070	1070
2500				3.15	23	0.8		3140	1190	5840	2370	1840	2490	1070	1070
(Note): (Tapping range of high voltage) ±5%; ±2×2.5%. power transformer oil distribution transformer

Shengguang Wire and Cable Factory is a professional company engaged in the research, development, manufacture and sales of various prodcuts such as power distribution transformer, power cables, sockets, and adapters, with two base factories. Our wire and cable factory, located in YUNAN TOWN, covers over 22, 000 square meters and has more than 200 staff members. Our socket and plug factory, located in JIANGMEN City, covers over 32, 000 square meters and has more than 300 staff members.

SHENGGUANG passed ISO9001: 2000 Quality System Certification and most products are certified by CCC, UL/cUL, CSA, SAA, ASTA, VDE, KS, PSE-Mark, BSMI and RoHS systems.

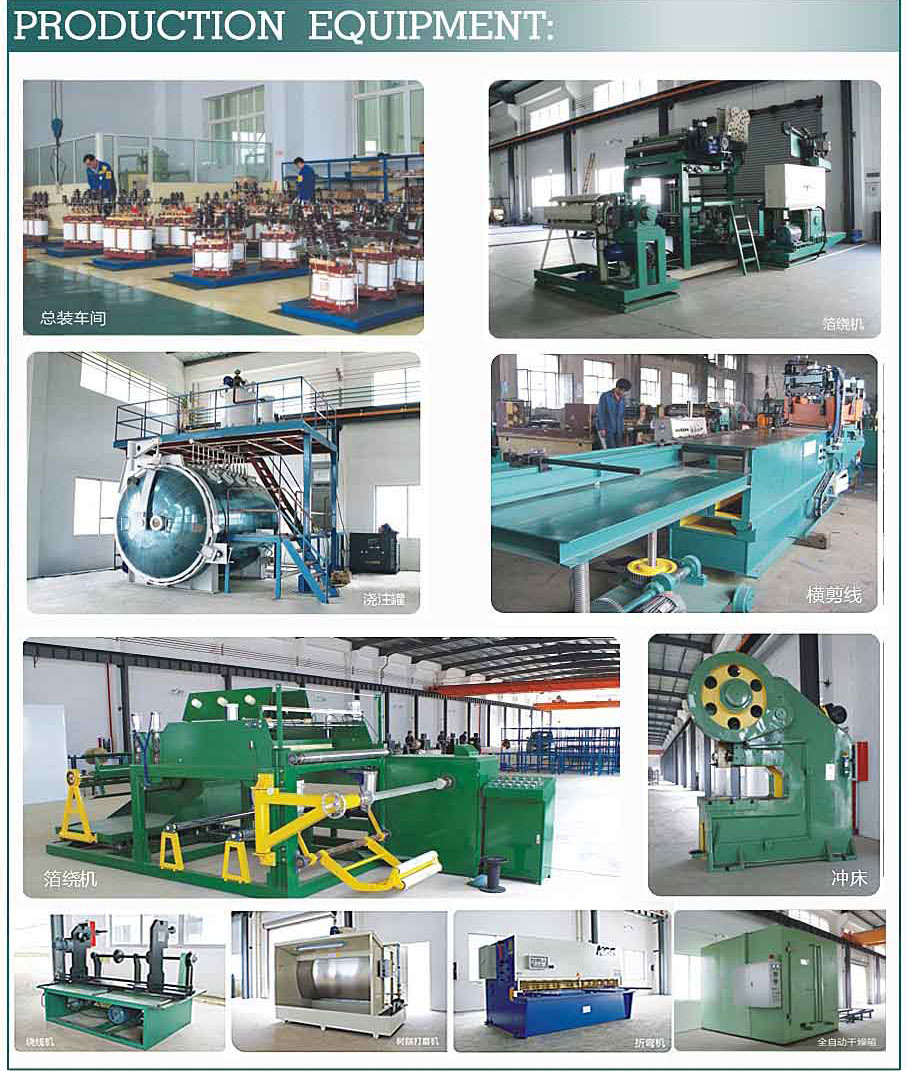

Our production bases are equipped with advanced facilities, sate-of-the-art technology and powerful capacity, catering to all the requirements of our clients.
