Zgs11 Series Combined Transformer 100kVA Power Transformer

Name: Zgs11 Series Combined Transformer 100kVA Power Transformer
Brand: china-manufacturer-directory.com
SKU: 697931152
Availability: InStock
Rating: 5 (77 reviews)

Supplier:	Shengguang Wire and Cable Factory
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,EXW,CIF

Product Specifications

Prod Model:	ZGS11
Product Name:	Oil-Type Combined Tranformer
Model No.:	Zgs12/Zgs24
Frequency:	50Hz/60Hz
Installation:	Indoor or Ourdoor
High Voltage:	10-35kv
Winding Material:	Cooper or Aluminum
Application:	Electronic
Phase:	Three
Cooling Method:	Oil-immersed Type Transformer
Winding Type:	Auto-transformer
Coil:	Toroidal
Brand:	Yuete

Product Description

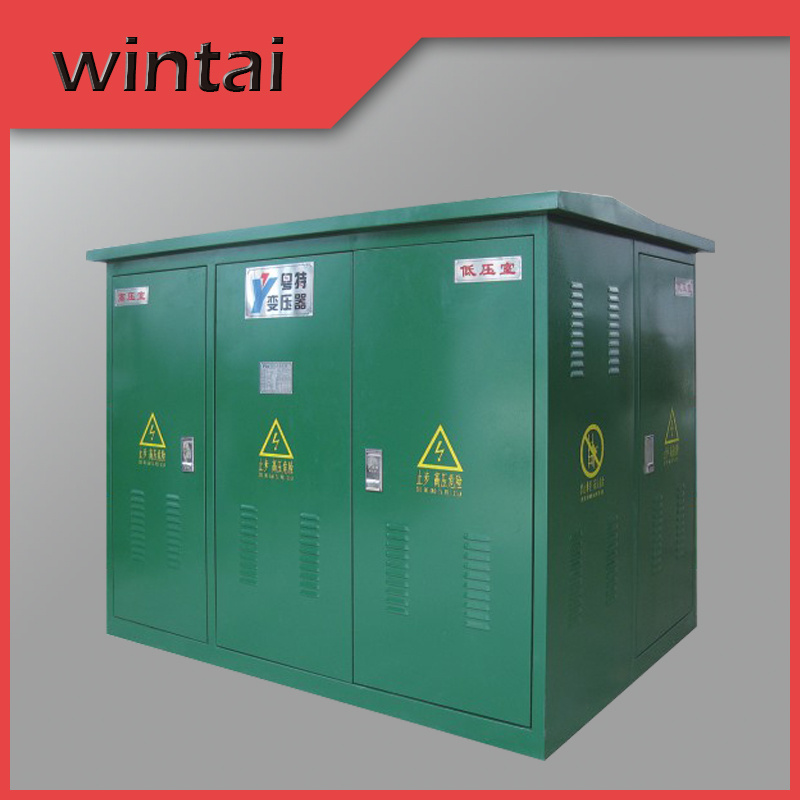

ZGS11 series Combined transformer 100kva power transformer

Feature Of Combined Transformer

1)Low loss
2)Small volume
3)High efficiency
4)Long usage life

ZGS11 Combined transformer is one of the high-tech prodnets devel-oped by our company on the basis of bad-mounted Transformer. Rangeof capacity:200-1000KV/A. The produet is suitable for the reutral-pointdistribution system or small-resistance earthing system in a 10KV dis-tribution network, or the neutral-point solid grounding system of a three-phase four-wire system in a 400V distribution network, well-integrated,reliable in power supply, compact, light in weight, low noise, etc; It hastwo types of cable outlet s:ring net type and terminal type.The producet can be placed directly into the load center of 10KVnetwork, thus the line loss in reduced and power dis tribution reliabilityin increased.

Main Function And Features

1)Compact structure,convenient installation.

2)The seal,whole insulation structure,can gurantee the security if person.

3)Can be used for ring network,also can used for terminal,conversion convenient,improve the power supply reliability.

4)The low loss,low noise,superior performence.

5)Cable joint adopts plug-and-socket form,has the characteristics of isolating switch,convenient operation,flexible.

6)High pressure double weld wire protection,plug-in weld wrie has temperature,current dule-sense protection properities.

7)Backup weld wire of transformer faults and second line fault protection.

8)Box adopts anti-theft structure.

9)Low temperature,high overload ability.

10)Because transformer implement body adopts special structure,its outstanding advantages is high quality,neutral voltage offset small.

Application of products

1) The combination transformer is characterized by reliable power supply, reasonable structure , quick installation , flexible and easy operation , small volume , low construction cost, etc.

2) It is suitable for outdoor and indoor use, and is widely used in industrial parks, residential quarters, business centers and high risers.

Main Technical Parameters for 12/24kv ZGS Pad Mounted transformer Series ( American Box Variable )

Technical Specification

Type	Rated Capacity (KVA)	Voltage Schedule			Vector Group	Consumption(w)		No-load current (%)
Type	Rated Capacity (KVA)	HV(KV)	Tapping	LV(KV)	Vector Group	No-load (KW)	load (KW)	No-load current (%)
ZGS9-H(Z)-100/10	100		±5%(±2×2.5%)	0.4	Dyn11	0.29	1.50	1.6
ZGS9-H(Z)-125/10	125					0.34	1.80	1.5
ZGS9-H(Z)-160/10	160					0.40	2.20	1.4
ZGS9-H(Z)-200/10	200					0.48	2.60	1.3
ZGS9-H(Z)-250/10	250					0.56	3.05	1.2
ZGS9-H(Z)-315/10	315					0.67	3.65	1.1
ZGS9-H(Z)-400/10	400					0.80	4.30	1
ZGS9-H(Z)-500/10	500					0.96	5.10	1
ZGS9-H(Z)-630/10	630					1.20	6.20	0.9
ZGS9-H(Z)-800/10	800					1.40	7.50	0.8
ZGS9-H(Z)-1000/10	1000					1.70	10.30	0.7

Shengguang Wire and Cable Factory is a professional company engaged in the research, development, manufacture and sales of various prodcuts such as power distribution transformer, power cables, sockets, and adapters, with two base factories. Our wire and cable factory, located in YUNAN TOWN, covers over 22, 000 square meters and has more than 200 staff members. Our socket and plug factory, located in JIANGMEN City, covers over 32, 000 square meters and has more than 300 staff members.

SHENGGUANG passed ISO9001: 2000 Quality System Certification and most products are certified by CCC, UL/cUL, CSA, SAA, ASTA, VDE, KS, PSE-Mark, BSMI and RoHS systems.

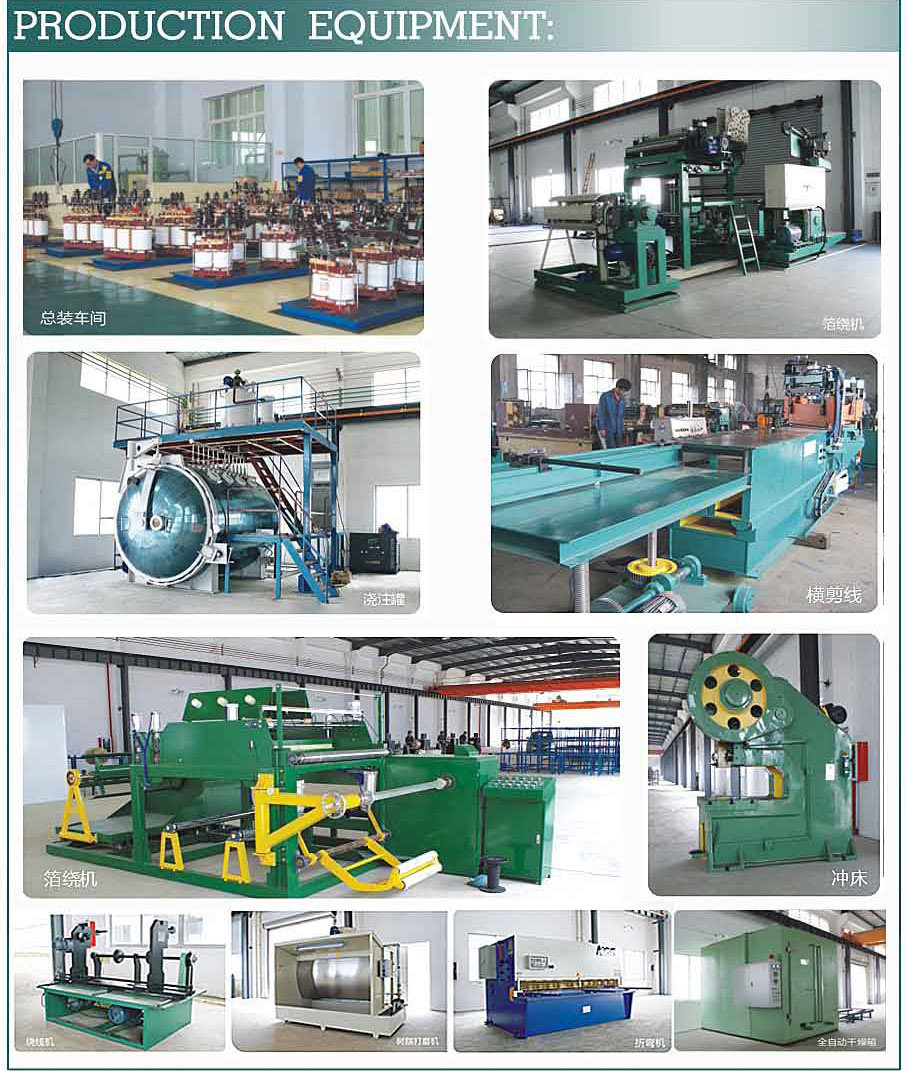

Our production bases are equipped with advanced facilities, sate-of-the-art technology and powerful capacity, catering to all the requirements of our clients.
