Profession High Quality Inverted Fluorescence Microscope (IFM-1)

Name: Profession High Quality Inverted Fluorescence Microscope (IFM-1)
Brand: China-Manufacturer-Directory.com
SKU: 683942022
Availability: InStock
Rating: 4.5 (99 reviews)

Supplier:	Ningbo Gamry Optical Instrument Co., Ltd.
Price:	US $ 3200/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	IFM-1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Eastern Asia,Western Europe
Function:	Fluorescence
Feature:	Inverted Microscope
Type:	Biological
Principle:	Optics
Mobility:	Portable
Number Of Cylinder:	Binoculars
Magnification:	100-500X
Shape:	Rectangular Prism

Product Description

1.Introduction
IFM-1 Inverted & Reflected Fluorescence Microscopes is composed with inverted microscope and reflected fluorescence microscope, equipped with long working distances plan achromatic objectives and wide field eyepieces, you can use long working distance phase contrast objectives and special long working distance condenser with phase contrast unit when inverted observation, and change the fluorescence excitation system freely. The microscope has clear image, wide field, compact framework, be utility sculpt and comfortable operation etc. It's mainly applied to observe the living cell and tissue, liquid and deposits etc, also to observe transparent living without staining and fluorescence slice up, it is the ideal instrument for researching in biology, cells cytology, oncology, genetics, immunology etc. The microscope can be used for scientific researching, medical treatment, epidemic prevention and animal husbandry etc.

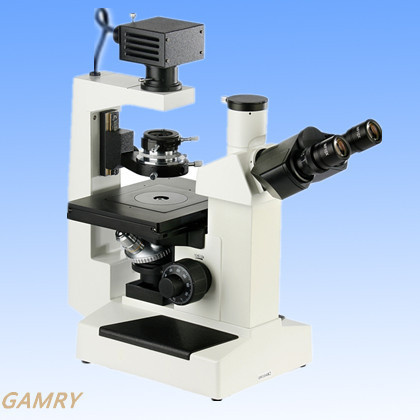

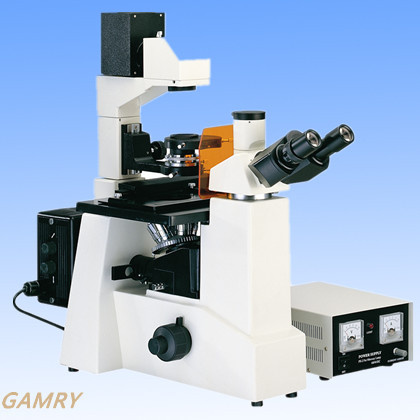

2.Photo:

Specification:
Eyepiece	Wide field WF10X (field number: Φ20mm)
	Centering telescope
Plan achromatic Objective	Objective		PL L10X/0.25 Cover glass thickness:1.2mm
			PL L25X/0.40 Cover glass thickness:1.2mm
			PL L40X/0.60 Cover glass thickness:1.2mm
	Phase Contrast Objectives		PL L10X/0.25 PHP2 Cover glass thickness:1.2mm
			PL L25X/0.40 PHP2 Cover glass thickness:1.2mm
			PL L40X/0.60 PHP2 Cover glass thickness:1.2mm
Eyepieces tube	Trinocular, Inclination 30°
EPI-fluorescence illumination system	Power supply unit. Input: AC 100-240V
	Mercury lamp:100W/DC
	Fluorescence filiters
	Group	Type				Wavelength of excitation light	Wavelength of emitted light
	(UV+V)	Ultraviolet light(UV)				330nm-400nm	425nm
		Violet light(V)				395nm-415nm	455nm
	(B+G)	Blue light(B)				420nm-485nm	515nm
		Green light(G)				460nm/550nm	590nm
Focus system	Coaxial coarse/fine focus system with tension adjustable and up stop, the minimum division of fine focusing: 2 μm
Nosepiece	Quintuple nosepiece
Stage	Fixed stage overall size:224mmX208mm
	Mechanical moving device, moving range: 79mm(longitudinal)X112mm(transverse)
	Culture dish holder 1			Inside locating slot size:86mm(w)X129.5mm(L),optional with a circular culture dishΦ87.5mm
	Culture dish holder 2			Inside locating slot size:34mm(w)X77.5mm(L),optional with a circular culture dishΦ68.5mm
Transmitted illumination system	Turnplate phase contrast condenser, working distance: 50mm
	6V30W Halogen lamp, brightness adjustable.
	Frosted glass and blue, green filter
Optional Accessory	Eyepiece				Dividing eyepiece 10X(field numberΦ22mm)
	CCD adapter				0.5X,1X,0.5X(with dividing)
	Camera				USB output:1.3M/2.0M/3.0M pixel VIDEO output:380/520TV Line
	Digital camera adapter				CANON(EF) NIKON(F)
