Professional Inverted Biological Microscope (IBM-2) High Quality

Name: Professional Inverted Biological Microscope (IBM-2) High Quality
Brand: china-manufacturer-directory.com
SKU: 683941712
Availability: InStock
Rating: 4.5 (58 reviews)

Supplier:	Ningbo Gamry Optical Instrument Co., Ltd.
Price:	US $ 865/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	IBM-2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Eastern Asia,Western Europe
Function:	Biological Microscope
Feature:	Inverted
Type:	Biological
Principle:	Optics
Mobility:	Portable
Number Of Cylinder:	Binoculars
Magnification:	100-500X
Shape:	Rectangular Prism

Product Description

1.Introduction:
IBM-2 Inverted microscope is equipped with wide field eyepieces, long working distance plan achromatic objectives and very long working distance condenser and phase contrast unit. It can be observed transparent and unfinished living specimen in culture bottle or culture utensil. It is the ideal instrument suitable for research of living specimen structure, liquid, and deposits and so on. It also can be used in research institutes, universities, medical treatment, agriculture and animal husbandry, etc.

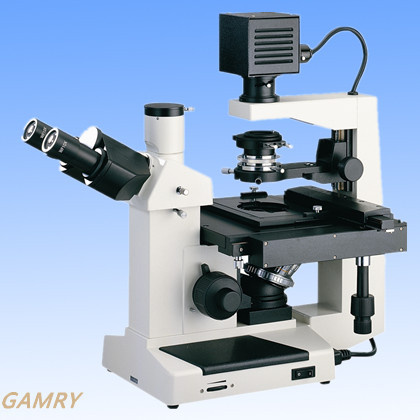

2.Photo:

Specification:
Eyepiece	Wide field WF10X (field number: Φ20mm)
	Centering telescope
long working distance plan achromatic Objective	Objective	PL L10X/0.25 Cover glass thickness:1.2mm
		PL L25X/0.40 Cover glass thickness:1.2mm
		PL L40X/0.60 Cover glass thickness:1.2mm
	Phase Contrast Objectives	PL L10X/0.25 PHP2 Cover glass thickness:1.2mm
Eyepieces tube	Trinocular, Inclination 30°
Focus system	Coaxial coarse/fine focus system with tension adjustable and up stop, the minimum division of fine focusing: 2 μm
Nosepiece	Quintuple Backward ball bearing inner locating
Stage	Fixed stage overall size:224mmX208mm
	Mechanical moving device, moving range: 79mm(longitudinal)X112mm(transverse)
	Culture dish holder 1		Inside locating slot size:86mm(w)X129.5mm(L),optional with a circular culture dishΦ87.5mm
	Culture dish holder 2		Inside locating slot size:34mm(w)X77.5mm(L),optional with a circular culture dishΦ68.5mm
Condenser system	Puller phase contrast condenser working distance is 50mm
Illumination system	6V30W Halogen lamp, brightness adjustable.
Filter	Frosted glass and blue, green filter
Optional Accessory	Eyepiece			16X(Φ11mm),20X(Φ11mm)
	Phase contrast plan objective			25X, 40X
	Ultra-long working distance condenser			Working distance is 70mm(Note: no used in the phase contrast)
	CCD adapter			0.5X,1X, 0.5X(with dividing)
	Condenser			Ultra-long working distance condenser, working distance is 70mm(not used for phase contrast)
	Camera			USB output:1.3M/2.0M/3.0M pixel VIDEO output:380/520TV Line
	Digital camera adapter			CANON(EF) NIKON(F)

Ningbo Gamry Optical Instrument Co., Ltd. is a professional company which was established at 1997, specialized in the research, development, manufacturing and selling of a wide range of high-precision optical instruments and components.

Our main products include measuring microscopes, biological microscopes, metallurgical microscopes, stereo microscopes, and refractometers ect. Our company also produces various types of optical components and optical scaling parts, in particular to the fabrication of big astronomical mirrors.

Our objective is to strive for becoming the first-class optical enterprise by providing high-quality products with price advantage, timely delivery, and good services to satisfy our old and new customers.

We welcome your inquiries, and are at your disposal for any information you might need. Please contact us now.
