Promotion Large LED Display Waterproof Marine Radio Portable 2 Way Radio Tc-507

Name: Promotion Large LED Display Waterproof Marine Radio Portable 2 Way Radio Tc-507
Brand: china-manufacturer-directory.com
SKU: 755436835
Availability: InStock
Rating: 4.6 (115 reviews)

Supplier:	Quanzhou Truest Communication Co., Ltd.
Price:	Negotiable/Piece
Min Order:	20/Piece
Quantity::
Trade Terms:	CFR,CIF,EXW

Product Specifications

Prod Model:	TC-507
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification:	CE
Application:	Industrial
Wavelength And Frequency:	Long-wave
Style:	Sky Wave
Condition:	New
Screen:	With Screen
Standard:	Standard

Product Description

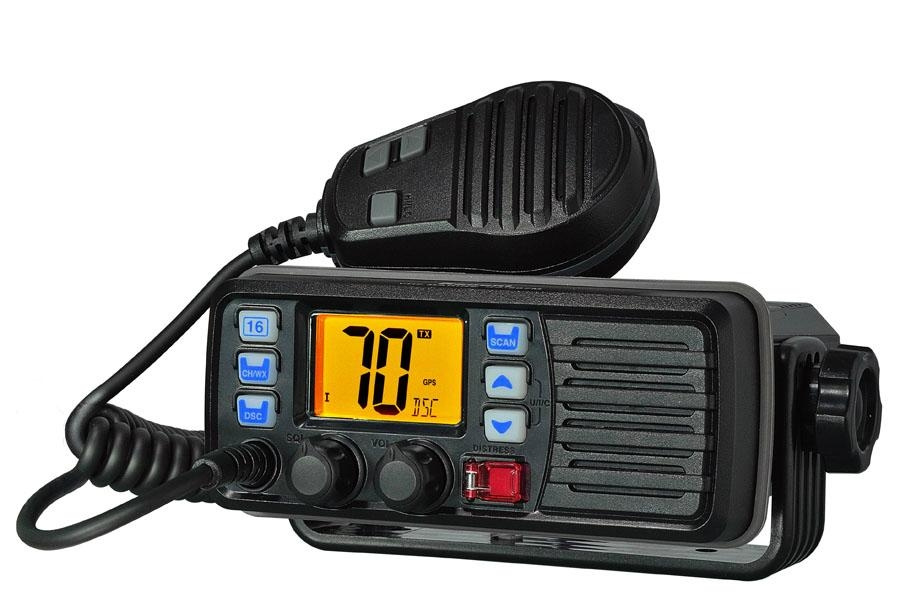

Promotion Large LED Display Waterproof marine radio Portable 2 way radio tc-507

Main Functions:

1. Dual Bands Frequency Watch or Three Bands Frequency Watch

2.Buil-in DSC

3.Favorite Channel Selectable

4.Aqua Quake Draining

5. 10 Weather Channels And Weather Alert

6.Large LED Display (Easy to see ,Easy to operate )

7.1 Meter Depth For 30 Minutes Water-proof , IP-X7 Water proof Class

8.External GPS Receiver

9. Scan Resume Timer

Technical Specifications of vhf marine transceiver

General
Frequency Range	TX:156.025-157.425MHz
Frequency Range	RX:156.050-163.275MHz
Channel No.	88 channels
Type of Emission	FM(16K0G3E),DSC(16K0G2B)
Frequency Stability	±2.5ppm
Work Voltage (V)	DC13.8V(±15%)
Operating Temperature	-20°C~+60°C
Antenna Impedance	50Ω
Dimensions(W×H×D)	153×67×152mm
Weight	742g
Transmitter
RF Power Output	High 25W/ Low 1W
Maximum Frequency Deviation	±5KHz
Spurious and Harmonic	≤ -70dB(H)
Spurious and Harmonic	≤ -56dB(L)
Adjacent Channel Selectivity	≥70dB
TX Audio Distortion	≤10%
Current Consumption	≤ 5.5A(High power)
Current Consumption	≤ 1.5A(Low power)
Input Impedance	2KΩ(Microphone)
Receiver
RX Sensitivity	≤0.2µV
Squelch Sensitivity	±5KHz
Adjacent Channel Selectivity	≥70dB
Intermodulation Anti-interference	≥70dB
Spurious Response Rejection	≥70dB
Max RX Current(mA)	≤1.5A
Rated Audio Output Power	≥4.5W(10%)
GPS Signal Format	NMEA0183-2.0
Output Impedance	4Ω (Speaker)

Shipment:

1. We will arrange the shipment within 24 hours after receive your payment.

2. And if you make the payment on Saturday or Sunday, We'll ship it on the following Monday (weekend is not business day, Hope your understanding)

3. We usually arrange the shipment by express like DHL, EMS,UPS ,FEDEX TNT and so on that depends on different countries.

4. DHL and Fedex is our first choice because they are faster than others. If you need special shipping ways, please kindly let us know.

5. Our shipping price is not including any taxes,VAT or other changes. We will declare it with lower price in the invoice to reduce import tax for you.

6. If you have any requirments, feel free to contact with me.

Return:

1. We offer a 14-day exchange and refund policy for defective items.

2. If there is defective item received, Please show me the evidence by picture or video,buyer return the defective itemat his own costand we will ship the replace item to you at my shipping cost.

3. If you are not satisfied with our product, you can return the product. After we get the item, we will give you a refund ,However the customer should bear the shipping costs to and fro.

4. Please contact us before your return the item, we will offer you the right return address.

Feedback:

1. Our goal is to make sure you are a happy customer and pleasant shopping with us.

2. If you are satisfied with the purchase and our total service, your comment is very important in our business success.Please take a minute to leave us a positive feedback. If you are not satisfied with your purchase in anyway, Please give us the opportunity to resolve any problem, We understand the concerns and frustrations you might have, and will try our best to resolve the issues.

Warranty:

1. One Year Warranty for this product. However, don't disassemble the prdoduct by yourself. Otherwise we can not supply the warranty.If have any problems, pls contact us first.

2. Shipping cost for warranty repair/replace have to pay by buyer.

Our experience in the manufacture and export of walkie-talkie /different two way radio, mobile phone's earphones, antenna, charger, headset, battery pack, and all kinds of printer accessories, such as printer chips, ink cartridge, toner cartridge, and the other their parts which can be assembled to interphone, CD, MP3, cell-phone, goes back 10 years.

In this time, we, Quanzhou Truest Communication Co. Ltd, have successfully completed more than 100 clients' OEM/ODM projects. With 30 percent of sales revenue invested in R&D annually and our own molding department, we are able to meet your diverse needs. We have 18 R&D members, each with 15 years of experience who can render a sample based on your specifications in as fast as 10 days. To meet your high-quality requirements, our 18 QC members conduct strict inspections at each stage of production, from raw materials to assembly and packaging. To ensure proper functionality and performance, we only source from reliable suppliers in Taiwan, South Korea and Japan. This ensures our return rate is kept at under 0.1 percent. Bearing CE, RoHS and FCC marks, our items are exported to markets worldwide. Each month, our 8, 000m2 factory yields 6, 000 walkie-talkies, which are widely used in GPS devices, MP3/MP4 players and other digital products.
