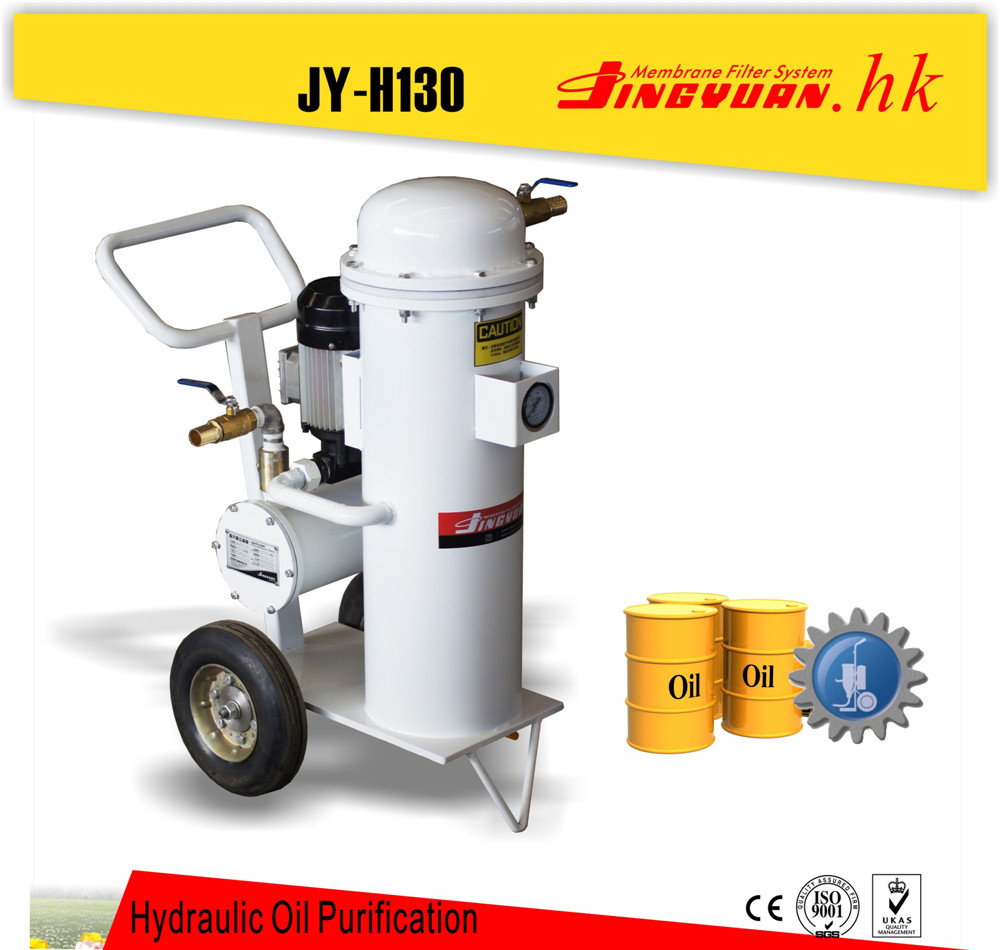

Replacement Hydraulic Oil Filter with CE Certification

Name: Replacement Hydraulic Oil Filter with CE Certification
Brand: China-Manufacturer-Directory.com
SKU: 698564582
Availability: InStock
Rating: 4.7 (119 reviews)

Supplier:	Shenyang Jingyuan Membrane Systems Co., Ltd.
Price:	US $ 1291/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	J Y-H130
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Working Pressure:	0.2~0.35 MPa
Temperature:	-10~70 Centigrade
Filter Element Quantity:	36 Pieces
Flow Rate:	30~40 L/Min
Filtration Precision:	2,5,10,15,25 Micrometer(Optional)
Voltage:	380V
Anti-Hazard Classification:	Grade 2
End Flange:	D N20
Dimension:	450700890mm
Weight:	45 Kg
Structure:	Polymer Membrane
Type:	Membrane Filter

Product Description

Product Introduction:

Excellent Performance:
<>Capacity 20 tons daily with automatic grade working pattern
<>Precision and flow can be adjusted
<>Mobile design with wheels lightweight appearance
<>Minimum precision can be controlled within 2 μm
<>Widely being used in engineering machinery, construction machinery, mining construction, oil depot, oil storage tank, gas station and so on.
<>Be also suitable for fine chemicals, methyl alcohol, gasoline purification
<>Can be used as by-pass filter on woking site
<>With anti-explosion electric moter 380V/220V/DC24V/DC12V optional
<>Polymer membrane filtration technology
<>Water removal rate is more than 95%
<>Selectivity-pass characteristic of polymer membrane material
<>High interception rate and low filtration cost
<>Small operating space and convenient drain valve
<>Stainless steel tank pass pressure test can be customized
<>Filter elements can be used repeatedly after back-washed
<>Filter elements with acid and alkali resistance
<>Design service life is more than 20 years (except for filter elements)
<>Customized service provided according to your requirements
<>Welcome agents overseas and seeking for business partner abroad

Technical Parameters:
1.Model Type: JY-H130
2.Flow Rate: 30~40 L/min
3.Filtration System:
(1)Polymer Membrane Filter Elements (Can be used repeatedly after washing)
J22-400L------------------------------------------------------------10μm
J22-400H------------------------------------------------------------5μm
(2)Filter Element Quantity: 36 Pieces
(3)Function: Remove impurity particles, colloid and water
(4)Working Pressure: 0.2~0.35 Mpa
(5)Filtration Level: 3
(6)Service life: 2~3 Years or longer
4.Filtration Precision:
(1)Range: 2,5,10,15,25 μm
(2)Standard: 5~10 μm
5.Mouth:
Standard: DN20 or According to Requirements
6.Security:
With Pressure Safety Valve
7.Temperature:
Working Temperature: -10~70 ºC
8. Dimension: 450*700*890mm
9.Weight: 45KG
10.Anti-hazard Classification: Grade 2
11.Power System:
(1)Electric Motor:380V
(2)Pump: Diesel Centrifugal Pump ( Explosion Proof)

Principle:

Selectivity pass characteristic is to say, the oil molecules will pass and water molecules or impurities will be intercepted, so that the oil and water can be separated.

Various Products Solves Your Problem in Oil Purification :

Large Capacity High Precision Diesel Refined Machine:JY-DF Series

Small Volume Diesel Purification Strainer:JY-219 Series, JY-T Series

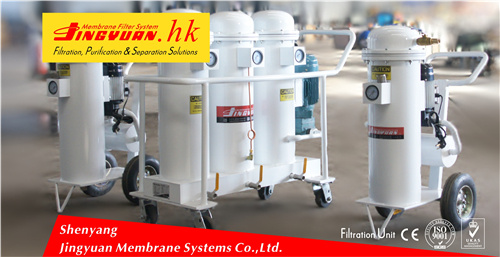

Portable Industrial Oil Filtration Trolley:JY-E Series, JY-M Series

Diesel Demulsification Filtration System:JY-DFF Series

Sea Oil Water Removal System:JY-DFS Series

High Viscosity Hydraulic Oil/Gear Oil/Engine Oil Purification Refined Machine:JY-G Series, JY-H Series

Large Capacity Diesel Purification Filter Technical Parameters
Item		Unit	JY-DF15	JY-DF15A	JY-DF15A+	JY-DF60A	JY-DF60	JY-DF60B
Flow Rate		m³/h	15			60
Filter Element Quantity		Piece	100		200	371
Filter Element Type			J30-970H			J30-990H		J30-990H F150-800
Filtration Stage		Level	1					3
Dimension	L	mm	800	1460	1600	1230	1230	2000
	W	mm	700	805	1200	1650	1150	1400
	H	mm	2000	2030	2010	2200	2200	2350
Weight		KG	210	360	560	893	632	1130
Power System	Voltage	V		380 Anti-explosion Grade 2
	Pump			Diesel Centrifugal Pump
End Flange			DN65~80	DN80~100	DN80~125	DN80~125
Security			With Pressure Safety Valve
Function			Remove impurity particles, colloid and water
Working Pressure		Mpa Psi	0.2~0.35 29~51
Service Life		Year	2~3
Filtration Precision		μm Mesh No.	2,5,10,15,20,25 6250,2500,1250,800,625,500
Working Temperature		ºC	-10~70
Suitable Oil			Light Diesel,Diesel Fuel
Application Field			Diesel Refinery, Oil Depot, Oil Storage Tank, Concrete Mixing Station, Transportation Company, Railway Locomotive Gas Station, Fishery Industry

Mobile Industrial Oil Filtration Trolley Technical Parameters
Item		Unit	JY-M50	JY-E50	JY-DM50
Flow Rate		L/min	40
Filter Element Quantity		Piece	68
Filter Element Type			J22-401L/H		J22-405L/H
Filtration Stage		Level	2
Dimension	L	mm	550		700
	W	mm	560		650
	H	mm	920		1000
Weight		KG	77		100
Power System	Voltage	V	380/220	HONDA 5.5HP	220
	Pump		Gear Pump		Diesel Centrifugal Pump
End Flange			DN20
Security			With Pressure Safety Valve
Function			Remove impurity particles, colloid and water
Working Pressure		Mpa Psi	0.2~0.35 29~51
Service Life		Year	2~3
Filtration Precision		μm Mesh No.	2,5,10,15,20,25 6250,2500,1250,800,625,500
Working Temperature		ºC	-10~70
Suitable Oil			Diesel, Lube Oil, Hydraulic Oil,Gear Oil, Engine Oil
Application Field			All Kinds of Diesel Vehicles, such as SUV, Jeep, Business Car, Bus, Engineering Machinery, Mining Machinery, Agricultural Machinery, Generator Unit

Small Volume Fuel Purification Filter Technical Parameters
Item		Unit	JY-219	JY-219A	JY-T32A	JY-T32	JY-T100
Flow Rate		L/min	40				60
Filter Element Quantity		Piece	34		68		90
Filter Element Type			J30-970H		J22-400L/H		J22-330L/H
Filtration Stage		Level	1		2		3
Dimension	L	mm	310	310	680	660	1370
	W	mm	300	390	480	350	410
	H	mm	650	670	660	650	830
Weight		KG	21	30	64	49	125
Power Syetem	Voltage	V		380/220/DC24/DC12
	Pump			Diesel Centrifugal Pump
End Flange			DN20				DN65
Security			With Pressure Safety Valve
Function			Remove impurity particles, colloid and water
Working Pressure		Mpa Psi	0.2~0.35 29~51
Service Life		Year	2~3
Filtration Precision		μm Mesh No.	2,5,10,15,20,25 6250,2500,1250,800,625,500
Working Temperature		ºC	-10~70
Applicative Oil			Light Diesel, Industrial Oil
Application Field			Mining Machinery, Engineering Machinery, Construction Machinery, Power Generator Unit, Gas Station, Oil Depot, Oil Storage Tank

Industrial Oil Demulsification and Filtration Machine Technical Parameters
Item		Unit	JY-DFS30	JY-DFF60	JY-C500-20	JY-C500-40	JY-G100	JY-G200	JY-H130	JY-H330
Flow Rate		m³/h L/min	30m³/h	60m³/h	20m³/h		32,40,63 L/min		30~40L/min
Filter Element Quantity		Piece	200				36
Filter Element Type			J30-980H F150-800 R150-800	J30-990L F150-1000 R150-1000	J30-980H F150-800 R150-800		J30-970H	J30-970H F150-500 R150-500
Filtration Stage		Level	3				1		4
Dimension	L	mm	2200				800		450	1160
	W	mm	1500				750		700	450
	H	mm	2350				1350		890	1000
Weight		KG	965				115		45	148
Power System	Voltage	V	380/220/DC24/DC12
	Pump		Diesel Centrifugal Pump
End Flange			DN80~125				DN20~40
Security			With Pressure Safety Valve and Air Release Valve
Function			Demulsification and Impurity Particles, Colloid, Water Removal
Working Pressure		Mpa Psi	0.2~0.35 29~51
Service Life		Year	2~3
Filtration Precision		μm Mesh No.	2,5,10,15,20,25 6250,2500,1250,800,625,500
Working Temperature		ºC	-10~70
Suitable Oil			Sea Oil, Emulsified and High Viscosity Industrial Oil, Including Diesel, Hydraulic Oil,Engine Oil, Gear Oil and Lube Oil
Application Field			Mining Machinery, Engineering Machinery, Construction Machinery, Power Generator Unit, Gas Station, Oil Depot, Oil Storage Tank

Application:
Solid particle pollution leads to the failure of hydraulic system and lubricating system, so it is necessary to filter the industrial oil before pour it into system. As the new oil (even just abstracted from tank) has been polluted seriously, it isn't suitable for direct use. There are various reasons cause new oil pollution, such as contamination and water, they are likely mixed into the new oil during mixing and storage process.

Now we are seeking for business partners or agents overseas to expand our foreign market. Please take our company into consideration, and looking forward to establish a long-term cooperation relationship with you!

Shenyang jingyuan Membrane Systems Co., Ltd. is a professional and innovative membrane filter manufacturer, specialized in clean diesel filter technology, special membrane production technology, supplying with high performance and large flow of diesel purification filters and devices, industrial oil purification device, high performance military filtration device. We are particularly skilled in research and application of membrane filtration materials, strict product quality control. We uphold the proprietary technology and creative and offer you qualified products, competitive price and professional services. We sincerely hope to promote and develop the business with our friends on the basis of equality and mutual benefit.

Philosophy: Focus on research and development, continuously innovate product, control quality in strict, base on equality and mutual benefit.

Our factory is located in Tieling Yilu Industrial Park in Liaoning Province, which is also China special vehicle production base, covers a total area of 28000 square meters with the membrane materials laboratory, production line of special polymer membrane materials and membrane filter production line. We sell filters to many countries and regions except China.

We supply with the main professional products: High-performance large flow diesel purification filters, diesel-water separator, diesel refining filters, high-precision diesel purification filters, industrial diesel purification filters, industrial oil purification filters, industrial demulsification water removal for industrial filters, vacuum centrifugal oil filter, wind turbine gear box oil drain system, matched high viscosity gear oil filter, high viscosity gear oil pre-heater, high performance military filter, polymer membrane materials, and we also engage in filter OEM.

Our company has been approved by ISO9001: 2008 quality management system.

Quality: Strictly quality control

Core competence: Membrane materials R & D and production, in the 21st century, membrane technology will change the world

Production: Professional production of large and medium-sized high-performance flow diesel filters and industrial filtration device
