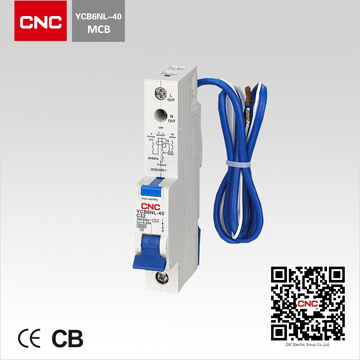

Residual Current Circuit Breaker with Over Current Protection (YCB6NL-40)
Product Specifications
| Prod Model: |
YCB6NL-40 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Circuit Breaker |
| Function: |
RCCB |
| Arc-extinguishing Medium: |
Air |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
Normal Type Circuit Breaker |
| Structure: |
Residual Current Circuit Breaker |
| Poles Number: |
1p+N |
| Installation: |
DIN Rail |
Product Description
YCB6NL-40 Residual Current Circuit Breaker
1. Intelligent control
2. Multi-function
3. GB, ISO
General
1. Protection against overload and short-circuit currents
2. Protection against the effects of sinusoidal alternating earth fault currents
3. Protection against indirect contacts and additional protection against direct
Contacts.
4. Protection against fire hazard caused by insulation faults
5. Used in residential building and distribution boards
6. Classified as follows according to the type of instantaneous release: Type B(3-5)ln,
Type C(5-10)ln
Do you know about us?
1. China Top 100 Industrial Electrical Enterprise
2. Netion High-tech Enterprise
3. Our Laboratory is China Key Industrial Electrical Laboratory; 4. We have completely sales service system, ensure every detail is going smooth. 5. We have new designed products each year by our R&D Dpartment. 6. Perfect testing system ensure each product is qualified. 7. Want know more of us? Waiting for your inquiry.
|
Type |
Standard |
|
lEC/EN 61009-1 |
Electrical
features |
Rated current In |
A |
2,4,6,10,16,20,25,32,40 |
|
Type (wave form of the earth leakage sensed) |
|
A,AC |
|
Poles |
P |
1P+N |
|
Thermo-magnetic release characteristic |
|
B,C |
|
Rated voltage Ue |
V |
240 |
|
Insulation voltage Ui |
V |
500 |
|
Rated frequency |
Hz |
50/60 |
|
Rated breaking capacity Icn |
A |
6000 |
|
Rated impulse withstand voltage (1.2/50) Uimp |
V |
4000 |
|
Dielectric test voltage at ind. Freq. for 1min |
kV |
2 |
|
Rated sensitivity IΔn |
A |
0.01,0.03,0.1,0.3 |
|
Break time under IΔn |
s |
≤0.1 |
|
Rated residual making and breaking capacity IΔm |
A |
500 |
|
Pollution degree |
|
2 |
Mechanical
features |
Electrical life |
t |
4000 |
|
Mechanical life |
t |
4000 |
|
Protection degree |
|
IP20 |
|
Storage temperature |
|
-25~+70 |
|
Ambient temperature (with daily average≤35) |
|
-5~+40 |
|
Installation |
Terminal connection type |
|
Cable/U-type bar/Pin-type busbar |
|
Terminal size top / bottom for cable |
mm² |
16 |
|
AWG |
18-5 |
|
Terminal size top / bottom for busbar |
mm² |
16 |
|
AWG |
18-5 |
|
Tightening torque |
N*m |
2 |
|
In-Ibs |
18 |
|
Mounting |
|
On DIN rail EN 60715(35mm)by means of fast clip device |
|
Connection |
|
From top |
