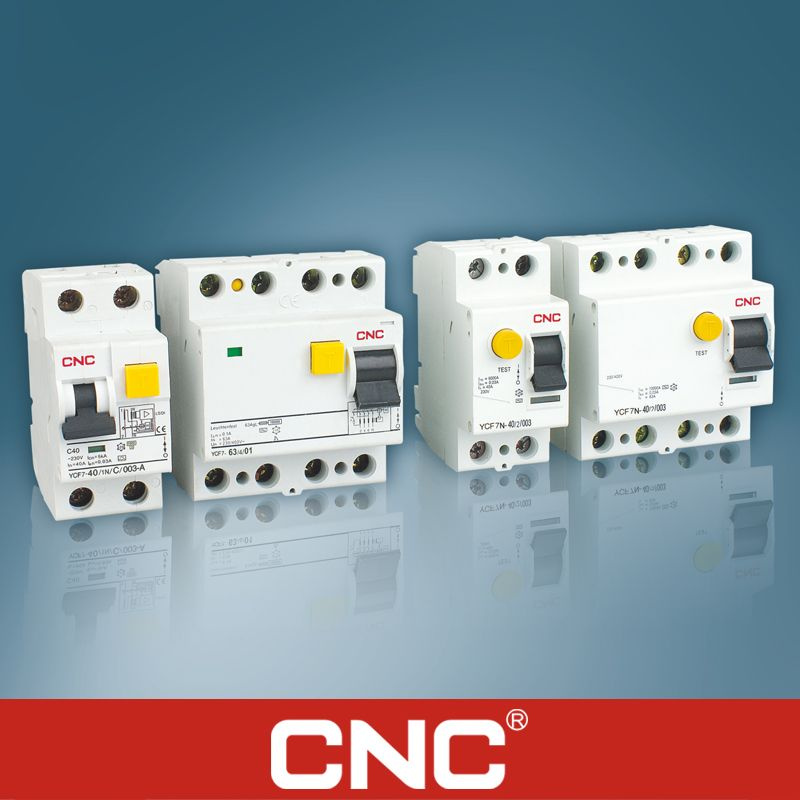

Residual Current Devices (YCF7(N)) Earth Leakage Circuit Breaker
Product Specifications
| Prod Model: |
YCF7(N) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Circuit Breaker |
| Function: |
RCCB |
| Arc-extinguishing Medium: |
Air |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Certification: |
ISO9001-2000 |
| Operation: |
Electric Type |
| Installation: |
Insert |
| Speed: |
Normal Type Circuit Breaker |
| Structure: |
earth leakage circuit breaker |
Product Description
Residual Current Devices YCF7(N)
1. Rated voltage: 230/400V
2. Rated tripping current: 10, 30, 100, 300, 500mA
3. Resitivity: AC and pulsating DC
4. IEC61008
5. Degree of protection: Built-in switch IP 40
6. Output 2000PCS/day
7. CE, CB, ISO9001, 14001, IEC
8. OEM
|
Rated current In |
A |
16, 25, 32, 40, 63 |
|
Type (wave form of the earth leakage sensed) |
|
A, AC |
|
Poles |
P |
2, 4 |
|
Rated voltage Ue |
V |
230/400 |
|
Insulation voltage Ui |
V |
500 |
|
Rated frequency |
Hz |
50/60 |
|
Rated impulse withstand voltage (1.2/50) Uimp |
V |
6000 |
|
Rated sensitivity IΔ n |
A |
0.03, 0.1, 0.3 |
|
Electrical life |
t |
2000 |
|
Mechanical life |
t |
4000 |
|
Terminal size top/bottom for busbar |
mm2 |
25 |
|
Tightening torque |
N*m |
2 |
|
Mounting |
|
On DIN rail EN 60715(35mm) by means of fast clip device |
|
Connection |
|
from top |
CHANGCHENG Group, mainly engaged in circuit breaker, AC contactor, starters, relays, instruments, switches, fuses low voltage products and transformer, whole set cabinet etc high voltage products. By now, our company has developed into one of the largest trans-regional, conglomerate and trans-national enterprise on scale and developing potentiality.
Our main lines now include high-low voltage appliances, complete sets, highway guardrail, electronic controlling equipment, vessel manufacture, and lighting etc, With an annual throughput value of 20 billion Yuan. Furthermore, having received the ISO9001, ISO14001, OHSMS 18001, UL, VDE, TSE, CB, CCC certificate for various product series, besides that all our products have been undertaken by People's Insurance Company of China on quality responsibility. And also our products have been approved as the well-known trademark of China, we are now achieving high sales shares in markets worldwide.
We welcome both new and existing customers to come take a look at our current line up and hope that you will choose our brand of competitively priced quality products. Please feel free to send us your inquiries and we will be happy to answer any questions you may have.
Business Type: Manufacturer/Factory & Trading Company
Number of Employees: 338
Management System Certification: ISO 9001,ISO 9000,ISO 14001
International Commercial Terms: FOB, CIF, CFR
Terms of Payment: LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Average Lead Time: Peak season lead time: within 15 workdaysOff season lead time: within 15 workdays
Number of Foreign Trading Staff: 11~20 People
Export Year: 2004-01-01
Export Percentage: 21%~30%
Main Markets: South America, Europe, Southeast Asia/ Mideast
Export Mode: Have Own Export License
Factory Address: Cnc High-Tech Industrial Zone, North Baixiang, Wenzhou, Zhejiang, China
R&D Capacity: OEM, ODM, Own Brand()
No. of R&D Staff: Above 50 People
No. of Production Lines: Above 10
Annual Output Value: US$5 Million - US$10 Million
