Product Specifications
| Prod Model: |
TOP-BNC-F-01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
PCB Coaxial Connector |
Product Description

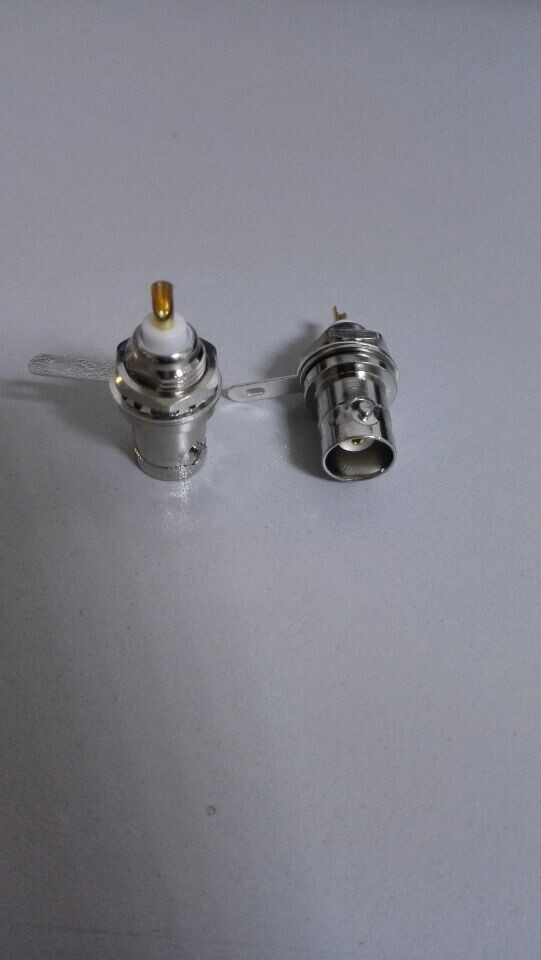

BNC FEMALE CONNECTOR
The BNC series are bayonetlock standard coaxial connectors,
with characteristic impedance 50 Ω or 75 Ω.
They have the characteristics of rapid engagement and disengagement, high reliability,
simple structure etc, are used to connect RF coaxial cables in IT, industrial network,
medical equipment, data communication, video systems and broadcast application
| Impedance: | 50Ω, 75Ω |
| Frequency range: | 0 ~ 4 GHz |
| Resistance: | Inner conductor ≤ 2.0mΩ |
| External resistance: | ≤ 0.2mΩ |
| Insulation Resistance: | ≥ 5000MΩ |
| Withstand Voltage: | 1500V rms |
| Durability: | over 1000 times |
| Center Pin: | Brass |
| Frequency response: | DC to 8 MHz |
| Attenuation: | 0.5dB typ |
| Material: | Plastic and Copper |
| Working temperature: | -20°C ~ 75°C |
| Storage temperature: | -30°C ~ 85°C |
| Humidity: | 0% ~ 95%RH |
| Package: | 100pcs/pack, 30pack/carton |
| Weight: | Approx 1.35kg/100pcs/polybag |
| Remark: | 1.Simply & Professional appearance for cabling |
| 2.Easier for installation, save time and more securer cable connection |
Our Production :
---Powerful R&D team
---Wonderful design solution
---Perfect after-sales service
---Strict quality testing
---Rich cooperation experiences with Communication product manufactures
---Competitive price
FAQ
1. What's the Warranty of the Products?
Answer: In general, all goods with 12 month-warranty after the shipments .
2. How about the defective rate ?
Answer: Less than 1%.
3. Where can customers get the Product Specification and other datasheets?
Answer: we will send them via email once get the request from the customers.
Our high quality products , competitive price and professional service, be sure to meet your need for all kinds of components. ^_^
