Product Specifications
| Prod Model: |
TOP-FAKRA-1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connector: |
Fakra |
| Color: |
Blue |
| Type: |
PCB Coaxial Connector |
| Interface Type: |
Fakra |
Product Description
Specifications

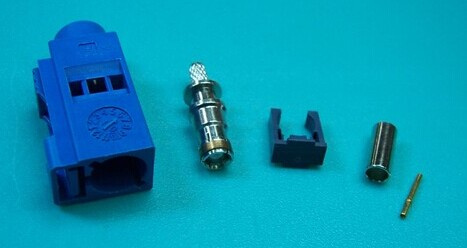

Name:Fakra connector
Code:C
Type:Cable Mount
application:GPS
Suitable cable:RG316/RG174/LMR100
Fakra Female Cable Mount connector Blue for GPS telematics or navigation
Suitable cable:RG316/RG174/LMR100
The antenna with this Fakra Connector is compatible with:
VW RNS510 (MFD3);
VW MFD2 (RNS2);
SKODA COLUMBUS;
MERCEDES COMMAND SYSTEMS W211 (E-CLASS);
MERCEDES APS 50;
AUDI RNS-E (DVD NAVIGATION);
AUDI MMI (A6 4F, A8 4E);
Impedance: | 50Ω, 75Ω |
| Frequency range: | 0 ~ 4 GHz |
| Resistance: | Inner conductor ≤ 2.0mΩ |
| External resistance: | ≤ 0.2mΩ |
| Insulation Resistance: | ≥ 5000MΩ |
| Withstand Voltage: | 1500V rms |
| Durability: | over 1000 times |
| Center Pin: | Brass |
| Frequency response: | DC to 8 MHz |
| Attenuation: | 0.5dB typ |
| Material: | Plastic and Copper |
| Working temperature: | -20°C ~ 75°C |
| Storage temperature: | -30°C ~ 85°C |
| Humidity: | 0% ~ 95%RH |
| Package: | 100pcs/pack, 30pack/carton |
| Weight: | Approx 1.35kg/100pcs/polybag |
| Remark: | 1.Simply & Professional appearance for cabling |
| 2.Easier for installation, save time and more securer cable connection |
Our Production :
---Powerful R&D team
---Wonderful design solution
---Perfect after-sales service
---Strict quality testing
---Rich cooperation experiences with Communication product manufactures
---Competitive price
FAQ
1. What's the Warranty of the Products?
Answer: In general, all goods with 12 month-warranty after the shipments .
2. How about the defective rate ?
Answer: Less than 1%.
3. Where can customers get the Product Specification and other datasheets?
Answer: we will send them via email once get the request from the customers.
Our high quality products , competitive price and professional service, be sure to meet your need for all kinds of components. ^_^
