RF Coaxial Connector (TOP-SMA-7-A)

Name: RF Coaxial Connector (TOP-SMA-7-A)
Brand: China-Manufacturer-Directory.com
SKU: 768477655
Availability: InStock
Rating: 4.5 (113 reviews)

Supplier:	TOP Electronic Industry Co., Ltd.
Price:	US $ 0.45-0.55/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	TOP-SMA-7-A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Connector:	SMA Female

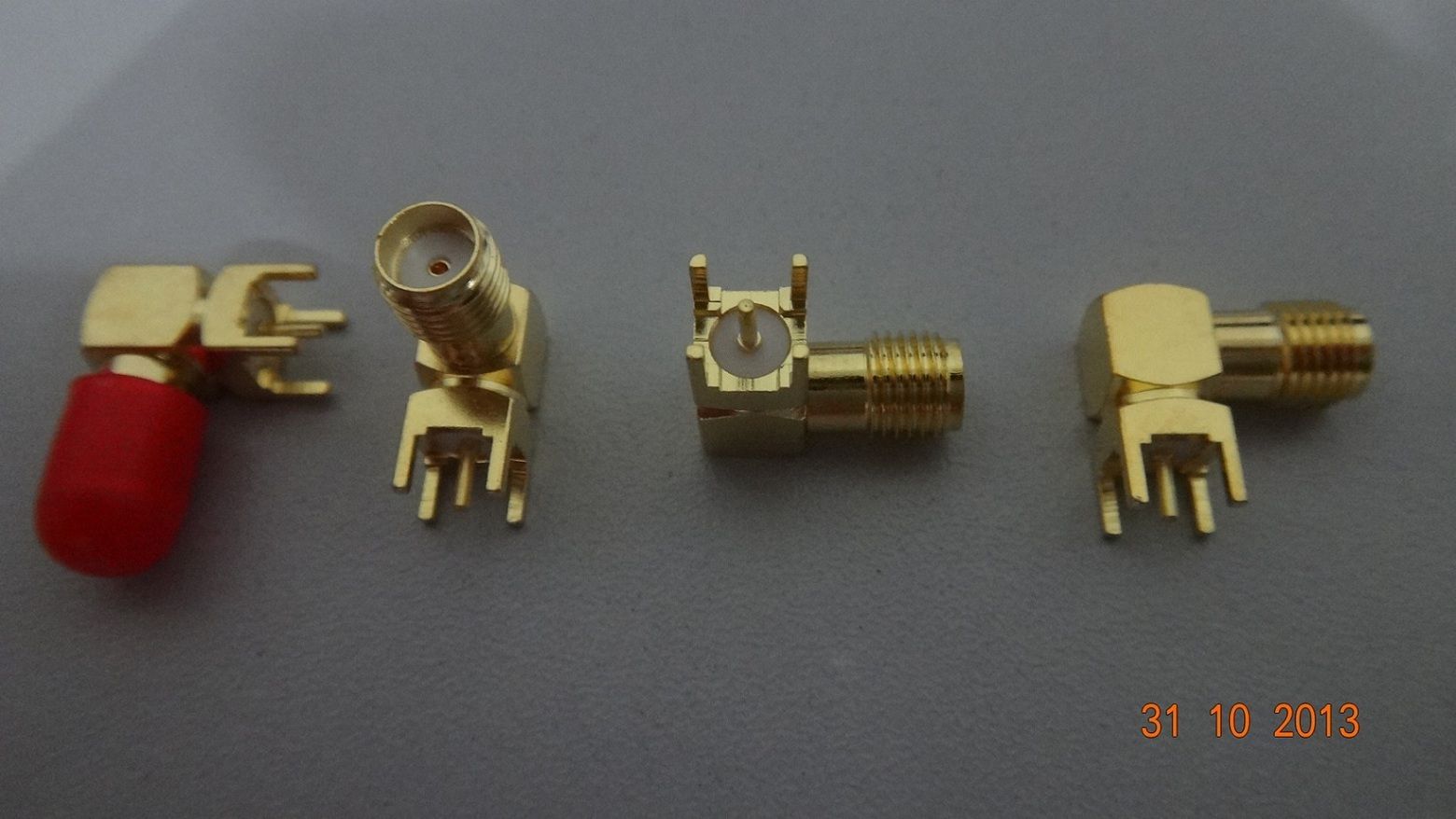

Used For:	SMA Right Angle RP Female for PCB

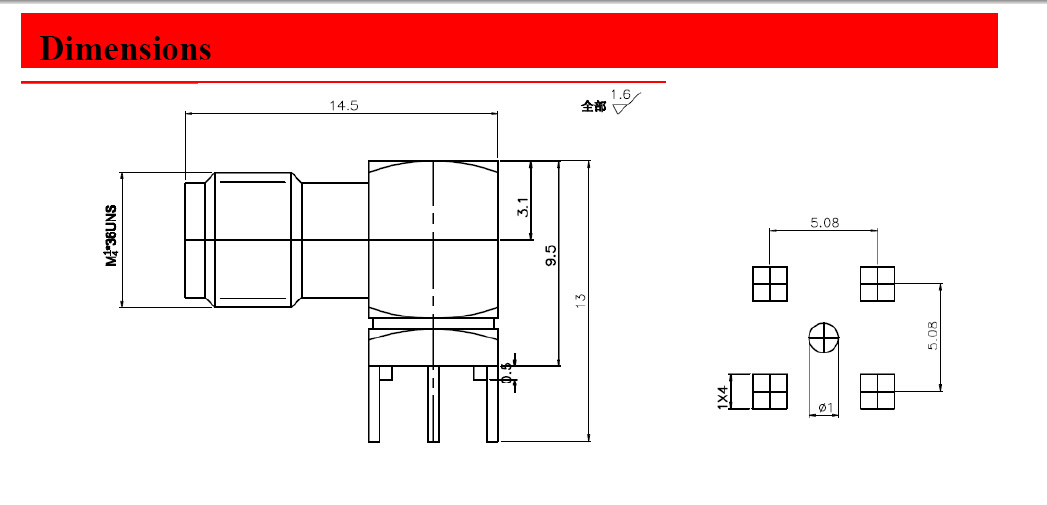

Size:	14.5*13
Type:	PCB Coaxial Connector

Product Description

SMA CONNECTOR

The SMA series are bayonetlock standard coaxial connectors,
with characteristic impedance 50 Ω or 75 Ω.
They have the characteristics of rapid engagement and disengagement, high reliability,
simple structure etc, are used to connect RF coaxial cables in IT, industrial network,
medical equipment, data communication, video systems and broadcast application

Impedance:	50Ω, 75Ω
Frequency range:	0 ~ 4 GHz
Resistance:	Inner conductor ≤ 2.0mΩ
External resistance:	≤ 0.2mΩ
Insulation Resistance:	≥ 5000MΩ
Withstand Voltage:	1500V rms
Durability:	over 1000 times
Center Pin:	Brass
Frequency response:	DC to 8 MHz
Attenuation:	0.5dB typ
Material:	Plastic and Copper
Working temperature:	-20°C ~ 75°C
Storage temperature:	-30°C ~ 85°C
Humidity:	0% ~ 95%RH

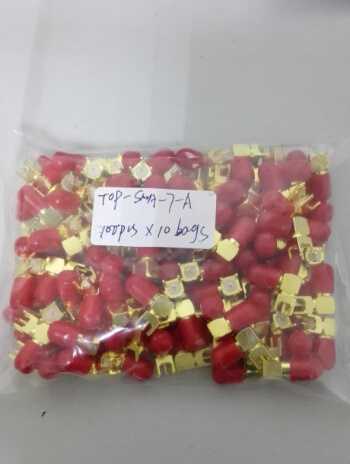

Package:	100pcs/pack, 30pack/carton
Weight:	Approx 1.35kg/100pcs/polybag
Remark:	1.Simply & Professional appearance for cabling
Remark:	2.Easier for installation, save time and more securer cable connection

Our Antenna :
---Powerful R&D team
---Wonderful design solution
---Perfect after-sales service
---Strict quality testing
---Rich cooperation experiences with Communication product manufactures
---Competitive price

FAQ
1. What's the Warranty of the Products?
Answer: In general, all goods with 12 month-warranty after the shipments .

2. How about the defective rate ?
Answer: Less than 1%.

3. Where can customers get the Product Specification and other datasheets?
Answer: we will send them via email once get the request from the customers.

Our high quality products , competitive price and professional service, be sure to meet your need for all kinds of components. ^_^
