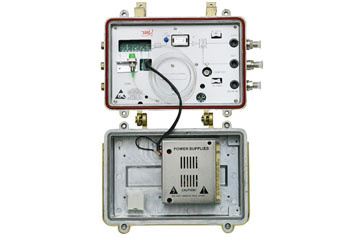

RFoG Optical Node (ZBL5061RB-2C/8)

Name: RFoG Optical Node (ZBL5061RB-2C/8)
Brand: china-manufacturer-directory.com
SKU: 675244662
Availability: InStock
Rating: 4.3 (139 reviews)

Supplier:	Zhejiang BC & TV Technology Co., Ltd.
Price:	Negotiable
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Hfc Equipment

Product Description

1. An optical receiver and transmitter equipment used in RFoG system.
2. High level output.
3. AGC controlled receiver with -7 to +2 dBm dynamic range.
4. LEDs to indicator Power on/off, Optical input power
5. Burst mode return transmitter

Item	Spec	Note
DownStream Characteristics
Optical Wavelength	1550± 10nm
Optical Input Level	+2dBm to -7dBm
AGC	6dBp-p
Optical Input Return Loss	> 45dB
Transmission Frequency Bandwidth	87 - 862MHz	Or 54-862MHz
Transmission Capacity	Analog Signal 55ch Digital Signal 39ch
Optical Modulation Index (OMI)	Analog 3.3%/ch Digital 1.0%/ch
Flatness	± 1dB
RF Output	Analog Signal: 104dBμ V/ch Digital Signal: 94dBμ V /ch
RF Output Return Loss	> 14dB
CNR	Analog: > 51dB Digital: > 41dB	Optical input level @0dBm
CSO	Analog: < -60dB Digital: < -50dB
CTB	Analog: < -65dB Digital: < -55dB
Return Path Characteristics
Wavelength	1610± 10nm	Or 1310± 10nm
Transmission Frequency Bandwidth	5 to 65MHz	Or 5 to 42MHz
Output Power	-3dBm to +4dBm
Laser Turn On Time	< 1.5μ s	Typ: 1.2μ s
Laser Turn Off Time	< 1.5μ s	Typ: 1.2μ s
Input Dynamic Range	+70dBμ V to +100dBμ V
Flatness	± 1dB
RF Input Return Loss	< 14dB
CNR	> 30dB
IM2	< -30dB	OMI 33%
IM3	< -35dB	OMI 33%
Compatible	DAVIC & DOCSIS2.0/3.0	Burst Mode

Zhejiang BC&TV Technology Co., Ltd. is a leading manufacturer specialized in providing digital TV headend, optical equipment, CATV network equipment, digital/analog TV meters, and Ethernet equipment for clients from all over the world.
Our company was founded by 7 companies and was chosen as the reform demonstration base authorized by Zhejiang Provincial Government.

We boast a regular staff of 120 members, among whom more than 80 graduated from university with one senior engineer, 15 senior engineers and 40 medium-grade professional title holders.

We offer optical transmitter, optical receiver, optical platform, optical workstation, EDFA, FTTH Node, CATV amplifier, agile QAM modulator, DS3 adopter, TS multiplexer, digital matrix switcher, digital/analog TV meter, 98/84chs PAL channel signal generator, and 110chs NTSC signal generator media converter.
