Product Specifications
| Prod Model: |
XLB-Q1500X2000X1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Xlb-Q1500X 2000X1 |
| Total Pressure(Mn): |
1000 T |
| Platen Size: |
1500X 2500mm |
| Daylight: |
400 mm |
| No Of Daylights: |
1 |
| Piston Stroke: |
400mm |
| Main Motor Power: |
11kw |
| Overall Dimension(Lxwxh): |
2810X 1550X 3325 mm |
Product Description

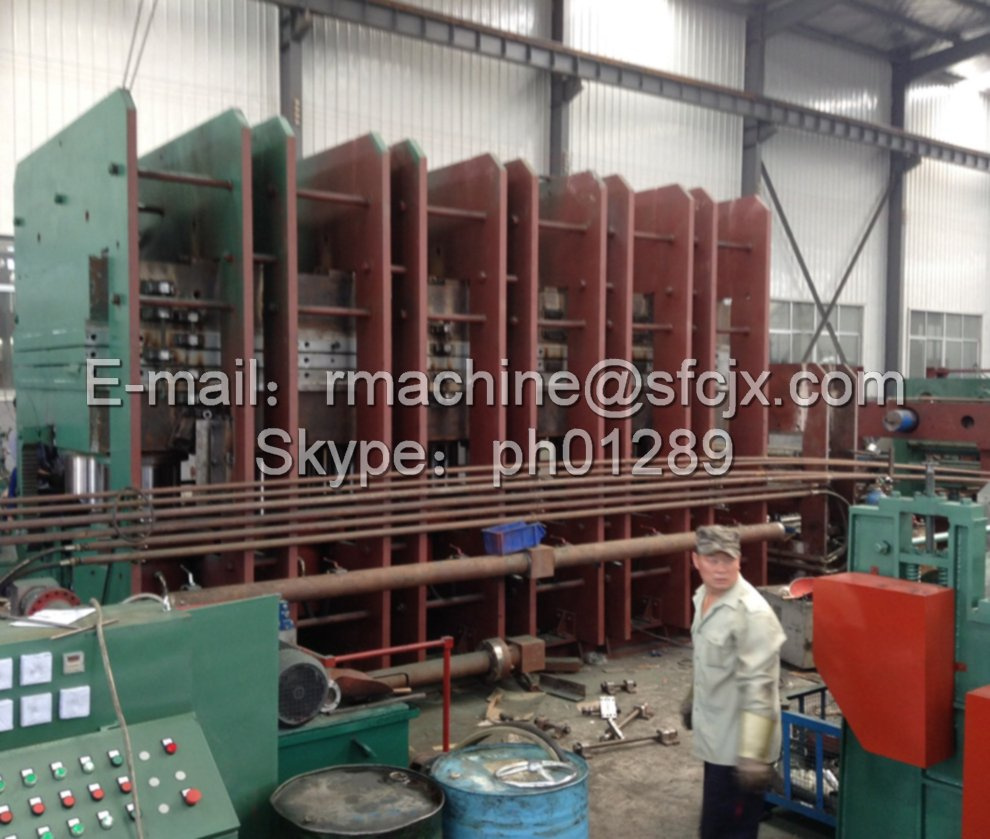

Conveyor Belt Curing Press, Steel Cord / Fabric Conveyor Belt Vulcanizing Press, Rubber Conveyor Belt Vulcanizing Press for Belt Production Line
Company:
1.20 years on conveyor belt vulcanizing press manufacturing and exporting.
2. Delivery within 90 days.
3. Safety wood or plywood crates packing.
4. Full transportation insurance.
5. Sell to 126 countries on 6 continents.
6. One-stop rubber machinery solution in Qingdao Shun Cheong.
Type:
Fabric core (nylon, convas etc. ), steel cord conveyor belt
Simple Introduction:
1. Conveyer Belt Vulcanizing press has compact body and can vulcanize big-type conveyor belt with a higher level of automation.
2. Conveyer Belt Vulcanizing Machine is applicable to vulcanize such conveyor belts as common rubber conveyor belts, nylon conveyor belts, steel cord conveyor belt and flame-retardant conveyor belt.
3. As the host machine use frame structure with micro fabrication and hot plate and piston all use superior-quality materials, so it is not apt to be corrosive wear and also has the following characteristics: Convenient maintenance, stably working pressure and convenient adjustment.
4. Conveyer Belt Vulcanizing Machine system is controlled by PLC so as to realize multi-program automatic control including automatic detection and the adjustment for hot plate temperature
5. All of the Conveyer Belt Vulcanizing Machine improve the whole level of the vulcanizing unit, reduce the worker's labour intensity and enhance the production efficiency.
6. In addition, our company can supply various type of Conveyor Belt Vulcanizing Unit according to customers' requirements.
| Type | XLB-DQ1200×1200x2 | XLB-DQ1300×2000×1 | XLB-Q1200×2500×1 | XLB-Q1500×2000×1 | XLB-Q2000×3000×1 |
XLB-Q1400×5700×1
|
| Total Pressure(MN) | 315t | 560t | 750t | 1000t | 1800t | 2800t |
| Plate Size(mm) | 1200× 1200 | 1300× 2000 | 1200× 2500 | 1500× 2500 | 2000× 3000 | 1400× 5700 |
| Daylight (mm) | 200 | 400 | 400 | 400 | 400 | 400 |
| Layer NO. | 2 | 1 | 1 | 1 | 1 | 1 |
| Piston Stroke(mm) | 400 | 400 | 400 | 400 | 400 | 400 |
| Plate Unit Area Pressure | 22 | 21.5 | 25 | 33.5 | 30 | 35 |
| Main Motor Power(kw) | 3 | 8 | 9.5 | 11 | 26 | 43.5 |
Overall Dimension
(L×WxH)(mm) | 1685×1320×2450 | 2000×1860×2500 | 2560×1700×2780 | 2810×1550×3325 | 2900×3200×2860 | 2400×5800×3600 |
| Weight(kg) | 9500 | 17000 | 20000 | 24000 | 66000 | 110000 |
Qingdao Shun Cheong Machinery Co., Ltd. (Original China Qingdao first Rubber Machinery Factory) was founded in 1968, which is a professional manufacturer in rubber machine field of China with high-tech technology. We have ISO9001: 2008, CE1282 and SGS certification. Our customers spread all over the world, such as the United States, Germany, Brazil, Singapore, Malaysia, India, Russia etc. Our company's major customers including: Michelin, Bridgestone Americas Tire Operations, LLC, Kumho, Cheng Shin Rubber Industry, United States Goodyear Tire & Rubber Company etc.
Reduce the production cost and supply high efficiency rubber machines are the target aim of our service. Our company is near from Qingdao steel factory and Qianwan port, which is largely lowering the logistics cost; Germany and United States' core talents and experienced engineers and outstanding technical teams have been introduced, constantly improving the R&D capability, with the advanced fabricating equipment to develop the world excellent rubber machine, satisfying the clients high requirements.
In order to supply better service for our customers, we also provide the conveyor belt production line, waste tire processing line, tire and other rubber products' producing on- site for customers to visit and consult.
1. Our company machines must pass inspection of 3-7 hours of load test operating before they leave the factory, thus saving customers' time and expense of equipment commissioning.
2. We provide one year's guarantee and once the equipment damage during this time we supply free of charge. In order to save maintenance time and reduce the production cost of the guests, you can contact our DCRC by email, MSN or Skype etc., and we will send professional technical personnel with English translation to you to solve equipment problems.
3. Our company establishes "CUSTOMER FILE" for sold equipment in the form of return visits regularly; Including equipment's maintenance, troubleshooting and customer feedback.
4. Complete after-sales service
