S-50 Switching Power Supply with Protection

Name: S-50 Switching Power Supply with Protection
Brand: China-Manufacturer-Directory.com
SKU: 761243695
Availability: InStock
Rating: 4.9 (137 reviews)

Supplier:	WENZHOU PNV TRADING CO., LTD.
Price:	US $ 3.0/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB,CIF

Product Specifications

Prod Model:	S-50
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Power: 1 - 50W:	Output Type: Single
Input Voltage: 85~132VAC/170~264VAC Or:	Model Number: .S-25-5 S-25-12 S-25-15 S-25-24
Output Voltage: 5V 12V 15V 24V:	Output Current: 5A 2.1A 1.7A 1.1A
Efficiency: 80%:	Certification: CE
Dimension: 999735mm:	Material: Aluminium
G.W: 0.39kg:	Guarantee: 2 Year Case
Output Type:	Single
Warranty:	2 Years
Output Power:	1 - 50W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CE

Product Description

Welcome,my friend!

Glad to introduce S-25 Switching Power Supply With Protection .

If you have any questions, please don't hesitate to ask me.

Product Description

Product Applications

Industrial Equipemnt Series:Shipping,Vehicle,Metalhalide Lamp,Solar System,Wind Power Generation ect.

Power Tools Series: Electric Saw , Drilling Machine,Sand blast Machine ,Puching Machine ,Weeding Machine etc.

Household Appliance series:Dust Collector , Fan Lamp or LED ,Sewing Machine etc.

Kitchen Appliance series: Microwave Oven , Fridge , Freezr , Coffemarker etc.

Office Series:Computer , Printer , LCD Monitor , Scanning Machine etc.

Model		S-25-5	S-25-12	S-25-15	S-25-24
Output	DC Voltage	5V	12V	15V	24V
	Rated Current	5A	2.1A	1.7A	1.1A
	Current Range	0~5A	0~2.1A	0~1.7A	0~1.1A
	Rated Power	25W	25.2W	25.5W	26.4W
	Ripple & Noise (max.) Note.2	50mVp-p	100mVp-p	100mVp-p	100mVp-p
	Voltage Range	4.75~5.5V	10.8~13.2V	13.5~16.5V	21.6~26.4V
	Voltage Tolerance Note.3	±2.0%	±1.0%	±1.0%	±1.0%
	Line Regulation	±0.5%	±0.5%	±0.5%	±0.5%
	Load Regulation	±1.0%	±0.5%	±0.5%	±0.5%
	Setup,Rise, Hold time	300ms, 50ms, 80ms/230VAC 800ms, 50ms, 10ms/115VAC at full load
Input	Voltage Range	85 ~ 132VAC / 170 ~ 264VAC selected by switch 240 ~ 370VDC
	Frequency Range	47~63HZ
	Efficiency(Typ.)	72%/115VAC	76%/115VAC	77%/115VAC	80%/115VAC
	AC Current	0.6A/115VAC 0.35A/230VAC
	Inrush Current (max.)	COLD START 15A/115VAC 30A/230VAC
	Leakage Current
Protection	Over Load	110~115% rated output power
		Protection type : Hiccup mode, recovers automatically after fault condition is removed.
	Over Voltage	5.75V~6.75V	13.8V~16.2V	17.25V~20.25V	27.6V~32.4V
		Protection type : Hiccup mode, recovers automatically after fault condition is removed.
Environment	Working Temperature	-10 ~ +60°c (Refer to output load derating curve)
	Working Humidity	20~90% RH Non-condensing
	Storage temp.& humidity	-20~+85°C, 10~95%RH
	Temp. coefficient	±0.03%/°C (0~50°C)
	Vibration	10 ~ 500Hz, 2G 10min./1 cycle,60min.each along X,Y,Z axes
Safety & EMC (Note 4.)	Safety Standards	UL1012, TUV EN60950-1 Approved
	Withstand Voltage	I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
	EMI Conduction & Radiation	Compliance to EN55022 (CISPR22) Class B
	Harmonic Current	Compliance to EN61000-3-2,-3
	EMS Immunity	Compliance to EN61000-4-2,3,4,5; ENV50204, EN55024, Light industry level, criteria A
Others	MTBF	330.8K hrs min. MIL-HDBK-217F (25°c )
	Dimension	*999736mm (LWH)*
	Packing	0.39Kg; 45pcs/18Kg/0.9CUFT
Note	1. All parameters NOT specially mentioned are measured at 220VAC input, rated load and 25°C of ambient temperature.
	2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 10uf parallel capacitor.
	3. Tolerance: includes set up tolerance, line regulation and load regulation.
	4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.

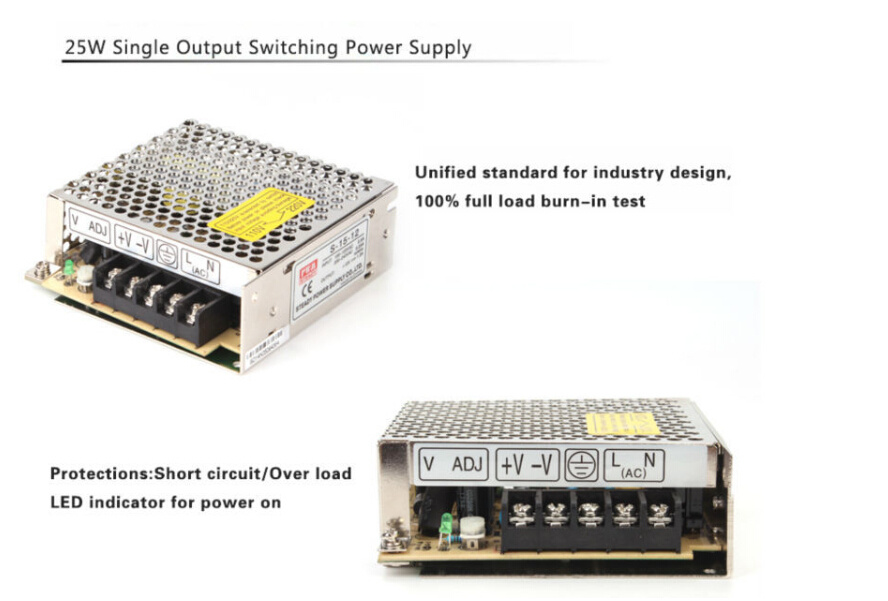

Features

AC input Range Selected By Switch Lost Cost

Protections:Short circuit/Over load Cooling By free Air Convection

100% Full Load Burn-In Test Fixed Switching Frequency at 37KHz

High Reliability 1 Years Warranty

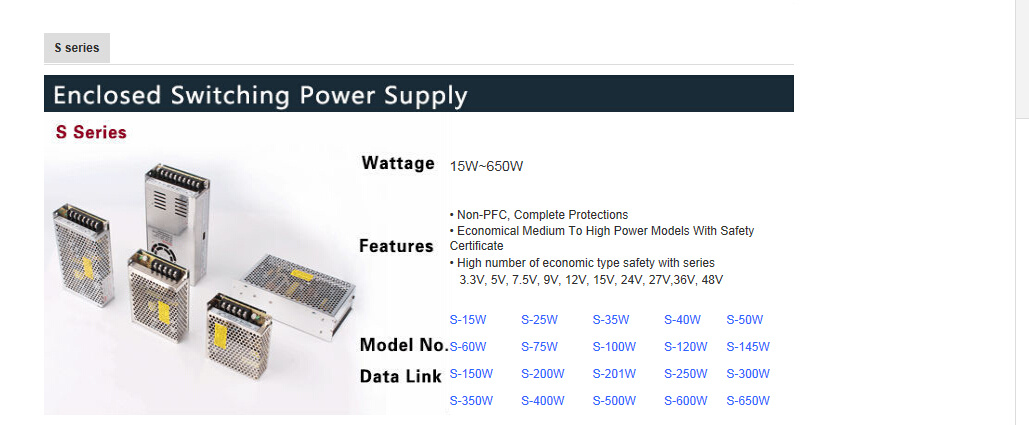

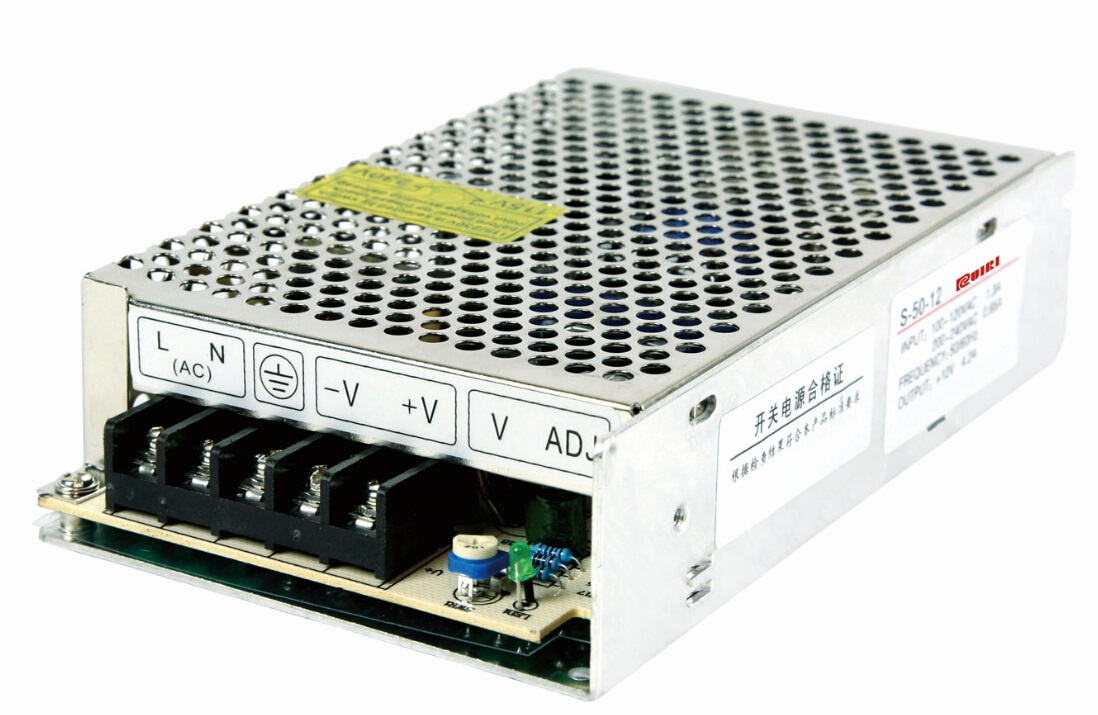

Model Show
