Product Overview:
Multifunction power meter is a kind of integrated power monitoring meter which has the function of ammeter, voltmeter, power meter, power factor meter, and watt-hour meter. RS485 communication interface connects the meter to the computer network monitoring center. It is a kind of high-performance automatic meter which is suitable for industrial and mining enterprises, civil construction, building automation and some other modern distribution system.
Multifunction power meter is used for comprehensive collection of 50/60Hz power supply system electrical parameters. It can measure and display three-phase voltage, three phase current, active power, reactive power, power factor, frequency, active power (accumulation) and the reactive power (accumulation). The electric energy value is only used for the enterprise internal secondary measurement assessment and accounting instead of valuation measurement and pay for access.
Standard Configuration:
1.The meter measures three-phase voltage, three phase current, active power, reactive power, power factor, frequency, active power (accumulation) and the reactive power (accumulation) on the electrical grid.
2.Standard CT, PT or voltage signals are input directly
3.A wide range of AC-DC general power AC/DC80-265V or AC 220V
4.LCDdisplay mode with wide angle of view and white background. All parameters can be set through the display panel buttons.
5.It has RS-485 communication interface (optically isolated), Mod Bus RTU communication protocol.
6.It uses the installation of disk opening with a hole.
Dimension:120*120mm 96*96mm 80*80mm 72*72mm
Hole size:112*112mm 91*91mm 76*76mm 67*67mm

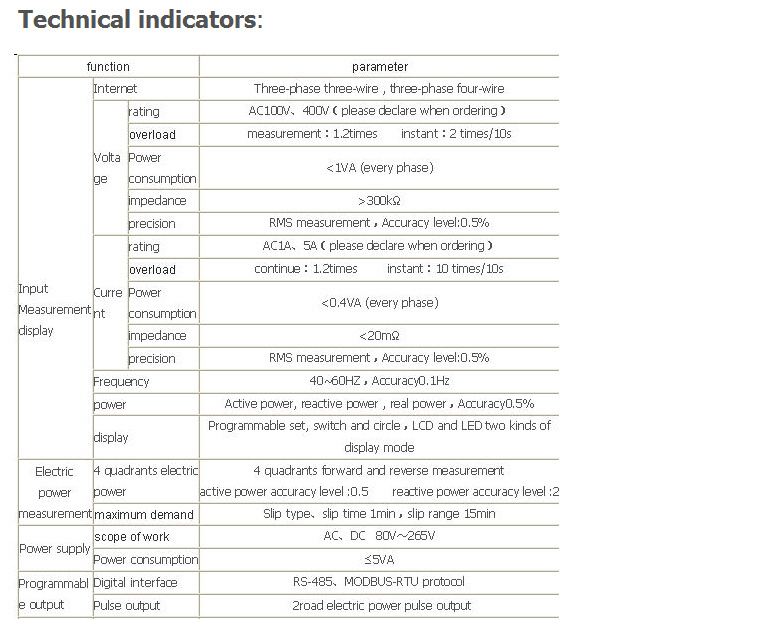

Technical indicators:
Order example:
Example 1: Three-phase multifunction power meter
Signal input: AC380V (input voltage) 100/5A (Current ratio)

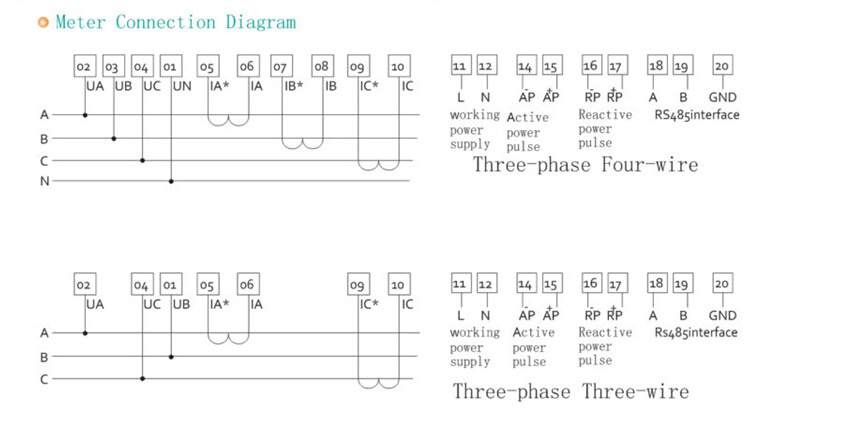

Connection mode: three-phase four-wire
Power supply: AC220V or AC/DC80-265V
Other: (In accordance with the default factory settings if not stated)
Example 2: Three-phase multifunction power meter
Signal input: AC10/0.1KV (input voltage)100 /5A(current ratio)
Connection mode: three-phase three-wire
Power supply: AC220V or AC/DC80-265V
Other: (In accordance with the default factory settings if not stated)
| Prod Model: | DR-100 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display Type: Digital Only: | Phase: Three Phase |
| Measuring Energy Range: 0-9999: | Operating Temperature: -10~55°c |
| Dimensions: 120*120mm 96*96mm 80*80mm: | Features: Three-Phase Multifunctional Power |
| Characteristics: Three-Phase Multifunct: | Output Voltage: AC 220V |
| Display: | Digital |
| Installation: | Direct Connected |
| Usage: | Maximum Demand Meter |
| Electric Equipment: | Three-phase Four-wire |
| Theory: | Electronic Meter |
| Power Meter Connection: | Feed-through Type |
| Measured Signal: | Continuous Wave |
| Type: | Power Meter |
