Shanghai YingXin World Machinery Co., Ltd. >> Sand or Earth Loading Machine Loader (W153)

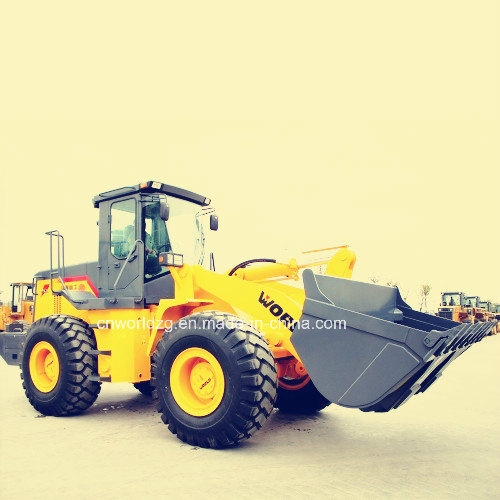

Sand or Earth Loading Machine Loader (W153)

Name: Sand or Earth Loading Machine Loader (W153)
Brand: china-manufacturer-directory.com
SKU: 737101645
Availability: InStock
Rating: 5 (62 reviews)

Supplier:	Shanghai YingXin World Machinery Co., Ltd.
Price:	US $ 45000-55000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	W153
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Machine Type:	Loader 5ton, Middle Size
Application:	Earth Moving, Loading Machine
Bucket Capacity:	3m3
Rated Load:	5000kg
Operation Weight:	16600kg
Engine:	Cat C6121
Gearbox:	Zl50
Tyre Size:	23.5-25
Cabin:	with Air Conditioner
Warranty:	One Year
Type:	Medium-sized Loader
Walking Mode:	Wheeled
Load And Unload Method:	Front Discharge
Certification:	ISO9001: 2000
Condition:	New

Product Description

machine loader

Features:

1) Middle wheel base and small turning radius is better to work in small site
2) Shangcai C6121 engine with less oil consumption, low noise and small emissions
3) Best hydraulic cylinders, pumps and valves
4) Coaxial flow amplifying steering priority system improves steering performance
5) Increased balance weight improves the stability of the complete loader

Specifications:

Basic Data
Bucket capacity	3 m³
Rated load	5000 kg
Operation weight	16600 kg
Dumping height	3050 mm
Dumping reach	1152 mm
Breakout force	150 kN
Traction force	160 kN
Wheel base	2920 mm
Total hydraulic cycle time	11 s
Full bucket lifting time	5.7 s
Min. turning radius	6178 mm
Overall dimension(L×W×H)	7749×2845×3451 mm
Engine
Model	C6121
Rated power	160 kw
Rated speed	2200 rpm
Max. torque	908 N.m
Fuel consumption	228 g/kw.h
Transmission System
Gear box type	planetary hydraulic shift
Forward speed I	13 km/h
Forward speed II	38 km/h
Reverse speed	17 km/h
Torque converter type	single stage 4 elements
Axle type	four-wheel drive
Tire size	23.5-25-16PR

World Group was established in 1988. The main products include wheel loaders, hydraulic excavators, power presses, wheel tractors, combine harvesters, lawn mowers and crankshafts for diesel engines.

We can supply 3 ton and 5 ton wheel loaders, 1.8 ton, 6 ton, 8.5 ton, 15 ton, 24 ton, 33 ton, 36 ton and 42 ton excavators, from 25 ton to 500 ton C-frame and H frame power presses, 40-120HP tractors, 18" to 60" lawn mowers, wheel and crawler combine harvesters for wheat and rice, etc.

Great manufacturing ability and matured technology are the major advantages of World Group. High reliability and durability are the ever lasting endeavor of World Group.

Shanghai Yingxin World Machinery Co., Ltd is a subsidiary company of World Group, which is appointed to be fully in charge of the overseas business of World brand products.

Now we are looking for dealers and distributors to promote our products in worldwide markets. If you are interested, please visit for more information about us.
