Product Specifications
| Prod Model: |
KF188 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pitch: |
5.08mm 7.50mm 7.62mm 10.0mm 10.16mm |
| Application: |
Battery |
Product Description

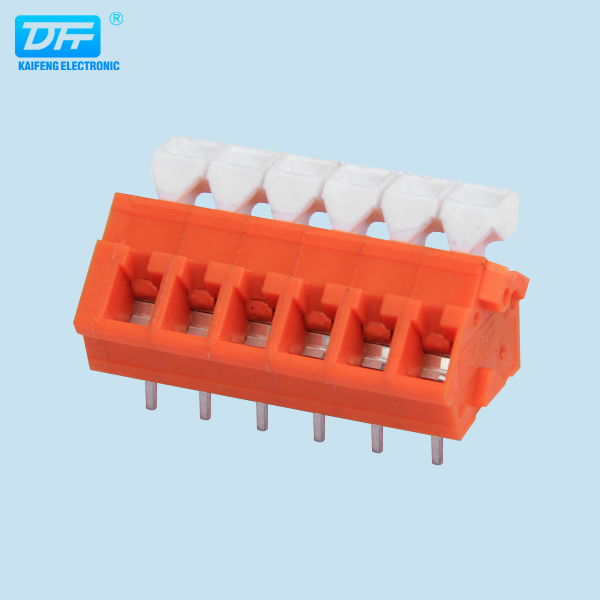

Screwless Terminal Blocks spring type connector
MATERIAL
Pitch: 5.08mm 7.5mm 7.62mm 10.00mm 10.16mm
Pin header: Brass, Tin plated
Housing: PA66, UL94V-0
ELECTRICAL
Rated voltage: 300V
Rated current: 15A
Contact resistance: 20mΩ
Insulation resistance: 5000MΩ /1000V
Withstanding voltage: AC1500V/1Min
Wire range: 28-12AWG 2.5mm²
MECHANICAL
Temp. Range: -40º C to +105º C
MAX Soldering: +250º C for 5 Sec.
Strip length: 5-6mm.
Drawing of？Screwless Terminal Blocks Spring Connector (KF188)
|
Part number |
KF188 |
|
Pitch |
5.0, 5.08, 7.5, 7.62mm,10.16mm |
|
Material |
PA66, UL94V-0 |
|
Rated voltage/current |
300V/15A |
|
Contact |
Phosphor bronze |
|
Wire range |
28-12AWG 2.5mm² |
|
Strip length |
5-6mm. |
|
Temp. Range |
-40C~+105C |
|
package |
we packed in the standard cartons:28*28*42cm,or as your requirement. |
|
Payment |
100% TT before shippment |
