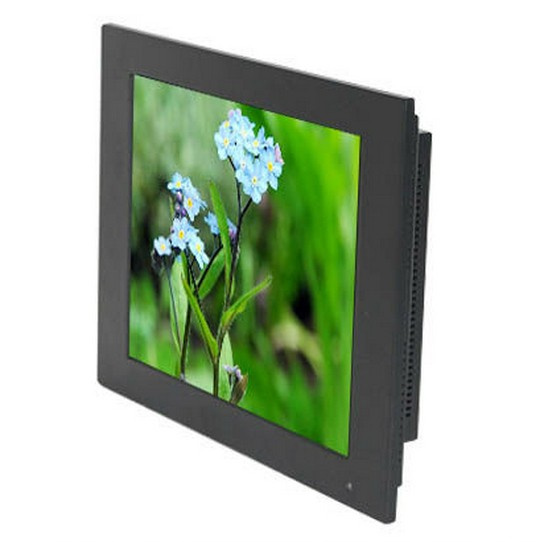

12.1 inch Intel N2600+NM10 All-in-one Panel PC
Feature Descriptions:
Various sizes from7"--46" such as: 7", 8", 10.4", 12.1". 15", 17", 18", 19", 20", 21.5", 22", 24"26"32"37"40"42"46"
1. Intel N2600+NM10
2.16GB high speed solid state disk (optional)
3. Fanless panel pc without nosie
4. Sumsang panel, High configuration, vibration proof
5. Wide temperature and humidity
6. Open Frame touch( or industrial panel PC with aluminum bezel optional)
7. Any customized service
8. CE, RoHS, FCC, CCC certificates.
9. For medical panel PC, marine panel PC, for information display, embedded in industrial automatic device
|
Specification |
|
Item |
Project |
Parameter |
|
LCD Display |
Display Type/Size |
Color TFT LCD/12.1″ |
|
Active Display Area (mm) |
248mm(W)×186mm(H) |
|
Display Mode |
4:3 |
|
Max Resolution |
800×600 |
|
Support Color |
16.7M |
|
Luminance(cd/m2) |
450cd/m2 |
|
Backlight |
CCFL backlight (optional) |
|
Contrast Ratio |
500:1 |
|
Response Time |
8ms |
|
Pixel Pitch |
0.3075(H)×0.3075(V) |
|
Viewing Angle |
110/140(H/V) |
|
Processor System |
Chip set |
Intel NM10 |
|
CPU |
Intel N2600 |
|
Internal memory |
DDR3 (800/1066/1333MHz) Typ. 2G (Max 4G)(optional) |
|
Hard disk |
16GB high speed solid state hard disk (optional) |
|
HDMI ports |
1xHDMI Port |
|
COM ports |
Defaultx2 COM(optional) |
|
Ethernet ports |
Two Realtek 8111E 1000 Mbps /(optional Wi-Fi connectivity supporting 802.11 a/b/g.) |
|
Audio |
with Realtek ALC662
Line-In/Line-Out/Speaker out with 3W AMP Circuit |
|
USB ports |
Defaultx4 USB(Max x6) |
|
Touch Type(optional) |
TouchScreen Type |
Resistive(4-wire/5-wire) |
|
Optional Touch Type |
SAW, IR, Capacitive |
|
TouchScreen interface |
USB or Serial (RS232) |
|
Power supply |
Input Voltage |
DC12V 3A |
|
Output Rating |
<=20W |
|
Temperature Range |
Operating Temperature |
-20~70ºC |
|
Storage Temperature |
-20~70ºC |
|
Relative Humidity |
20(%RH)~90(%RH) |
