Product Specifications
| Prod Model: |
A1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Currency Detector |
| Certification: |
CE |
Product Description
Model Number: A1
Operation Temperature: 5~40° C
Working Condition: Indoor 24/7
Dimensions:
Gross Weight:

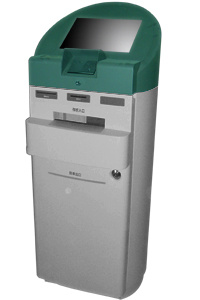

A1 is a selfservice touchscreen bank pass and list printing kiosk for payment. It has all the component for the banking services: Bank pass printing, list printing, invoice printing(optional) and bank card payment as well as receipt printing for it.
With a decent commercial grade host computer, it features a fast working kiosk in bank environment which is always air-conditioned. It hasn't adopt the industrial computer to optimize the cost and provide a faster CPU with minimum budget for banks.
A1 also features a perfect design on the footprint. The size is very small, and it can place almost every where in the bank without worry about the footprint of the kiosk.
OEM/ODM is also welcome.
Applications:
Payment
Bank pass printing
List printing
Information
Service.
|
|
|
FEATURES |
Compact design with commercial host computer, touchscreen monitor,bank card reader, EPP,thermal printer, list printer, UPS and bank pass printer Waterproof infrared touchscreen monitor
|
|
Hardware Configurations&Specifications |
|
|
Host: |
CPU:Intel Core i3 i2100
Motherboard: Intel B75 commercial motherboard
RAM: 4G DDRIII
HDD: 60G SSD |
|
|
Display: |
Size: 17" TFT LCD(LED backlighted)
Resolution: 1024 x 768
Brightness: 500 cd/m
Viewing Angle: 178/178 |
|
|
Touch Screen: |
Optical infrared or SAW touch screen
Calibration: Once-Only, Four Points With no Drift
Touch material: Finger, Gloved Hand or Any Other Pointer
Activation force: No Pressure Required for infrared touch
Response Time: 8ms |
|
|
3DES EPP keypad: |
Keys: 16 keys
Cryptography: 3DES
Keys: laser print or chemical etch keys filled with color ink
Super durability: over 2,000,000 times with 0.45mm knock gap
Press strength:3N with temperature range -40~65C |
|
|
Bank card reader: |
Motorized magnetic&IC card readable type,Can confiscate card
EMV Ver.4.0 compliant for IC and magnetic card
ISO/IEC 7811 JIS X6301/6302 tr1&2&3 read
ISO/IEC 7816JIS X6303 R/W; Protocol:T=0,1; EMV handling:EMV4.0
Full insert shutter
Interface: USB, RS232C; Power, 12V |
|
|
Receipt Thermal Printer: |
Themal Printer, Paper width:80mm,
Paper roll: 180mm, Thickness:60 to 120g/m2
Print Speed: 220mm/s,resolution: 203 dpi (8 dots/mm)
Automatic cutter only;out alarm/to be run out alarm,Jam
Data buffer: 16 KB,Flash memory: 384 KB,Graphics memory: 2 logos
OMR,Black mark sensor,remote accessible Full Status Monitor Driver
Interface: RS232 / USB / Ethernet |
|
|
Passbook Printer: |
Printer head lifespan: more than 400,000,000 actuations
All language character set optional
Temperature:5-35C, RH 15%-85% NC
Cartrige dot duration: 3,000,000 times actuations
Speed: >= 460CPS
Reliability: MTBF>=10000, MTTR<=30min
Compatibility: Support IBM and OKI simulation |
|
|
List printer(optional): |
Themal Printer, Paper width:210/216 mm;Head life 50 Km / 100M pulses
Print Speed: 180mm/s; Resolution 203 dpi; Roll dimension max 250mm
Automatic cutter;out alarm/to be run out alarm,Jam
Power supply 24 Vdc ± 10%;Power consumption 3 A
OMR,Black mark sensor
Interface: RS232/USB |
|
|
UPS: |
Voltage range:170V~255V
Power Rate:0.5KVA/260W
Capacity:12V/32W×1
Transfergap:6ms;Overload power:450W
Self-protection;overload protection;Error led alert; RJ45/RJ11
Interface USB/RS-232 |
|
|
Camera: |
CMOS
300,000 pixel with wide angel lens;Dynamic resolution:640×480
Support Insert Value upto 1.3m pixel;
With adjustable rubber base and quick snap button
Builtin microphone; smart face detection
Interface: USB 2.0 |
|
|
Audio: |
Bi-channel amplified output;
Multimedia stereo speaker |
|
|
Enclosure: |
1.5mm all steel anti-graffiti enclosure |
|
|
Add-ons |
Custom LOGO plate,custom painting, low noise ventilation fans,mechanic locks and keys,power cable, LAN cable, antenna(WIFI&3G/GPRS),fuse,expansion bolt
|
|
|
|
Software Specifications |
|
|
Operating System: |
Windows XP,7,
Mac O/S
|
|
|
Applications: |
Payment
Bank pass printing
List printing
Information
Service
|
|
|
Accessories |
|
|
Included: |
AC Power Cord
LAN cable
User Manual
Drivers CD |
|
|
Optional: |
External Stereo Speakers
External PC
2nd display |
|
|
Physical Characteristics |
|
|
Weight: |
|
|
|
Size: |
|
|
|
Color: |
Beige, Grey, Black or other color |
|
|
Environmental: |
5-40 Degrees (c)
20-80% Humidity
Power Consumption 600 Watts |
|
