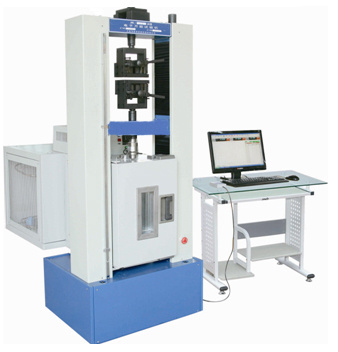

SGS Cmt Universal Testing Machine

SGS Cmt Universal Testing Machine
Supplier: SUZHOU CMT IMP&EXP CO., LTD.
Price: Negotiable/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: FOB,CFR,CIF
contact supplier

Product Specifications

Prod Model: CMT
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimensions: 600X750X1700mm
Power Supply: AC380V, 50Hz, 1.5kw
Test Speed: 1~100mm/Min
Tensile Travel: 550mm
Max. Force: 10kn, 20kn, 30kn, 50kn 100kn, 200kn
Force Error: ≤±1.0%
Force Resolution: 1/50000 of Max. Force
Temperature Range: Rt~100±2
Temperature Fluctuation: ≤±1.5
Type: Universal Testing Machine
Weight: 100-500Kg
Power Source: AC380V

Product Description

Application: It is suitable for tensile, compression, bending, shearing, peeling, tearing and other mechanics performance tests of plastics, rubber, textile, geosynthetics, non-metallic and composite materials.

Features:

HY4200A with high temperature chamber, HY4200B with high & low temperature chamber

Computer control, modular program design

Test result with automatic storage
Technical Specification
ModelHY4200AHY4200B
Max. force    10kN, 20kN, 30kN, 50kN
100kN, 200kN
10kN, 20kN, 30kN, 50kN
100kN, 200kN
Force error≤±1.0%≤±1.0%
Force resolution1/50000 of max. force1/50000 of max. force
Temperature range  RT~100±2-40~100±2
Temperature fluctuation≤±1.5≤±1.5
Test width410mm410mm
Tensile travel550mm550mm
Test speed1~100mm/min1~100mm/min
Power supplyAC380V, 50Hz, 1.5kwAC380V, 50Hz, 1.5kw
Dimensions600×750×1700mm 600×750×1700mm
Weight400kg400kg
Suzhou CMT, an international technology-oriented engineering group company, specialized in Turnkey Projects, technology consulting services and equipments manufacturing.

We have strong technical support. There are more than 2000 personnel in CMT, of which 60% are professional technicians. Around 50 are Middle and senior engineer and over 80 personnel own professional registered certificates.

The head office is located in Suzhou. It is equipped with more than 10 manufacturing bases all over China, spreading from Shanghai, Jiangsu, Shandong, Hebei, Hubei, Shanxi, etc. We are involved in many aspects, including Machinery, pharmaceutical chemicals, municipal utilities, power, electronics, building materials, energy saving, environmental pollution control projects, etc, offering project consulting, project designing, project managing, materials and equipments supply, project construction and running etc.

After all these years, our technology and service have been exported to more than 50 countries in the world, especially in Asia, the Middle East, Africa and the Americas, which earns us a great reputation. We adhere to the principle of "Quality first, service-orientation"and try to provide the best service. We warmly welcome you to our company and create brilliance together!
