Facility basic summary

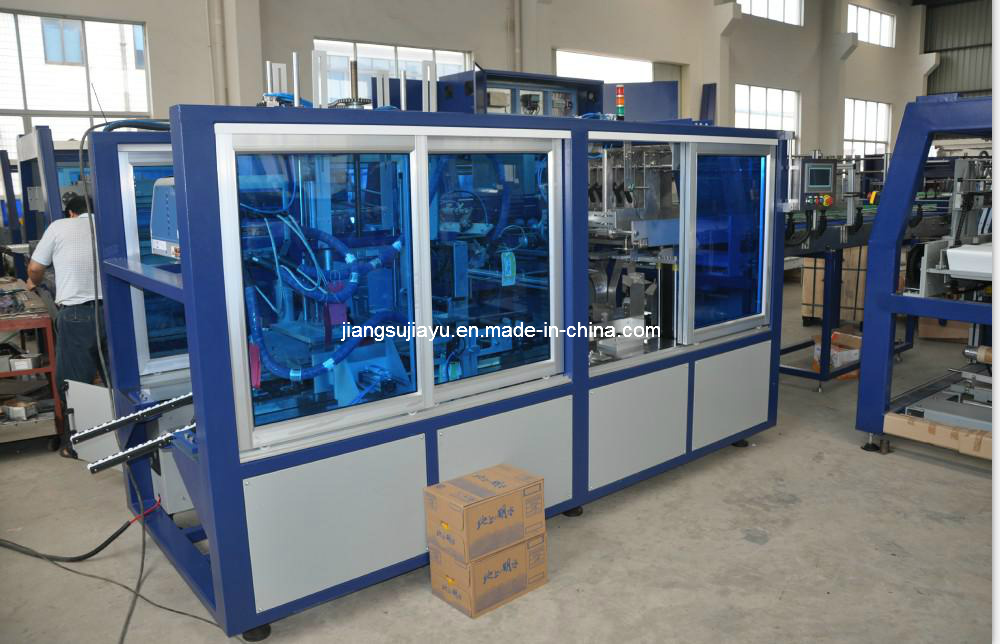

The machine adopt to servo location, PLC controlling, auto operation, main drive adopt to import motor drive, multi degree rotation via chain, chain wheel speed regulator ect. It auto degree is high, reliable controlling, easy to adjust, intelligentize manipulation ect advantage, can widely used for beverage, beer, chemistry, food, medicine ect industry, can do all kind of tin and bottle second time package, can match with auto filling production line.
Main parameter
Product capacity: 25carton per minute
Rating power: 10KW
Used power supply: Three phase, 380V, 50Hz
Controlling power supply: 24V DV
Compressor air: 1500L per minute, 0.6-0.8Mpa
Hot melting glue solidify time: 1.5-2S
Machine weight: 3500kg
Overall size: L6285*W2582*H2115MM
Bottle entry conveyor size: L3000*W620*1200MM
Package product overall size:
Length 350-450, Width 230-330mm, Hieght: 85-320mm;
Package bottle diameter: D55-108MM
Cardboard requirement: Accord with international GB/T6544-2008
Carton package procedure flow:
Bottle are separated to multi channel at conveyor, and then group by bottle separate fracture evenly. Bottle are grouped, then drop to cardboard via bottle drop fracture. At drop fracture with bottle and cardboard fall procedure, via one group of form block board, then card board fold to carton form. Via main drive with carton move forward, at the same time, via glue spray fracture to finish carton top glue spray, again the cam fracture via top ledge fold, at the same top carton fold to finish top sticking. Carton move forwarder, again via glue spray fracture to finish carton side glue spray, and via side pressure and carton press fracture to finish carton finally form and sticking, and via main drive let carton move forwarder to conveyor.
|
Package product |
Package specification |
Capacity |
Applied bottle type |
|
200ML-400ML |
4*6,4*5,3*4or 3*5,2*3 ect |
15carton/minute |
PET/Tin/Glass bottle |
|
300ML-500ML |
4*6,4*5,3*4or 3*5,2*3 ect |
15carton/minute |
PET/Tin/Glass bottle |
|
300ML-600ML |
4*6,4*5,3*4or 3*5,2*3 ect |
15carton/minute |
PET/Tin/Glass bottle |
|
500ML-1250ML |
3*4,2*3ect |
15carton/minute |
PET/Tin/Glass bottle |
|
1250ML-2500ML |
2*3,2*2ect |
15carton/minute |
PET/Tin/Glass bottle |
