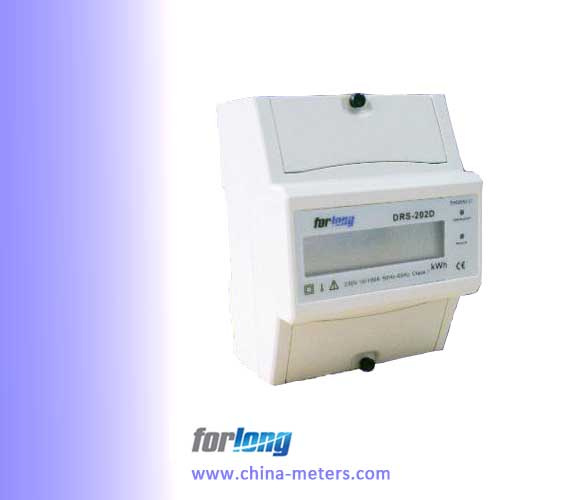

Single Phase Two Wires Energy Meter DRS-202D

Name: Single Phase Two Wires Energy Meter DRS-202D
Brand: china-manufacturer-directory.com
SKU: 668950802
Availability: InStock
Rating: 4.9 (77 reviews)

Supplier:	Shanghai Fengyilong Electronic Co., Ltd.
Price:	Negotiable
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Electric Equipment:	Single-phase
Installation:	General Installation Meter
Power Source:	AC Meter
Theory:	Electronic Meter
Usage:	Standard Electric Energy Meter

Product Description

Single phase two wire DIN Rail Energy meter

DRS-202D

Single-phase electricity Energy meter for DIN-rail mounting (four modules).

Active energy measurement in single phase two wires alternating current circuits. Displayed by LCD. DRS202-D has recently been approved according to the European Measuring Instrument Directive.

Standard compliance
GB/T17215-2002
IEC62053-21: 2003

Features
DIN rail mounting
Wide rage current measurement
SO output
High accuracy, stability
Small size, light weight
Low power consumption
Easy installation
Four modules

Accuracy Class	1
Reference Voltage ( U_n)	110/120/220/230/240V AC
Operating Voltage	0.7-1.3 U_n
Impulse Voltage	6kV 1.2μ s waveform
Rated Current (I_b)	1.5/5/10 A
Maximum Rated Current (I_max)	6/60/100 A
Operating Current Range	0.4% I_b~ I_max
Operating Frequency Range	50Hz± 10%
Internal Power Consumption	< 2W/10VA
Operating Humidity range	< 75%
Storage Humidity range	< 95%
Operating Temperature range	-10º C ~+50º C
Storage Temperature range	-30º C - +70º C
Overall dimensions(mm)	130× 76× 65
Weight(kg)	about 0.2kg (net)
Display	LCD

Shanghai Fengyilong Electronic Co., Ltd. is an experienced manufacturer of electronic meters, and has its headquarter in Shanghai, China and subsidiary factory in Jiangsu province. As a member of National Instrument & Meter Associations, we have involved in drafting our National Standards for instruments & meters.

We are an ISO9001 company, we have very good quality control mechanism on production process. We have our dinrail energy meter, prepayment energy meter, socket energy meter CE approved.

We have our own import and export rights and possess skillful import & export operating persons as well.

Here we are highly honored to enter into your business line, so we heartily wish to serve you with our good products. We also hope that we can join our hands to work hard for our mutual future.

You are welcome to visit our showroom.
