Single Screw Extrusing Machinery
Product Specifications
Prod Model: |
SJ130 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |

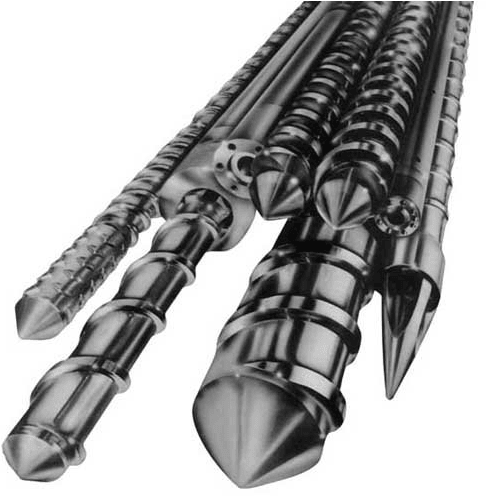

Screw And Barrel Material: |
38crmoala |
Surface Treatment: |
Nitrogen Polished |
Gearbox: |
Made in Jiangyin |
Frequency Converter/Speed Adjuster: |
ABB |
Electrical Controller: |
Siemens |
Temperature Control: |
Rkc |
Voltage: |
380V or Be Customized |
Machine Color: |
Blue or Be Customized |
Certificate: |
ISO9001:2008,SGS |
Engagement System: |
Full Intermeshing |
Screw Channel Structure: |
Deep Screw |
Screw: |
Single-Screw |
Automation: |
Automatic |
Computerized: |
Computerized |
Plastic Processed: |
PE |
Feeding Mode: |
Multiple Feed |
Product Type: |
Extrusion Molding Machine |
Assembly Structure: |
Integral Type Extruder |
Type: |
Pipe,Sheet,Profile etc |
Exhaust: |
Exhaust or Don't Exhaust |
Product Description

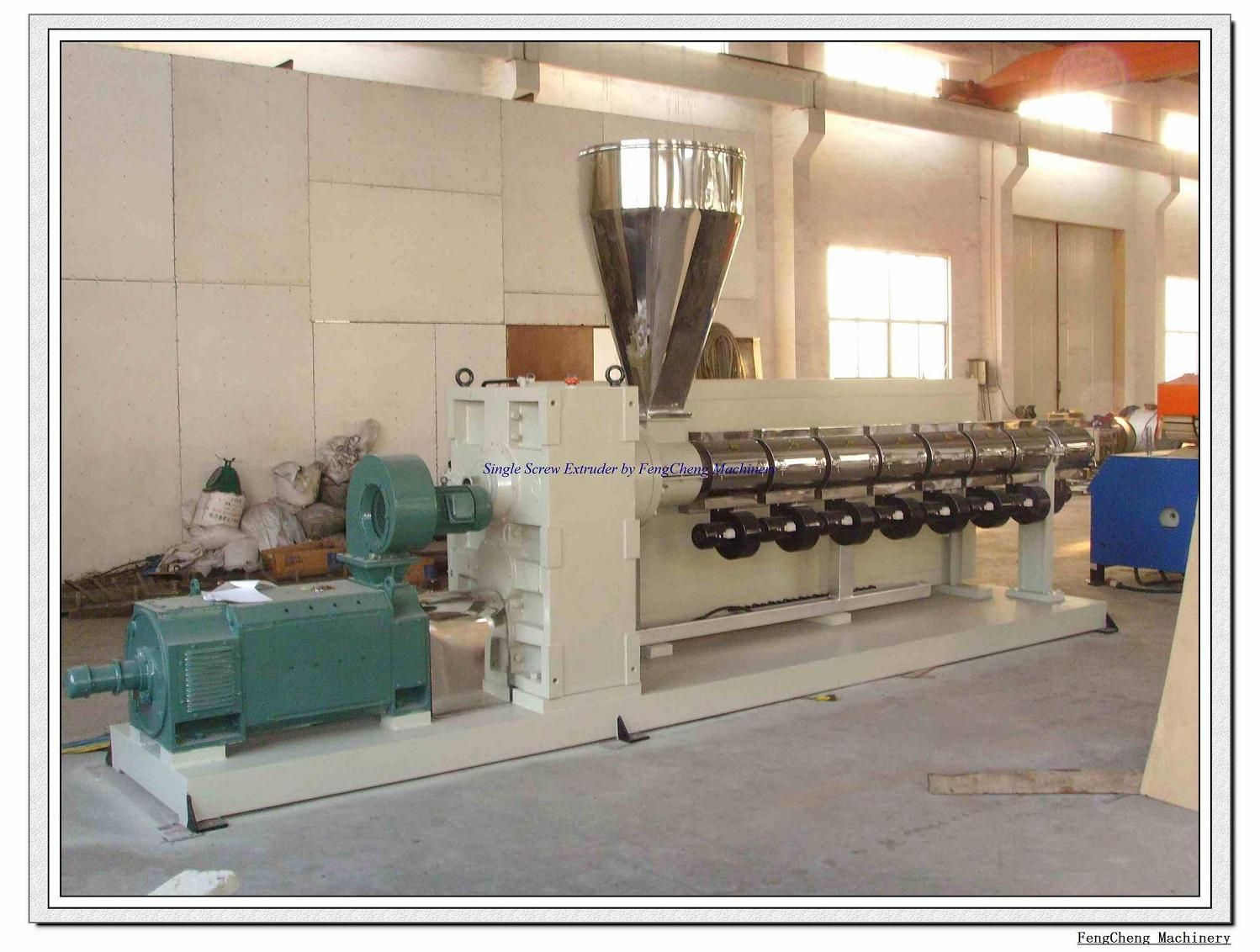

Basic Description:
This SJ series single screw extruder is used to extrude thermoplastic plastics such as soft or hard polyvinyl chloride and polyethylene. Equipped the corresponding auxiliary machine including moulding head section, it can process various plastic products such as membrane pipe, board and so on, and it also can be used to granulation.
Advantages:
With advantages of advanced design, high yield, good moulding and low energy-consumption, it adopts the drive of involute gear with low noise, steady operation, large bearing capacity and long longevity.
Suitable for various polyolefin materials:
1.HDPE, PPR, PP,and ABS etc. Adopt advanced human- machine interface control system to realize the automatic control of the whole line.
2. Excellent temperature control system to ensure the stability of the producing process. Integrated design of force water cooling and force feeding groove ensures the evenness and stability of the manufacturing process.
3. High-performance driving system; Wearable and easy to maintain
Main Technical Parameter :Product Name | Major Axis Ratio | Output | Screw Rotate Speed | Drive Powder | Center Height |
SJ-30/25Extruder | 25:1 | 1.5-10kg/h | 15-150rpm | 5.5kW | 1000mm |
SJ-45/25Extruder | 25:1 | 5-38kg/h | 12-88rpm | 7.5kW | 1000mm |
SJ-65/25Extruder | 25:1 | 20-85kg/h | 13-130rpm | 22/7.3kW | 1000mm |
SJ-65/28Extruder | 28:1 | 30-100kg/h | 13-130rpm | 30kW | 1000mm |
SJ-65/30Extruder | 30:1 | 50-120kg/h | 13-150rpm | 37kW | 1000mm |
SJ-90/25Extruder | 25:1 | 50-100kg/h | 33.3-100rpm | 55/18.3kW | 1000mm |
SJ-90/30Extruder | 30:1 | 100-180kg/h | 33.3-100rpm | 55kW | 1000mm |
SJ-120/25Extruder | 25:1 | 84-190kg/h | 17-52rpm | 55kW | 1000mm |
SJ-120/30Extruder | 30:1 | 200-300kg/h | 17-52rpm | 75kW | 1000mm |
SJ-150/25Extruder | 25:1 | 50-300kg/h | 7-42rpm | 100/75kW | 1000mm |
SJ-200/25Extruder | 25:1 | 180-430kg/h | 5-15rpm | 100/16.7kW | 1000mm |

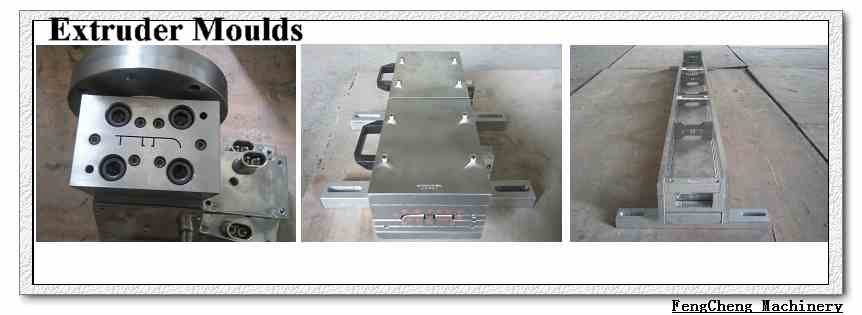

Moulds Parts(According to Customers' requirments):

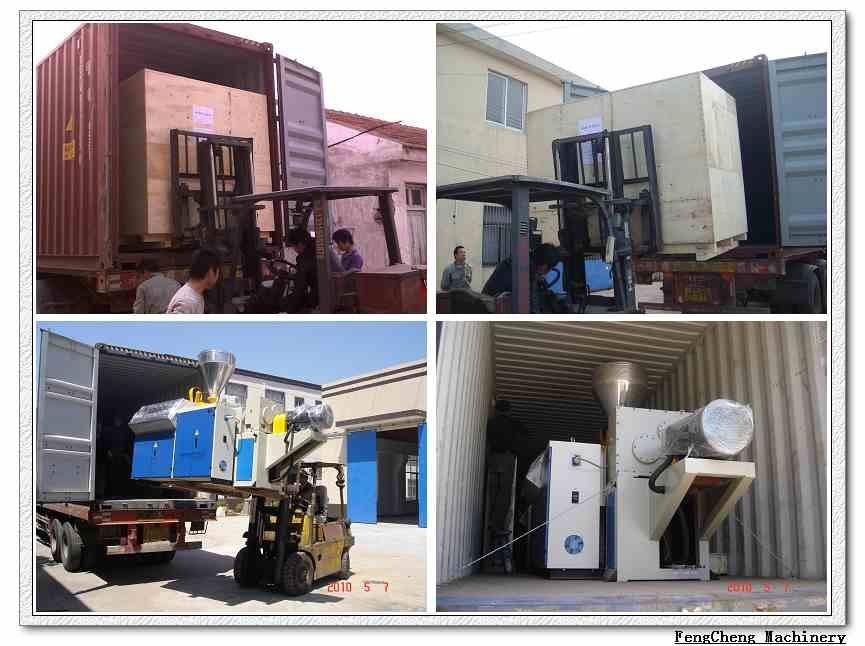

Package Photos(with PE Fim to save space or with Firm Wooden Carton to Protect Machines well):
Zhangjiagang Fengcheng Machinery Manufacturing Co., Ltd. Deals in importing and exporting Machinery. Our company is located in the famous economy booming, culture rich and cleanest city - Zhangjiagang, eastern littoral of China, which links to Shanghai in the east, Suzhou, Wuxi and Changzhou in the west and south. It is convenient in water and road transportation.
We have the first class developing and design system and richly experienced technicians. We mainly manufacture Single/Double plastic extruders, the whole production lines for HDPE silicon core pipes, PPR pipes, lacunars pipes and multiunit tubes, Double plastic extrusion pipes, tubes production lines, prilling production lines, thermostat cooling and dry lines, loading materials machines, grinder and breakers lines, compounding mixing lines, water temperature controlling systems for forming plants, dehumidifying and dry lines and other auxiliary devices. We also domestic and overseas the turnkey projects for various plastic machines.
We are sincerely providing customers automatic washing, filling and sealing assembly production lines for purified water, spring water, fruit juice drink, lactic acid drink, gas containing drink, wine, flavoring and strong tea drink. We also provide the while set water treatment production lines for automatic washing, filling, and sealing for barrel drinking water. We can meet customers' special needs to make beverage machinery within their different production conditions and capability. With excellent performance, good service and advanced technology of the world, our products are delivered to every part at home and abroad. They are fully trusted by customers.
The main objective of our company is to supply first class quality goods. We will apply ourselves to produce suitable machine matched with different requirements for customers, with our rich technology and advanced processing techniques.
During development, our company insists on the management principle of people oriented, market competition is people competition and focusing on training employees' skill and strengthening their principle of service. We are adhering to the tenet of setting up a good working condition for employees who can develop our company.
We seriously promise to provide high quality goods, professional service and advanced technology to all of our customers. Our company would like to establish windowing cooperative relationship and get bright future with worldwide friends on the basis of mutual benefits.
As we have different series machines, we export all machines under Zhangjiagang Kezehng Trading Co., Ltd company ahead. We are the same company, please kindly note.
