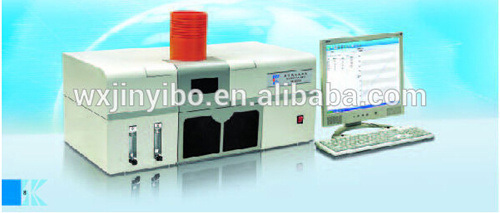

Sk-2003A-Automatic Continuos Flowing Hydride Reacting Double-Path Atom Florescence Spectrometer

Product Specifications

Prod Model:	SK-2003A
Markets:	South America,Southeast Asia,Africa,Mid East,Eastern Asia

Product Description

1.Product Description

SK-2003A-Automatic continuos flowing hydride reacting double-path atom florescence spectrometer is a fast quantitative analysis machine can testing 18 elements. It's very suit for testing As and Hg infollng fields, such as metallurgy, machinery and other industry department, processing on-line analysis before smelting furnace and product checkout of centralab. It is one of effective measures to control the product quality.This machine testing speed can decreased by 1 minute to 25 second now,besides,the apparatus is very convinient to install and easy to operate.

2.Technical parameter


a. TestBase (Multi -base):As Sb Bi Pb Zn Te Se Zn Ge Cd Hg etc
b Analysis Passageway:Single strenghen passage and double passages to measure
c.Testing Time (Short time): on the basis of different sample type, usually less than 25s.
d.Analysis Waveband (Wide extent):Over 3 magnitudes.
e.Detect Limit(ng/ml): As Sb Bi Pb Zn Te Se<0.01 Zn<1.0 Ge<0.05 Cd Hg<0.001
f.Have no passage interference.

3.Main features

a.The hollow cathod light,which Adopts high performance and unique coding.
b.Adopt the vary short focus optical system
c.The duty ratio can automaticly adjusted to the best excitation state
d.Apply the samll background subtraction function,which can substract the backgroundinterferencecaused by the stray light and flame.
e.It enables to chose the flxible sample setting-squelch type three dimensional orbits automatic sample changer
f.The HG-AFS spectrometer user can chose to upgrade it into HG-FLAME-AFS spectrometer,thus,theelements testing range is expanded.(Au,Ag,Cu,Co,Cr,Ni etc elements are added to detect. )
g.To reserve the interface,The atom spectrometer can connected used with chromatograph analyzer and morphology spectrometer.
h.Owning the integrated operating system,which can realize vary curve methods and different testing methods and recommend the optimal condition and provide experts service function.besides, it has many other functions, such as graphics disply and playback of test data,statistics and query of data, preservation and print of various graphics,datas and pages.

4.Main allocation

a.Single pump and duplex channel continuous flowing way of hydride sample injection avoids the error caused by memory effect when different samples measured in the same time.Using the patent designed A mode multi-function reacting setting, many function are integrated in the machine,such as hydrogenation,bubble elimination, liquid seperation and waste automatically manage.
b.Applying the short direct air passage transport system, the target element hydride, hydrogen and carrier gas can effectively transported to atomizer.
c.Adopt double- layer quartz and shield style atomizer, it can be easy,quickly and accurately regulated by three- dimensional  adjusting mechanism
d.Adopt the pattern of large scale integrated circuit modular, The double passges' code of cathode light can be procted by surplus voltage, over electric current and open cicuit.
e.Adopt the international fasionable 3U mechanical design,It simplizes the whole structure and operating procedure and has a good electromagnatic compatibility.
