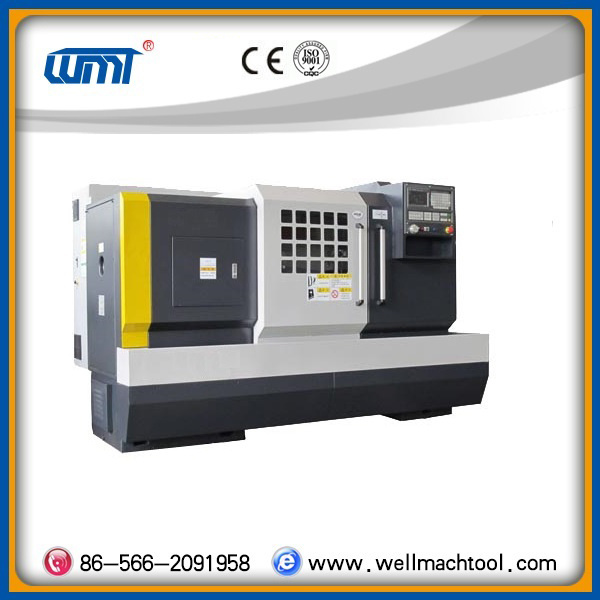

Sk50p Rigid Stand Turning Center CNC Lathe Machine

Name: Sk50p Rigid Stand Turning Center CNC Lathe Machine
Brand: china-manufacturer-directory.com
SKU: 771719145
Availability: InStock
Rating: 5 (69 reviews)

Supplier:	WMT CNC INDUSTRIAL CO., LTD.
Price:	US $ 27500/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	SK50P
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Machine:	CNC Lathe
Distance Betweeen Centers:	1000mm 1500mm
Spindle Bore:	70mm
Max. Swing Over Bed:	500mm
Colour:	OEM
Voltage:	110V, 220V, 380V
Package:	Fumigated Poly-Wood Case
Payment:	T/T, Paypal, LC, West Union
Process Usage:	Metal-Forming CNC Machine Tools
Movement Method:	Contour Control
Control Method:	Closed-Loop Control
Numerical Control:	CNC/MNC
Performance Classification:	Mid-Range CNC Machine Tools
Processing Precision:	0.02mm

Product Description

Feature

ITEMS		UNIT	SK40P	SK50P
Capacity	Max. swing dia. over bed	mm	400	500
	Max. swing dia. over carriage	mm	200	280
	Max. turning diameter	mm	400/350	500/350
	Distance between centers	mm	710/960/1460/1960
			(620/870/1370/1870)
	Max. turning length	mm	570/820/1320/1820
			(500/750/1250/1750)
Spindle	Type of spindle nose		ISO 702/II D8 Short-taper cam-locking type
	Spindle bore diameter	mm	77
	Spindle speed	rpm	3-step 21-1620 H:162-1620
			M: 66-660
			L: 21-210
	Max. torque of spindle	N.m	800
	Spindle drive motor power(continuous or 30minutes)	kW	7.5
Tailstock	Quill diameter	mm	75
	Quill travel	mm	150
	Tailstock quill taper	.	Morse No.5
Turret	X/Z rapid traverse rate	m/min	6/12
	Number of tool stations		4(6 Option)
	Tool section	mm	25x25
	X travel	mm	300
	Z travel	mm	650/900/1400/1900
Others	Dimensions(L)	mm	2250/2500/3000/3500
	(W)	mm	1370
	(H)	mm	1690
	Package dimensions (LxWxH)	mm	2550/2800/3300/3800x1920x2200
	Net weight	kg	2050/2100/		2100/2150/
			2150/2200		2200/2260
