Product Specifications
| Prod Model: |

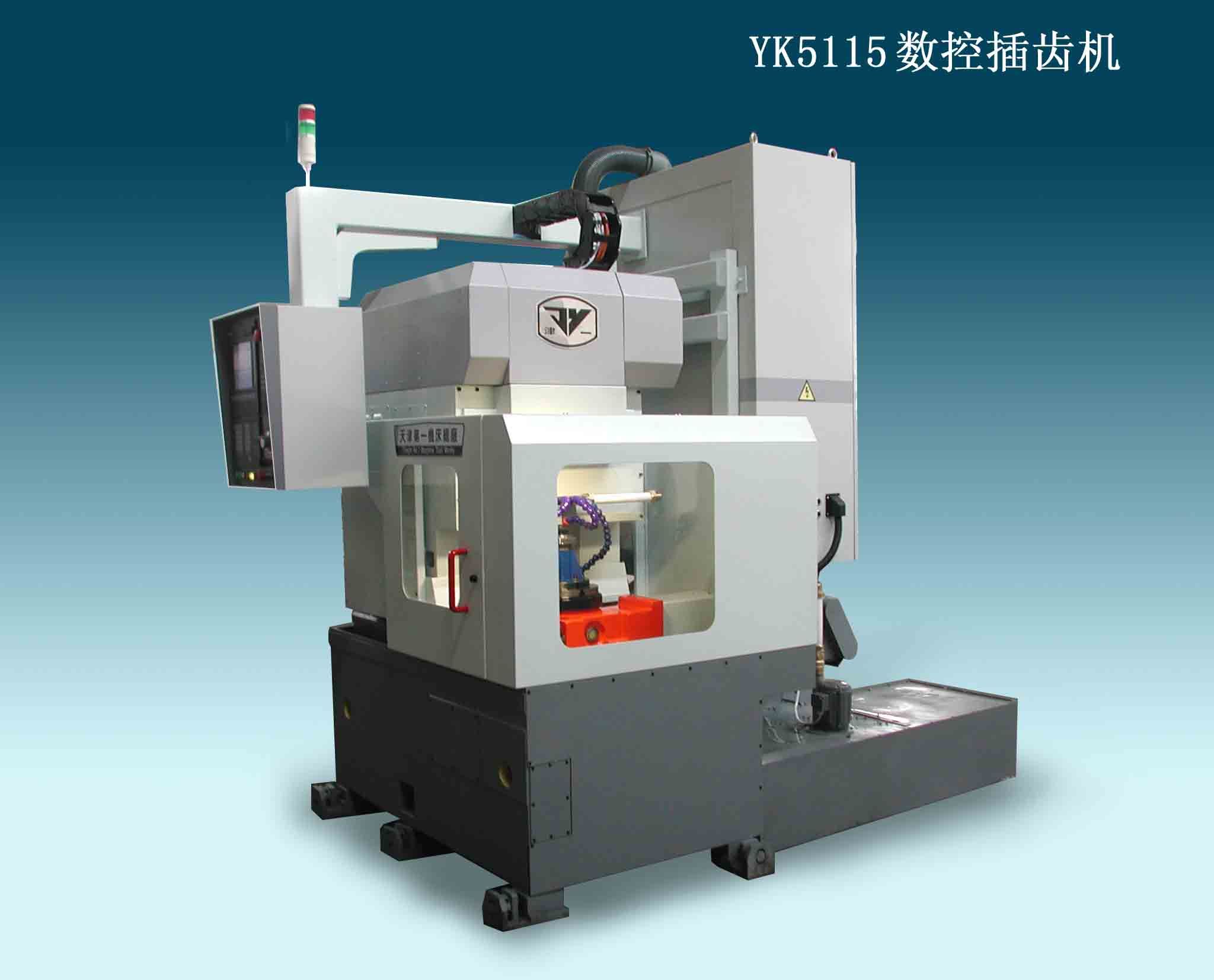

YK5115 CNC GEAR SHAPING MACHINE |
Product Description
1. Machine Description
This machine is designed as a Three-Axes CNC Control Machine and the variable-frequency setting motor is used for main driving motion. The CNC system of Siemens 802C is adopted for controlling the Rotary feed 2-Radial feeds and Index of gears being cut.
The machine construction is featured with
* An oil forced lubrication for cutter head, to meet the requirement of high cutting strokes
* A double-roller mechanism for cutter relief, to decrease the vibration
* A variable tooth-thickness worm and worm wheel set for cutter head and worktable
*Column radial movement with tangent relief and linear roller guide way and ball screws on machine base.
The accuracy of gear to be cut is up to Class 6 of GB10095-88.
2. Machine Specifications
Maximum diameter of work, External 150mm
Maximum diameter of work, Internal 60+Nominal Cutter Diameter
Maximum module of work 4mm
Maximum face width 32mm
Maximum length of cutter stroke 40mm
Stroke range of cutter spindle 50mm
Number of strokes for cutter spindle 300-1000 str/min
Movement between axis of cutter and axis of work spindle -30-195mm
Distance between bearing surface of cutter and surface of worktable
160-210mm
Radial feed per stroke of cutter 0.005-0.1mm/str
Rotary feed per stroke of cutter 0.15-2mm/str
Rapid radial feed 10,000mm/min
Diameter of cutter spindle 90mm
Diameter of worktable 260mm
Relief of cutter 0.6mm
Tangent relief of column +/-20mm
Power of main motor 7.5KW
Machine weight 5,000KG
Tianjin No.1 Machine Tool Works (TMTW) was set up in 1951. Since the founding for near half a century, it has kept forging ahead and has been devoted to the development of machine tool industry in China. Advanced technique in machine tools production and the relative products have been unceasingly developed successfully, especially in Bevel Gear Generators production and it is well known for it.
The main products are as follows: Gear Shapers, Straight Bevel Gear Generators, Spiral Bevel Gear Generators, Spiral Bevel Gear Grinders, Hypoid Gear Testers, Gear Lappers, Gear Quenching Press, Gear Chamfering Machines, Gear Hobbers, Honing Machines, Vertical & Horizontal Machining Centers, Special Precision Speed Reducers, Roll Stander for Seamless Tube Stretch Reducing Mill, Gear Coupling Family, Low Drive Devices and Environmental Protective Equipment of 16 kinds, more than 30 families, and more than 150 types and specifications. The machines produced in TMTW have been sold to 30 provinces, cities, autonomous regions and municipalities and they have been exported to more than 20 countries and regions in the world, such as U.S.A., Japan, Sweden, Russia, South Korea, Iran, Burma, Romania, Taiwan, Hong kong, etc.
TMTW is located in the center of Bohai economic area and its environment is beautiful. The occupied area is about 290, 000 square meters, 178, 000 of which for buildings. There is an air-conditioned workshop and a special site of 19, 000 square meters for assembling and testing. More than 900 excellent machine equipment and precision instruments work well for production and inspection. There is a large group of high-level technicians and energetic workers who work there and make TMTW in the position of strength. TMTW has undertaken the Projects of sophisticated technology, which are advanced in China and in world level.
TMTW has been sticking to Quality First , Customers are always right and supplying high-quality products and high-grade services to a large group of domestic and foreign customers without reservation, so as to obtain better social results as well as economic benefits. Being in the period of jointure between two centuries, TMTW is ready to meet markets challenge with completely new aspects and stride confidently towards the markets, towards the alien, towards the 21st century, towards our bright future. TMTW will be ready to contribute much more to the development of machine tool industry in China and even in the whole world.
