Product Specifications
| Prod Model: |
VCT-1590R-4H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Size: |
900*150mm |
| Spindle Power: |
Water Cooling 1500W×4PCS |
| Driver: |
8PCS Stepper Motors in Total |
| Transmission: |
Gear Box (Reduction Rate: 1:25) |
| Xyz Guiding Rails: |
Xyz Imported PMI Linear Square Rails |
| Maxi Engraving Speed: |
15000mm/M |
| Controller: |
4 Axis Nc Studio Controller( PC Control ) |
| Spindle Speed: |
6000~24000rpm |
| Voltage: |
AC220V/50Hz or 380V/60Hz |
| Net Weight: |
600kg |
| Spindle Layout: |
Horizontal |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
RoHS |
| Spindle Number: |
4 |
Product Description

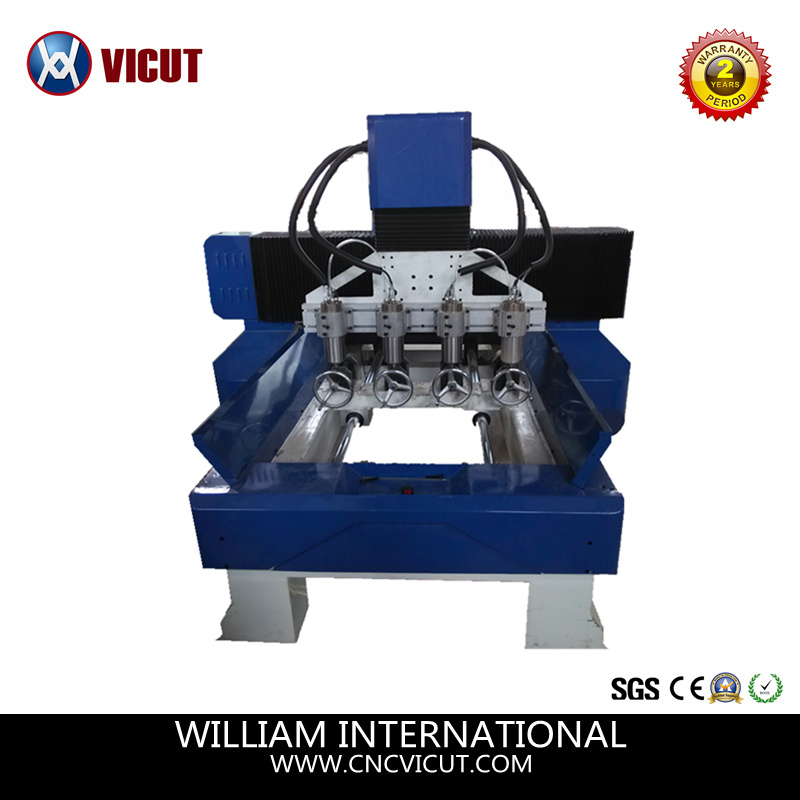

VICUT 3D 4-axis movement CNC engraving routers are perfectly used in manufacturing furniture, Cabinet, Handrail, Crutch, Wood crafts, Door, Window, Acrylic signs, guitar and other musical instruments, etc; High efficiency with multiple rotary axes for mass processing on cylinder materials.
Machine Details Show:
1. Base Frame: The heavier base frame is made of heavy-duty tubular steel that is welded, precisely machined by gantry milling machine and stress relieved by vibration device so that the foundation remains true and steady over the operational life of the machine.
2. Multiple Cooling Spindle: Multiple spindles for mass processing on solid wood, MDF, acrylic, aluminum and plastics, etc; We offers different spindle options which available with 220V-2 Phase-50-60Hz or 220V-3 Phase-50-60Hz or 380V, 3Phase-50-60Hz. Series of tools are available, for example, diameter 3.175mm, 4mm, 6mm, 8mm and 12.7mm.
5. NC Studio Controller: PC based NC Studio Controller with more friendly human/machine interface/HMI, fully executed with computer. It well realizes high-speed and high-precision motion control. Better anti-interference performance due to control signal adopting differential signal input/output, featured as power failure protection function, linear interpolation, circular interpolation, intelligent look-ahead, reverse cutting, backlash compensation, breakpoint memory and block skip, etc.
7. Rotary Axis: Available with different cylinders, irregular objects, crutch and cylinder crafts with various diameters; We can put different number of rotary axis according to specified requirement.
8. Control Cabinet: All the electrical components are housed and wired in a mobile, double door electrical enclosure. This allows for easy access and service when needed. Every wire is tagged so that when service is required, the customer can easily navigate the cabinet.
9. Central Lubricator: Easier to lubricate the Guide units regularly, just pull it gently and oil will go when it is needed.
10. Photoelectric Limit Switch: Un-touching, more sensitive and durable than traditional mechanical switch, maintenance-free for long term use.
11. Foot Pads make it easier to level the machine accurately.
12.4 AXIS Software: You can use power-mill software to make processing of 3D files which was scanned with 3D scanner. We can make 4 axis movements, AXYZ axis can move at the same time.
| Model | VCT-7090R-4H | VCT-3512R-6H | VCT-2512R-8H | VCT-2013R-2Z-8H |
| Machine Size(X*Y) | 1000×940mm (3.3'x3.1') | 3500 x 2000mm
(11.6'x6.6') | 2600 x2000mm
(8.5'x6.6') | 2400×2000mm
(7.9'x6.6') |
| 3D Rotary Working Size | 900mm(length) x 170mm(rotary diameter) | 1200mm(length) x 350mm(rotary diameter) | 1200mm(length) x 250mm(rotary diameter) | 1300mm(length) x 200mm(rotary diameter) |
| Spindle Power | 1500W×4PCS | 2200W×6PCS | 2200W×6PCS | 2200W×8PCS |
| No. Of Rotary | 4 PCS | 6 PCS | 8 PCS | 8 PCS |
| Motor Driver | Stepper Motors | 7pcs Panasonic Servo Motors
(2 pcs support rotary, 1pcs for X, 1pcs for 2Z, 2pcs for Y axis) |
| Rotary Transmission | Belt Transmission | Gear box (reduction rate: 1:25) |
| XYZ Transmission | TBI Ball Screw for XYZ axis | TBI Ball Screw 40mm for Z axis, High precision Gear Rack for XY axis |
| Max Engraving Speed | 12000mm/m | 15000mm/minute |
| Air Cylinder Support | Yes (300MM long air cylinder) |
| Oil Lubrication system | Yes |
| Tool Diameter | 4,6, 8, 12mm |
| Body Structure | Cast Square Tube |
| Guiding Rails | XYZ Imported Linear Square Rails |
| Reposition Accuracy | <0.03/300mm |
| Spindle Speed | 6000~24000rpm |
| Controller | 4 axis NC Studio Controller( PC control ) |
| Format of instructions | G code or HPGL |
| Voltage | 380V/60Hz or 220V/50HZ |
| Net Weight | about 500KG | about 2000KG | about 1800KG | about 1600KG |
| Packing size(L*W*H) | 1485x 1300x1750mm( 3.38CBM) | 4200x2200x2200mm(20CBM) | 2700×2200×2200mm(13.1CBM) | 2700×2200×2200mm(13.1CBM) |
