Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Miniature |
| Theory: |
Electromagnetic Relay |
| Usage: |
Household Appliances Relay, Communication Relay |
| Protective Characteristics: |
Open Relay |
| Load: |
Medium Power Relay |
| Action Principle: |
Electromagnetic Type |

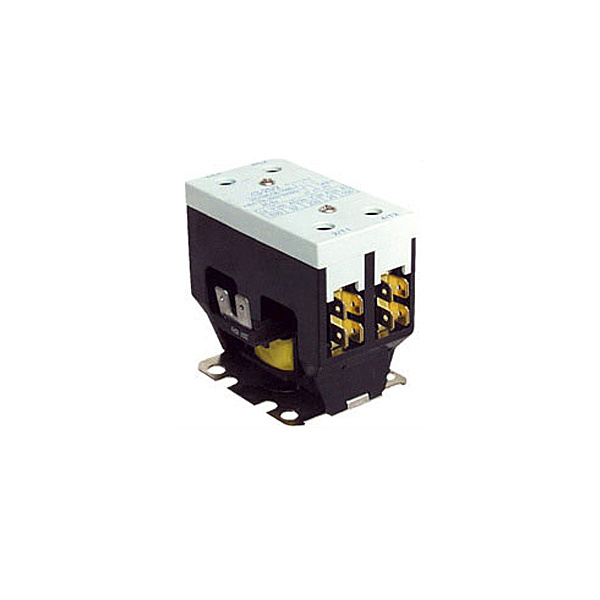

Product Description
1.Low VA coil for cooler operation and increased life.
2.Quiet operation
3.Universal style mounting bracket fits existing mounting holes.
4. Double break contacts ensure positive make and break.
5. Screw terminals or pressure connectors and double 1/4 quick connects provided on all models for easy installation
| Specifications |
| Insulating material | Contact block and carrier are high quality electrical-grade thermosetting resin | | Temperature range | -40oF to 150oF | | Mechanical life (no load) | Conforms to UL and ARI specifications | | Electricl life | Conforms to UL and ARI specifications | | Weight (approximate) | 9.25 oz | | Coils Frequency | 50/60Hz | | Coil insulation | Class B(130oC) | | Termination | Pressure connector and double 1/4 Q.C | | Operate | 85%of nominal coil coltage; 110% maximum safe operate | | Duty cycle | Continuous |
|
| Coil data |
Steveco Number
30 Amp 40Amp |
Voltage AC |
Ress DC OHMS |
Current MA |
Nominal VA |
Max. inrush |
SMC2-244 AMC2-247 |
24 |
11 |
250 |
6 |
32 |
SMC2-245 AMC2-248 |
120 |
224 |
50 |
6 |
32 |
SMC2-246 AMC2-249 |
208/240 |
997 |
25 |
6 |
32 |
|
Contact ratings |
| Type |
Voltage |
FLA |
LRA |
RES |
SMC2-244 thru AMC2-246 |
277 |
30 |
150 |
40 |
480 |
30 |
75 |
40 |
600 |
30 |
50 |
40 |
SMC2-247 thru AMC2-252 |
277 |
40 |
200 |
50 |
480 |
40 |
100 |
50 |
600 |
40 |
80 |
50 |
|
Elecal Industrial Automation is Specializing in the manufacture and export of low-voltage and hight-voltage electrical products in China. Such as MCB, MCCB, ELCB, RCD, Contactor, Fuse, Relay, Switch, Distribution Box etc.
All the manufacturing process of the products is in strictly conformity to international IEC standard and we have established and perfected quality control procedures in accordance with ISO9001 international quality management system.
