Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Miniature |
| Theory: |
Electromagnetic Relay |
| Usage: |
Household Appliances Relay, Communication Relay |
| Protective Characteristics: |
Open Relay |
| Load: |
Medium Power Relay |
| Action Principle: |
Electromagnetic Type |

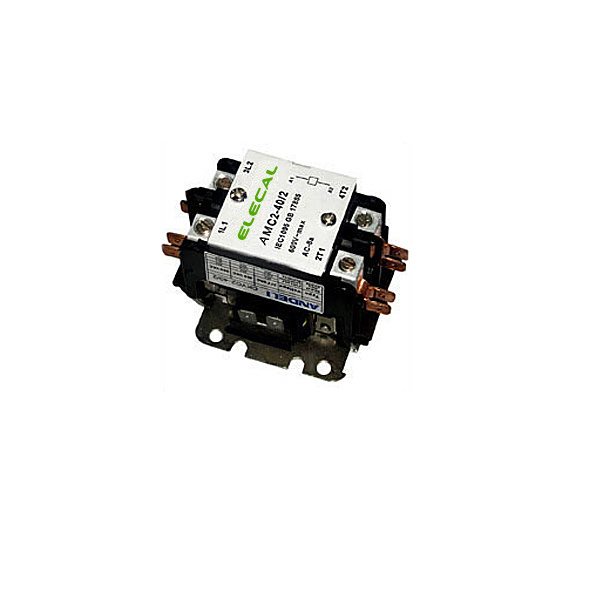

Product Description
Straight-Through wiring ,Replaces 1 1/2 pole devices used primarily in residential central air conditioning
Features
1.Replaces many type 117 contactors used by OEM's
2.Universal style mounting bracket fits existing mounting holes
3.Screw terminals and 1/4 quick connect terminals for easy installation
|
Specifications |
| Temperature range | -40°F to 150°F | | Mechanical life (no load) | Conforms to UL and ARI specifications | | Electricl life | Conforms to UL and ARI specifications 94-388 thru 94-390 achieve 200,000 cycles, make LRA at . 5 pf, break 125% of FLA at . 75 pf at rated voltage ,10 , 000 cycles make and break LRA at . 5 pf rated voltage 94-394 thru 94-396 achieve 100,000 cycles, make LAR at. 5 pf at rated voltage 6,000 cycles make and break LRA at . 5 pf rated voltage | | Weight (approximate) | 9.25 oz | | Coils Frequency | 50/60Hz | | Coil insulation | Class B(130oC ) | | Termination | Screw and double 1/4 Q.C. | | Operate | 85%of nominal coil coltage; 110% maximum safe operate | | Duty cycle | Continuous |
|
| Coil data |
Steveco Number
30 Amp 40Amp |
Voltage AC |
Ress DC OHMS |
Current MA |
Nominal VA |
Max. inrush |
SMC2-388 AMC2-394 |
24 |
16.5 |
208 |
5 |
20 |
SMC2-389 AMC2-395 |
120 |
420 |
42 |
5 |
20 |
SMC2-390 AMC2-396 |
208/240 |
1825 |
21 |
5 |
20 |
|
Contact ratings |
| Type |
Voltage |
FLA |
LRA |
RES |
SMC2-388 thru AMC2-390 |
277 |
30 |
150 |
40 |
480 |
0 |
75 |
40 |
600 |
30 |
50 |
40 |
SMC2-394 thru AMC2-396 |
277 |
40 |
200 |
50 |
480 |
40 |
100 |
50 |
600 |
40 |
80 |
50 |
|
