Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Miniature |
| Theory: |
Electromagnetic Relay |
| Usage: |
Household Appliances Relay, Communication Relay |
| Protective Characteristics: |
Open Relay |
| Load: |
Medium Power Relay |
| Action Principle: |
Electromagnetic Type |

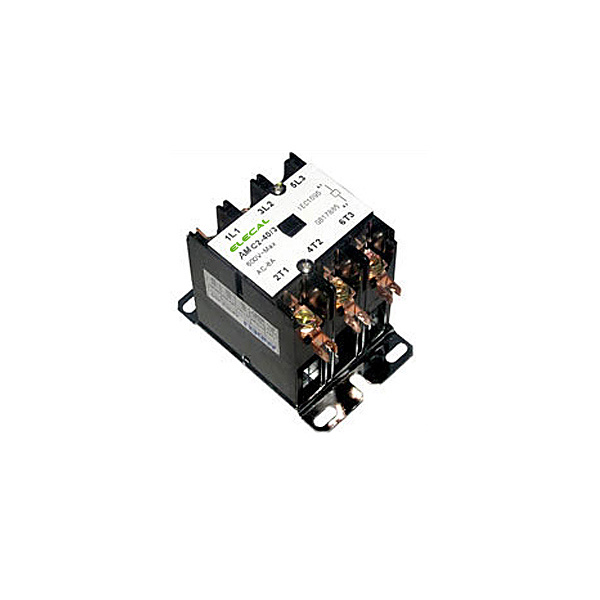

Product Description
1.Any position mounting
2.Interchangeable mounting plate
3.Low wattage coil
4. Double break contacts ensure positive make and break.
| Specifications |
| Insulating material | Contact block and carrier are high quality electrical-grade thermosetting resin | | Temperature range | -40F to 150F | | Mechanical life (no load) | Conforms to UL and ARI specifications | | Electricl life | Conforms to UL and ARI specifications | | Weight (approximate) | 16 oz | | Coils Frequency | 50/60Hz | | Coil insulation | Class B(130oC ) 24 through 208/240 Volts AC | | Termination | Pressure connector and double 1/4 Q.C | | Operate | 85% of nominal coil voltage; 110% maximum safe operate | | Duty cycle | Continuous |
|
| Coil data -25 and 30Amp,600volt three pole normally open (3.P.N.O) |
Steveco Number
25 Amp 30Amp |
Voltage AC |
Ress DC OHMS |
Current MA |
Nominal VA |
Max. inrush |
AMC2-160 AMC2-163 |
24 |
9.2 |
187 |
4.5 |
52 |
AMC2-161 AMC2-164 |
120 |
180 |
37 |
4.5 |
52 |
AMC2-162 AMC2-165 |
208/240 |
720 |
19 |
4.5 |
52 |
|
Contact ratings --25 and 30Amp,600volt three pole normally open (3.P.N.O) |
| Type |
Voltage |
277VAC |
480VAC |
600VAC |
SMC2-160 thru AMC2-162 |
Full load
Lock rotor
Resistive |
25 A. |
25 A. |
25 A. |
150 A. |
125 A. |
100 A. |
40 A. |
40 A. |
40 A. |
SMC2-163 thru AMC2-165 |
Full load
Lock rotor
Resistive |
30 A. |
30 A. |
30 A. |
180 A. |
150 A. |
120 A. |
50 A. |
50 A. |
50 A. |
|
Coil data -40 Amp ,600 volt three pole normally open (3.P.N.O) |
Steveco Number
40 Amp |
Coil Voltage AC
(60Hz) |
Ress DC OHMS |
Current MA |
Nominal VA |
Max. inrush VA |
SMC2-170 |
24 |
7.2 |
187 |
4.5 |
52 |
SMC2-171 |
120 |
180 |
37 |
4.5 |
52 |
SMC2-172 |
208/240 |
720 |
19 |
4.5 |
52 |
|
Contact ratings -40 Amp ,600 volt three pole normally open (3.P.N.O) |
| Type |
Voltage |
277VAC |
480VAC |
600VAC |
SMC2-170 thru AMC2-172 |
Full load
Lock rotor
Resistive |
40 A. |
40 A. |
40 A. |
240 A. |
200 A. |
160 A. |
50 A. |
50 A. |
50 A. |
|
| |
|
Features
1.Interchangeable mounting
2.Double break contacts
Specifications| Coils, mm 2 Voltages A.C | 24 through 240 | | Coils, Frequency | 50/60 Hz | | Coils, Termination | Single or double 1/4 Q.C | | Coils, Pole form | 3 PNO | | Coils, Material | Silver cadmium oxide (50-90 amp) | | Coils, Termination | Box lugs and dual quick connect |
|
|
Coil characteristics |
Induct FLA |
Frequency Hz. |
Max. inrush |
Sealed (Max.) |
VA |
Watts |
VA |
Watts |
50 |
50/60 |
240/204 |
100.8/84 |
50.4/36.5 |
10.8/8 |
60 |
50/60 |
240/204 |
100.8/84 |
50.4/36.5 |
10.8/8 |
75 |
50/60 |
300 |
120 |
26 |
8.5 |
92 |
50/60 |
300 |
120 |
26 |
8.5 |
Steveco
Model number |
Coil volts |
Induct FLA |
Resistive
Per pole |
Locked Rotor |
@Line voltage |
SMC2-459 |
24V |
50 Amp |
65 Amp |
300 Amp |
120V |
SMC2-460 |
120V |
50 Amp |
65 Amp |
300 Amp |
240V |
SMC2-461 |
208/240V |
50 Amp |
65 Amp |
300 Amp |
480V |
|
|
|
|
200 Amp |
600V |
Steveco
Model number |
Coil volts |
Induct FLA |
Resistive
Per pole |
Locked Rotor |
@Line voltage |
SMC2-463 |
24V |
60 Amp |
75 Amp |
360 Amp |
120V |
SMC2-464 |
120V |
60 Amp |
75 Amp |
360 Amp |
240V |
SMC2-465 |
208/240V |
60 Amp |
75 Amp |
300 Amp |
480V |
|
|
|
|
240 Amp |
600V |
Steveco
Model number |
Coil volts |
Induct FLA |
Resistive
Per pole |
Locked Rotor |
@Line voltage |
SMC2-467 |
24V |
75 Amp |
90 Amp |
450 Amp |
240V |
SMC2-468 |
120V |
75 Amp |
90 Amp |
375 Amp |
480V |
SMC2-469 |
208/240V |
75 Amp |
90 Amp |
300 Amp |
600V |
SMC2-471 |
24V |
90 Amp |
120 Amp |
450 Amp |
240V |
SMC2-472 |
120V |
90 Amp |
120 Amp |
450 Amp |
480V |
SMC2-473 |
208/240V |
90 Amp |
120 Amp |
360 Amp |
600V |
|
![]()
