SMD 3 in 1 Full Color P4 LED Indoor Display

Name: SMD 3 in 1 Full Color P4 LED Indoor Display
Brand: china-manufacturer-directory.com
SKU: 745951035
Availability: InStock
Rating: 4.4 (38 reviews)

Supplier:	Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd.
Price:	US $ 1200-1800/Square Meter
Min Order:	1/Square Meter
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	P4 indoor led display
Markets:	South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Module Size:	256X128mm
Brightness:	>1500CD/M2
Cabinet Size:	512X512mm
Working Voltage:	220VAC
Optimal Viewing Distance:	4-20m
Optimal Viewing Angle:	160°(W) 120°(H)
Control Mode:	Synchronization with PC
Cabinet Resolution:	128X128dots
Lifespan:	>100,000hours
Warranty:	2 Years
Tube Chip Color:	Full Color
Display Function:	Video Display
Pixel Pitch:	4mm
Scanning Mode:	1/16 Scan
System Operating Platform:	WIN XP
Display Type:	LED Video Display
Application:	Advertising
Certification:	FCC,EMC
Pixel Configuration:	SMD 3 in 1
Pixel Density:	62500dots/M2
IP Rating:	IP31

Product Description

SMD 3 in 1 full color p4 led indoor display

Product Features
Light weight,colors can be customized

Aluminum design,good heat dissipation,no fans,no noise

Assembling high precision,gap control 0.2mm

The cabinet size based on the module size by user-friendly design

Quick disassembly module need only 10s,convenient replacement and maintenance modules

Rugged cabinet structure

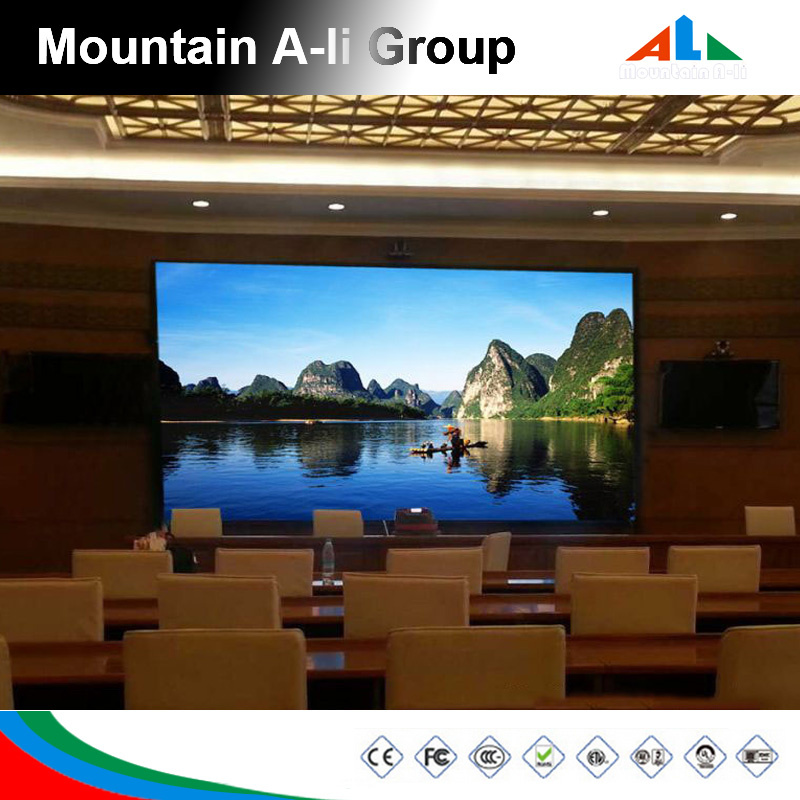

Using Range
Widely used in large venue,stadiums,bank,government,

terminal,dock,station,stock market,medical systems,

electricity,exhibition etc.

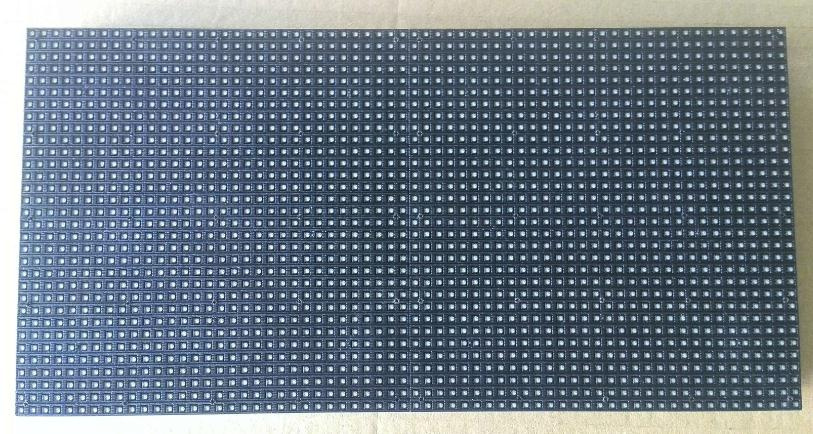

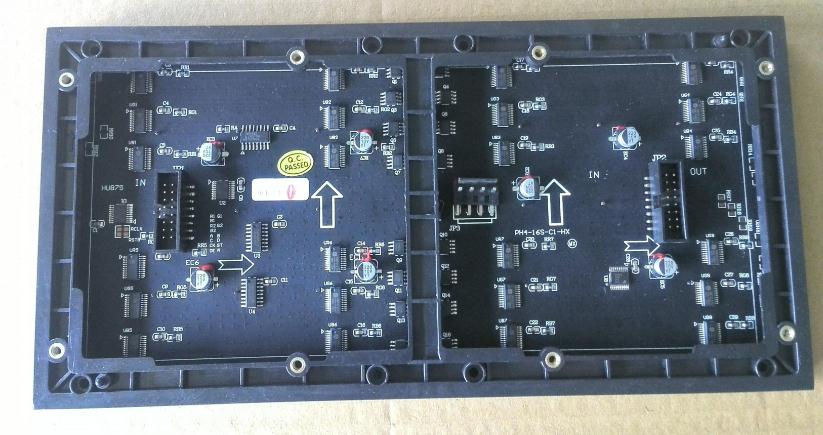

The specifications of module

Item			Parameter
Product model			P4-16S
Module size			256mm*128mm
Pixel pitch			4mm
Pixel density			62500dots/m2
Pixel configuration			smd 3in1
Module resolution			64dots(W)*32dots(H)
Maximum power consumption			18W
Module thickness			13.07mm
Module weight			0.18kg
Driving method			Constant current driving
Scan mode			1/16 scan
Interface type			HUB75-A
Brightness			≥ 1500cd/m2

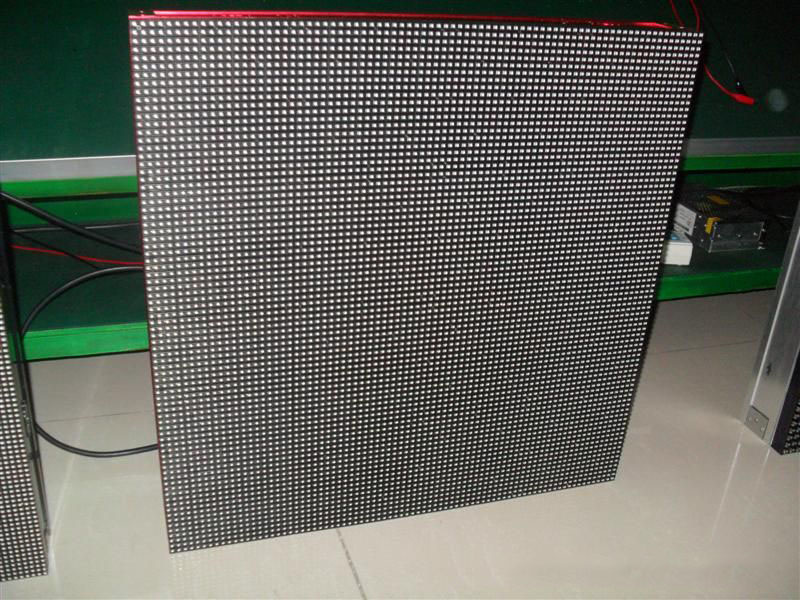

The specifications of cabinet

Cabinet size			512mm*512mm
Module quantity			8pcs
Power supply			5V/40A *2pcs
Cabinet resolution			128*128dots
Optimal viewing distance			4m ~ 20m
Optimal viewing angle			160°(W) 120°(H)
System operating humility			10%-95%
The specifications of power supply

Operating voltage			AC220V±10%
Average power consumption			85W/ m2
Maximum power consumption			≤ 160W/ m2
Current			≤20mA(single LED)
The specifications of control system
Computer			Pentium4 or above
Operating system			WIN98/2000/NT/XP
Control model			Synchronization control
The specifications of the main technical parameters

Driving device			Constant current driving
Refresh rate			≥400Hz
Grey scale			RGB each 256 grade, can display 16.7M colors
MTBF			≥9000hours
Power switch			Automatic switch
Display mode			800600/1024768

Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.

Features:

1) With good lightening accordance and no mosaic

2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment

3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced

4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment

5) Uses real pixels rather than virtual pixels, better viewing effect

Applications:

LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
