Boke Cutting Tools Co., Limited >> Solid Carbide Reamer Cutting Forming Tool, CNC Punching Tools

Solid Carbide Reamer Cutting Forming Tool, CNC Punching Tools

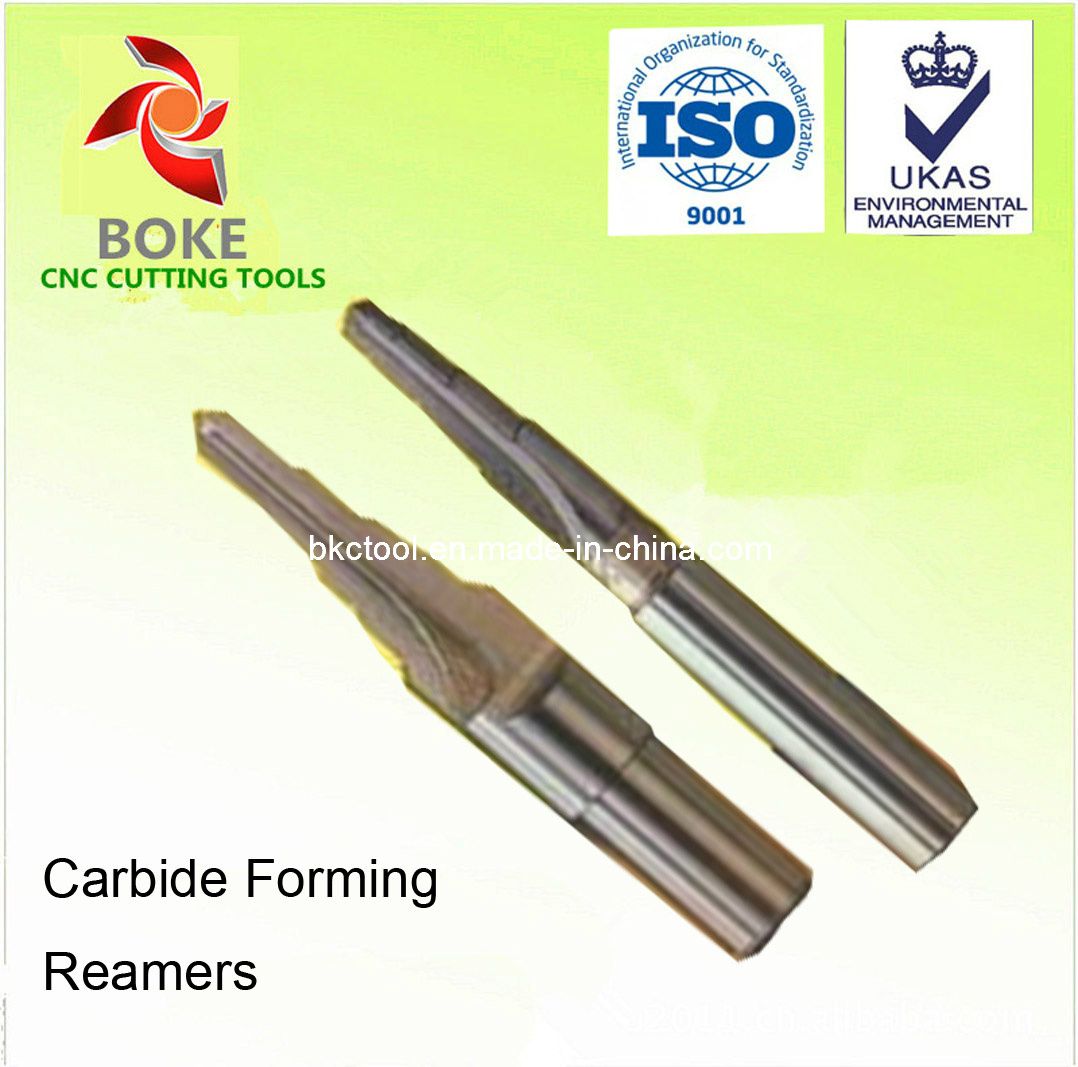

Name: Solid Carbide Reamer Cutting Forming Tool, CNC Punching Tools
Brand: China-Manufacturer-Directory.com
SKU: 723386275
Availability: InStock
Rating: 4.7 (129 reviews)

Supplier:	Boke Cutting Tools Co., Limited
Price:	Negotiable/Piece
Min Order:	5/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	solid carbide reamer Cutting forming tool cnc punc
Markets:	North America,South America,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe
Mm/Inch:	1-25mm
Process Usage:	CNC Non-Conventional Machine Tools
Movement Method:	Linear Control
Control Method:	Closed-Loop Control
Numerical Control:	CNC/MNC
Performance Classification:	Mid-Range CNC Machine Tools

Product Description

Specifications

1.Solid Carbide Reamer Cutting Forming Tool, CNC Punching Tools
2.HRC:50-70
3.High efficiency, long-lived
4.Precision drilling
5.Shank can process upon customer-made

solid carbide reamer Cutting forming tool cnc punching tools

1».Speciafications

Chemical Composition: 6%-12%Co-WC
Physical and Machinal properties: Density: 14.45-14.90g/cm3 Hardness: 92-93 HRA Flexural Strength: 2500-3400N/mm2
Organizational Structure: WC mean grain size: 0.6-1.0um
Corresponds to International Standards: K10, K05-K15, K20-K30, K20-K40
Suitable for: Machining of cast iron, nonferrous alloy, chill cast iron, hard steel, stainless steel, plastic materials, fiberglass, carbon fiber and other non-metallic. It can be used the materials HRC 50-70, high steel, high precision, long-lived.

2».Quality assure

All our products not only using the well-known raw materials manufacturing from home and aboard, but also we have a series of production and processing equipments and precision testing equipment to guaranteed quality.

1.Raw Materials

Overseas

GUHRING material imported from Germany.
Kennametal material imported from America.
TAEGUTEC material imported from Korea.

Domestic

The domestic material we purchased from Zhuzhou, Nanchang and Zigong the well-known brands. CB material imported fromTaiwan.

2.Processing Equipment

WALTER grinding machine imported from Germany.
ANCA grinding machine imported from Australia.

Specifications
Z(Teeth)	d1(mm)	d(mm)	I(mm)	I1(mm)	I2(mm)
4.0	4.0	4	75	20	30
4.0	4.5	5	75	20	30
6.0	5.0	5	100	30	40
6.0	5.5	6	100	30	40
6.0	6.0	6	100	30	40
6.0	6.5	8	100	30	40
6.0	7.0	8	100	30	40
6.0	8.0	8	100	30	40
6.0	9.0	10	100	30	40
6.0	10.0	10	100	30	40
6.0	11.0	12	150	50	50
6.0	12.0	12	150	50	50
6.0	13.0	14	150	50	50
8.0	14.0	14	150	50	50
8.0	15.0	16	150	50	50
8.0	16.0	16	150	50	50
8.0	17.0	18	150	50	50
8.0	18.0	18	200	60	60
8.0	19.0	20	200	60	60
8.0	20.0	20	200	60	60

We are a professional manufacturer of good quality carbide cutting tools, with an experienced design team. Our company was founded in 2001.

At present, we use the best six-axis CNC grinding equipment from Germany to produce high-speed carbide end mills, which is suitable for cutting highly hard and soft metal.

It is our business policy to strive for the development and innovation of carbide end mills, provide high-quality products, and offer custom designs for meeting your various needs. We have gotten customer' S support and affirmation since we were established.

In order to allow more customers to know us, we are moving toward internationalization. With the combination of sophisticated technology and modern network marketing, we provide more and better service.

Welcome to our company. We will do our best to be professional in the precision cutting tool production, and create the best results for you.

We willstrive to provide you with high quality products and quality service, We can also accept any kinds of payment terms, such as T/T, Western Union, L/C, OA, D/P, Escrow etc.

"Quality first, Customer first" is our orientation, we sincerely invite you to our company for the bright future. You are welcome to contact us for future friendly business relationships so as to achieve mutual benefit.

Do not be hesitate to contact us if you have interest in our goods, because of different countries in different time difference, you may met businessmen are not online or out, making your enquiry in our mails would be highly appreciated and we will respond you soon.
