Product Specifications
| Prod Model: |
ST3P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe |
| Brand: |
Winston |
| Protect Feature: |
Sealed |
| Contact Load: |
Low Power |
| Dimension: |
55h X 40.5W X 57.5D |
| Function: |
off Delay |
| Contact Amount: |
Timed 1 Spdt |
| Contact Capacity: |
AC220V 3A |
Product Description

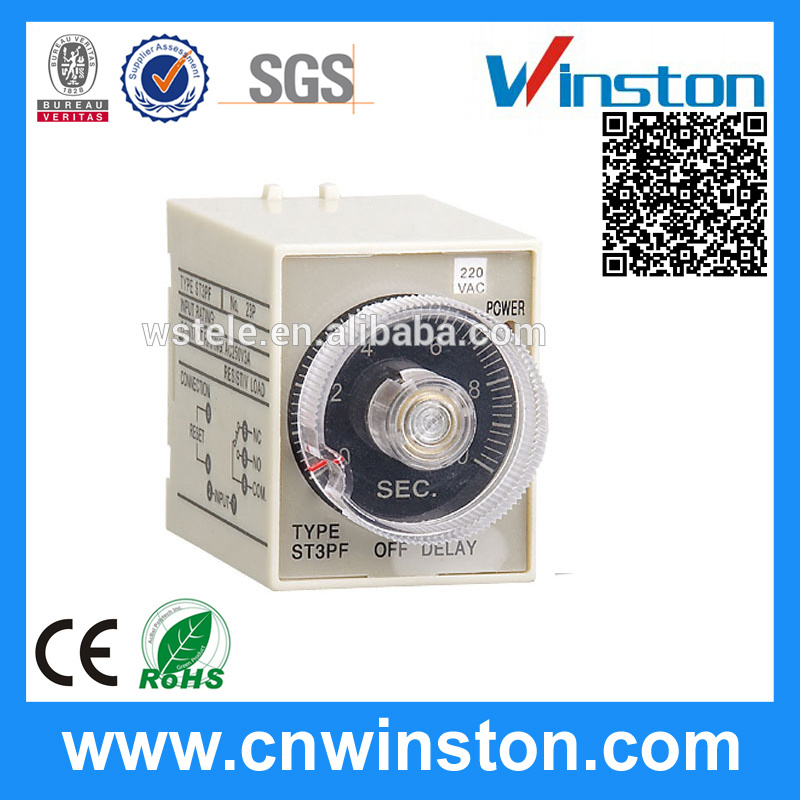

ST3P Time relay
Features:
1) Types:
A) On delay type: STEPA-A/B/C/D/E/F/G, STEPC-A/B/C/D/E/F/G
B) Off delay type: ST3PF
2) Contact capacity: 5A, 250V AC
3) Coil voltage:
A) DC: 12, 24V
B) AC: 12, 24, 48, 110, 220, 240V
4) Coil power: 2VA
5) On delay time range:
A) 0.05-0.5s, 5s, 30s, 3min
B) 0.1-1s, 10s, 60s, 6min
C) 0.5-5s, 50, 5min, 30min
D) 1-10s, 100s, 10min, 60min
E) 0.5min, 10min, 60min, 6h
F) 0.25-2min, 20min, 2h, 12h
G) 0.5-4min, 40min, 4h, 24h
6) Off delay time range: 1s - 50min
7) Electrical life: 100, 000 times
7) Mechanical life: 5, 000, 000 times
8) Operating temperature: -40 - +50° C
9) Repeat error: ± 2%
10) Setting error: ± 5%
11) Voltage error: ± 5%
12) Temperature error: ± 2%
Technical parameters
Classification | Timer Relay |
|---|
| Specification/ Model | ST3PF | ST3PK | ST3PY | ST3PR |
|---|
| Dimension | 55H × 40.5W × 57.5D | 55H × 40.5W × 57.5D | 55H × 40.5W × 57.5D | 55H × 40.5W × 57.5D |
|---|
| Function | Off delay | Breaking delay | Delaying of star-delta starter | On-off delaying repetitive |
|---|
| Delaying Accuracy | 1% | 1% | 0.5%±10ms | 1% |
|---|
| Contact Amount | Timed 1 Spdt | Timed 1 Spdt | Timed star-delta transfer Inst.1 normally open | Timed 1 Spdt |
|---|
| Contact Capacity | AC220V 3A | AC220V 3A | AC220V 3A | AC220V 2A |
|---|
| Delaying Range | 0.1~1s 0.2~2s 0.5~5s 1~10s 2.5~30s 5~60s | 0.1~1s 0.25~2s 0.5~5s 1~10s 2.5~30s 5~60s 15~180s | 1~10s 2.5~30s 5~60s | 0.5~6s/60s 1~10s/10min 2.5~30s/30min |
|---|
| Rated Voltage | AC110, 220V DC24, 48, 110V | AC110, 220V DC24V | AC110, 220V | AC110, 220V DC24V |
|---|
