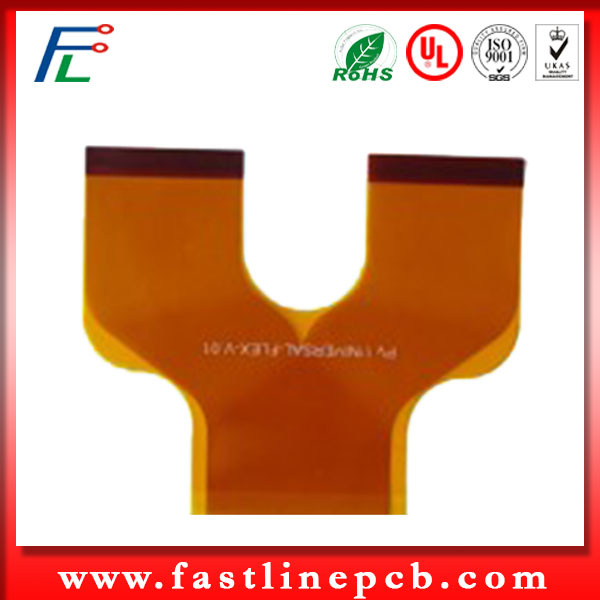

Stiffener FPC and Flexible Circuit Board

Product Specifications

Prod Model:	FL217
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Board Material:	Polyimide
Board Layer:	4
Board Thickness:	0.1 Mm
Copper Thickness:	1 Oz
Solser Mask:	Yellow
Silkscreen:	White
Surface Finishing:	Enig
Lead Time:	4-5 Working Days
Shipping Type:	DHL.TNT, EMS, FedEx, UPS etc
PCB Design:	Custom Design Product
Structure:	Double-Sided FPC
Material:	Polyimide
Combination Mode:	Adhesive Flexible Plate
Application:	Aviation and Aerospace
Conductive Adhesive:	Conductive Silver Paste
Base Material:	Polyimide

Product Description

Stiffener FPC and Flexible Circuit Board

Fastline could produce 1-26 layers PCB board for electronic products.providing PCB design, PCB fabrication,PCB clone and PCB assembly services. and we have got the UL, ISO, SGS certifications.

Pls see our pcb catalog below:
1. single side pcb
2. double side pcb
3. Multilayer pcb(3-26+ layers)
4. Flexible PCB(FPC)
5. Rigid-flex PCB board
6. Aluminum PCB board for LED(1-4 layers)
7. MCPCB board (1-4 layers)
8.Ceramic PCB(1-4 layers)
9. HDI pcb board
10. High frequency PCB
11. PCB assembly




Fastline FPC board and Rigid-flex
Technology and Capabilities
Material	Polyimide / Polyester
Counts	Flex: 1~8L; Rigid-Flex: 2~8L
Board Thickness	Min.0.05mm ;  Max. 0.3mm
Copper Thickness	1/3 oz --- 2 oz
Maximum dimensions	For FPC:250mm*1200mm(normal); 250mm*100,000mm
CNC Drill Size (Max)	6.5mm
CNC Drill Size (Min)	Flex: 0.15mm
Holes Location Tolerance	±0.05mm
Coverlay Drill Size (Min)	0.6mm
Hole to Coverlay Opening Windows (Min)	0.15mm
Min Line Width / Spacing	0.1/0.1mm
Aspect Ratio	61
Copper Thickness on Hole Wall	Flex:12-22μm
Min Pad Size	φ0.2mm
Etch Tolerance	Finished line width tolerance ±20%
Pattern Registration Tolerance	±0.1mm (Working Panel Size: 250*300mm)
Coverlay Registration Tolerance	±0.15mm
Solder Mask Registration Tolerance	±0.2mm
Solder Mask to PAD	Non photosensitive: 0.2mm Photosensitive: 0.1mm
Min. Solder Mask Dam	0.1mm
Misregistration Tolerance for Stiffener, Adhesive, Glue paper	±0.30mm
Surface Finish	Plating Ni / Au ; Chemical Ni / Au ; OSP


PCB advantages:
1 R&D team support
2 UL, RoHS,ISO9001,SGS
3.IPC class2
4.Advanced production line and promtly delivery.
5,Honest Credibility in China.
6.Professional and abundant experience in PCB.
7.Competitive price and good quality.
8. Excellent after-sales service.

Trade Terms:
7 We have no MOQ.
8 Payment Term:T/T or Western Union.
9 Delivery ways:UPS,FEDEX,DHL etc,door to door service by sea or air etc.

Application:
1. Consumer electronics.
2. Industrial control.
3. medical instrument.
4. fire service implement etc.

Our Service:
1.Reply your enquiry in 2 working hours.
2.Experienced staffs answer all your questions in fluent English.
3.Customized design is avaliable OEM&ODM are welcomed.
4. Exclusive and unique solution can be provide to our customer by our well-trained and professional engineers and staffs.
5. Special discount and protection of sales area provided to our distributor.


PCB  Prototype  Lead  Time:
item	General  time	Quick  Turn
1-2	4  days	1  days
4-6  Layers	6  days	2  days
8-10  Layers	8  days	3  days
12-16  Layers	12  days	4days
18-20  Layers	14  days	5  days
22-26  Layers	16  days	6  days
Note:   Base  on  all  data  received  by  us  and  must  be  complete  and  problem  free, Lead  time  is  ready  to  ship  time.
