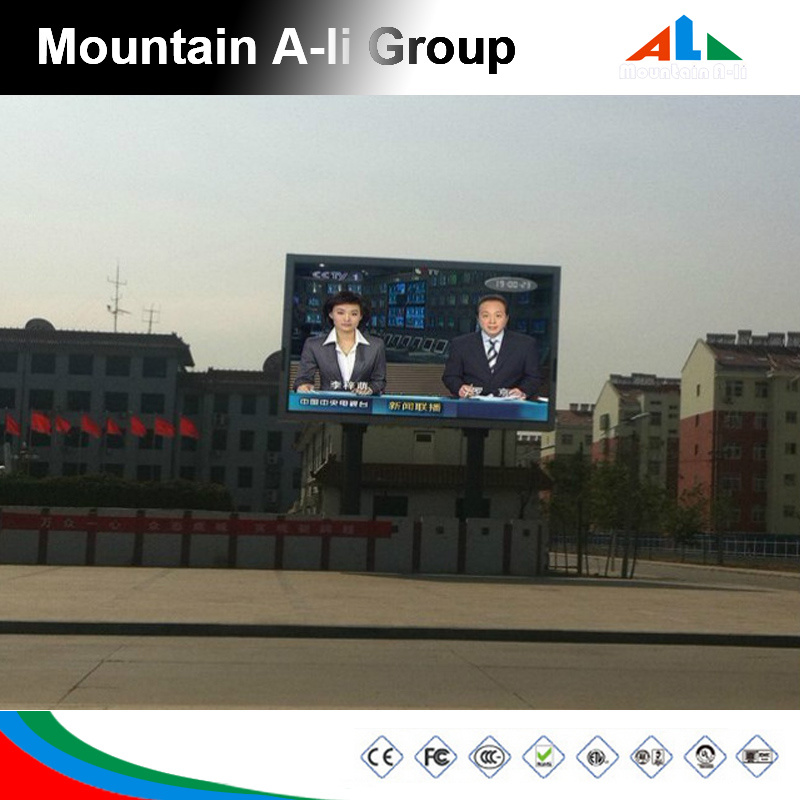

Synchronization Control P10 Outdoor Video LED Display

Name: Synchronization Control P10 Outdoor Video LED Display
Brand: china-manufacturer-directory.com
SKU: 747468165
Availability: InStock
Rating: 4.8 (119 reviews)

Supplier:	Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd.
Price:	US $ 600-700/Square Meter
Min Order:	1/Square Meter
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	Outdoor p10 led display
Markets:	South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Module Size:	160X160mm
Brightness:	>7500CD/M2
Cabinet Size:	960X960mm
Working Voltage:	220VAC
Optimal Viewing Distance:	10-50m
Optimal Viewing Angle:	160°(W) 120°(H)
Control Mode:	Synchronization with PC
Cabinet Resolution:	96X96dots
Lifespan:	100,000hours
Warranty:	2 Years
Tube Chip Color:	Full Color
IP Rating:	IP65
Pixel Pitch:	10mm
Pixel Configuration:	1R, 1G, 1B
Display Function:	Video Display
Average Power Consumption:	350W / m²
Pixel Density:	10000 dot / m²
Scanning Mode:	1/4 Scan
Display Type:	LED Video Display
Application:	Advertising
Certification:	FCC,EMC,IP65

Product Description

Synchronization control p10 outdoor video led display

1. Features:

1. High brightness. Use DIP LEDs, keeps the display content visible even if facing the strong sunshine directly.

2. With Anti-UV ray mask, the color of the mask would never change even if under exposure of UV ray.

3. Waterproof design, completely outdoor use.

4. Easy for assembling and connection with the connector added.

5. High color uniformity and clear image can bring you a vivid audio visual effect.

6. Both front and rear access are available.

7. Good LED Chips, with large viewing angle, lowe power consumption and good color uniformity.

8. Easy for maintenance.

9. Good quality raw material, accurate technique and careful inspection insures the high quality of led display.

10. Different shape and size can be made according to your requirement.

Module:P10		LED Type	DIP346
Pixel Pitch	10mm	Refresh frequency	1,200Hz
Module Size	160x160mm	View Angle	160°(W) 120°(H)
Module resolution	16x16pixel	Working Environment	Temp:-20°C~60°C, Humidity:10%~90%
Dot density	10,000pixel/sq. m	Working Voltage	AC:100V~120V AC:220~240V
Pixel configuration	1R1G1B	Lifetime	100,000Hours
The best view distance	10-100M	Gray Scale	14bit/color
Cabinet dimension	960mmx960mm(Optional)	Color Display	1.07Billion
Cabinet resolution	96X96	Brightness	≥7500nits
Cabinet weight	60KG/sq. m	MITBF	0.00001
Drive mode	Constant current,1/4 Scan	IP	IP65
Max Power Consumption	850W/sq. m	Warranty	2 years
LED Parameter	R:d(625-630nm) R:IV(400-450mcd)	G:d(522.5-525nm) G:IV(1800-2200mcd)	B:d(467.5-470nm) B:IV(350-400mcd)
Image adjustment	Brightness, contrast, tone, color range etc
Brightness uniformity	Ratio of min pixel brightness /max pixel<0.9(When each color reaches its highest brightness)
Effective control distance	Cat 5<100M / Multi-mode fiber:<500M / Single-mode fiber<20Km
Color Temperature/contrast	Brightness and contrast of red, green and blue can be adjusted by software,100 scales are available, color temperature is adjustable
Input signal	RF,S-VIDEO,RGB,RGBTV,YUT,YC,COMPISITION
Control system	Sending card+Receiving card+Hub card+DVI Card+PCTV Non-liner card+Muti-funcational card(Optional)+Video processor(Optional)+ Fiber Transmitter(Optional)

Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.

Features:

1) With good lightening accordance and no mosaic

2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment

3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced

4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment

5) Uses real pixels rather than virtual pixels, better viewing effect

Applications:

LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
